Description
The Verus Engineering Full Brake Cooling Kit is a complete brake ducting solution for the Subaru WRX/STI VA, designed to maximize brake cooling efficiency while maintaining an OEM-style installation. The system uses the factory fog light openings as high-pressure air inlets and routes airflow through a short, efficient path directly toward the center of the brake rotor.
Verus Engineering designed the system using in-house vehicle scan data, resulting in components with a near-OEM fit and finish. The ducting layout emphasizes the shortest practical airflow path to maximize cooling efficiency while minimizing unnecessary bends and restrictions.
The kit includes everything required for installation, including pre-cut high-temperature brake hoses, stainless hose clamps, fog light ducts, fender ducts, backing plates, brackets, and mounting hardware.
By directing ambient air from the high-pressure region of the front bumper into the center of the brake rotor, the system helps maintain more appropriate brake temperatures during aggressive driving, competition, and track use.
Fitment
Subaru WRX / WRX STI VA
- Subaru WRX VA
- Subaru WRX STI VA
- Vehicles equipped with OEM fog light openings
- Vehicles without OEM fog light bezels require Subaru part numbers 57731VA390 and 57731VA380 for complete compatibility, including 2018 models
- 2018+ models equipped with 6-piston calipers require trimming of the brake backing plate
- Australian-market models require Subaru part number 86631VA000 for complete compatibility, which is the USDM windshield washer fluid reservoir

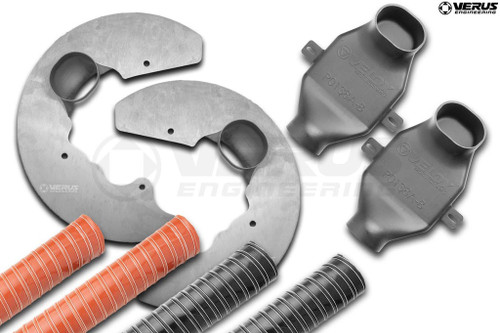

What's Included
- 2 × Stainless Steel Backing Plates with 316L 3D-Printed Stainless Steel Ducts Riveted On – LH and RH
- 2 × 2.5-inch Pre-Cut High-Temperature Silicone Brake Hoses
- 2 × Fender Pancake Ducts
- 2 × Fender Pancake Duct Brackets
- 2 × 3.0-inch Pre-Cut Neoprene Brake Hoses
- 4 × 3.0-inch Stainless Steel Hose Clamps
- 4 × 2.5-inch Stainless Steel Hose Clamps
- 2 × Fog Light Ducts
- 1 × Complete Hardware Kit with all necessary installation components
Key Features
- Direct Rotor Cooling: Directs airflow into the center of the brake rotor to improve cooling efficiency.
- 316L Stainless Steel Ducting: 3D-printed stainless steel ducts integrated into the backing plates help direct additional airflow toward the rotor.
- OEM-Style Installation: Designed around the factory vehicle layout for a clean, integrated installation.
- Short Airflow Routing: Uses a short and efficient duct path to maximize cooling performance.
- High-Pressure Air Source: Pulls ambient air from the high-pressure region at the front bumper.
- Complete Brake Cooling System: Includes backing plates, ducts, hoses, clamps, brackets, and hardware.
- Pre-Cut Hoses: Supplied hoses are pre-cut for a straightforward installation.
- Near-OEM Fit and Finish: Developed using in-house scan data for accurate component fitment.
- Track-Focused Cooling: Designed to help maintain appropriate brake temperatures during demanding driving and track use.
- Minimal Installation Requirements: Designed to install within a few hours using basic hand tools and general mechanical knowledge.
Specifications
- Application: Subaru WRX / WRX STI VA
- Backing Plate: Stainless steel
- Backing Plate Duct: 316L 3D-printed stainless steel
- Air Duct: Dry carbon
- Fender Duct: Hard plastic pancake duct
- Fog Light Duct: Hard plastic
- Brake Hose Sizes: 3.0-inch and 2.5-inch
- 3.0-inch Hose: Neoprene
- 2.5-inch Hose: High-temperature silicone
- Hose Clamps: Stainless steel
- Hardware: Included
- Manufacturing: Made in the USA
Aerodynamic & Thermal Science
Verus Engineering validated the brake cooling system through tuft testing and thermal imaging, demonstrating improved brake cooling performance even when used with OEM rotors.
Factory rotors typically have relatively small internal cooling vanes compared with larger aftermarket big-brake systems. Smaller vanes can limit airflow through the rotor and reduce cooling efficiency. The Verus Engineering brake cooling system addresses this limitation by directing additional ambient airflow directly into the center of the rotor.
Testing showed that the rotors remained cooler immediately after braking and also maintained lower temperatures after a short period of driving without brake application.
The effectiveness of the system also increases with vehicle speed. Because the kit uses frontal ambient air and directs it toward the center of the rotor, higher vehicle speeds generate greater airflow and pressure through the cooling system.
Track Performance
Effective brake cooling is particularly important during repeated high-speed braking, where excessive temperatures can contribute to brake fade, rotor damage, accelerated pad wear, and brake fluid overheating.
Verus Engineering has received customer reports from track users indicating:
- Reduced brake fade
- Reduced rotor cracking
- Improved brake pad wear
- Reduced brake fluid boiling
These results make the Full Brake Cooling Kit a strong upgrade for enthusiasts looking to improve brake temperature control during track days, competition, and other demanding driving conditions.
Installation
The Verus Engineering Full Brake Cooling Kit is designed around an OEM-style installation and uses a short routing path between the front bumper inlet and brake assembly.
The kit includes pre-cut hoses and all required brackets, clamps, ducts, backing plates, and hardware. Installation is designed to take a few hours using minimal hand tools and general mechanical knowledge.
Important Fitment Notes:
- Vehicles without OEM fog light bezels require Subaru part numbers 57731VA390 and 57731VA380.
- 2018+ models with 6-piston calipers require trimming of the backing plate.
- Australian-market vehicles require Subaru part number 86631VA000 for complete compatibility.
