Description

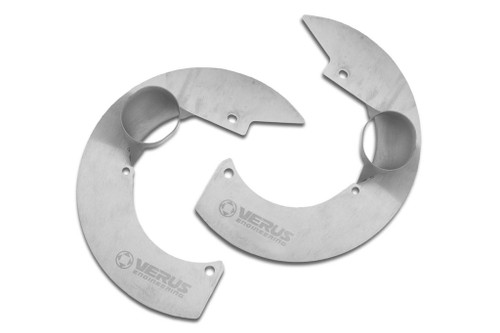

The Verus Engineering Backing Plate Kit provides a strong foundation for building an effective brake cooling system on the Subaru BRZ, Scion FR-S, and Toyota GT86. Each backing plate combines a durable stainless steel backing plate with a properly formed and positioned dry carbon air duct designed to direct cool air directly into the center of the brake rotor.
By connecting a 2.5-inch silicone brake duct hose to the backing plates and routing cool air through the rotors, the system can help increase braking endurance, extend component life, improve resistance to brake fade, and reduce the risk of brake fluid boiling during demanding driving.
The backing plates are designed to work with both OEM and aftermarket big brake kits, making them an excellent upgrade for drivers looking to maximize brake performance on the street or track.
Stainless steel hardware and hard-anodized aluminum spacers provide excellent corrosion resistance and help ensure long-term durability.
Fitment
Subaru BRZ – ZC6
Scion FR-S – ZN6
Toyota GT86 – ZN6
Compatible with OEM and aftermarket big brake kits.
Clearance Note: In certain severe applications, the backing plate may require trimming. For example, the AP Sprint Kit with Whiteline Roll Center Adjusters can have less clearance between the lower control arm and rotor than the thickness of the backing plate. The AP Sprint BBK fits without trimming when used with factory ball joints.
What's Included
- 1 × Right-Hand Backing Plate with Carbon Duct
- 1 × Left-Hand Backing Plate with Carbon Duct
- 1 × Hardware Kit with all necessary installation hardware
Key Features
- Direct Rotor Cooling: Directs cool air into the center of the brake rotor to improve brake cooling.
- Stainless Steel Backing Plate: Durable stainless construction helps maintain airflow and withstand demanding track conditions.
- Dry Carbon Air Duct: Properly formed and positioned to efficiently direct air into the rotor center.
- OEM-Type Installation: Designed for a straightforward installation without extensive modifications.
- Minimal Installation Requirements: Can be installed in a few hours using basic hand tools and mechanical knowledge.
- Short Air Routing: Short duct routing helps maximize brake cooling efficiency.
- High-Pressure Air Source: Designed to pull air from the high-pressure zone at the front bumper.
- Big Brake Compatibility: Designed to work with OEM and aftermarket big brake systems.
- Expandable Brake Cooling System: Provides a foundation for connecting a 2.5-inch brake duct hose and building a complete brake cooling setup.
Specifications
- Backing Plate: Stainless steel
- Air Duct: Dry carbon
- Fender Ducts: Hard plastic pancake ducts
- Inlet Duct: 3D-printed carbon nylon
- Brake Duct Hose: Pre-cut 3-inch and 2.5-inch hose
- Hardware: Stainless steel hardware
- Spacers: Hard-anodized aluminum
- Installation: OEM-type
- Manufacturing: Made in the USA
Brake Cooling Performance
The Verus Engineering Backing Plate Kit is designed to channel high-pressure air from the front of the vehicle directly toward the center of the brake rotor. Supplying cooler air to the rotor can help improve brake endurance during repeated heavy braking while reducing heat-related brake fade and the likelihood of brake fluid boiling.
When paired with an appropriate 2.5-inch silicone brake duct hose, the backing plates provide a strong starting point for a complete dedicated brake cooling system.
Installation
The backing plates are designed for an OEM-style installation and can be installed in a few hours with minimal hand tools and basic mechanical knowledge. The included hardware is designed to provide a straightforward installation.
Before installation, verify clearance between the backing plate, rotor, and suspension components, particularly when using aftermarket brake kits or suspension components that alter factory geometry.
