Description

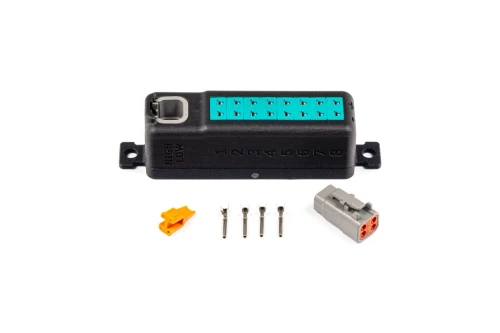

The CANchecked TCC08 Thermocouple CAN Converter is a professional temperature monitoring module designed to measure and transmit data from up to eight Type-K thermocouples directly over a CAN bus network.
Manufactured in Germany, the TCC08 is designed for motorsport, performance, and advanced vehicle monitoring applications where accurate and reliable temperature data is required. Instead of converting thermocouple signals into traditional analog voltage outputs, the TCC08 transmits temperature measurements digitally over the CAN bus for straightforward integration with compatible ECUs, displays, data loggers, and other CAN-enabled devices.
The TCC08 supports a temperature measurement range of 0°C to 1250°C (32°F to 2282°F) and features cold-junction compensation and high-resolution 14-bit measurement for precise temperature monitoring.
An integrated Wi-Fi interface provides wireless access to configuration, firmware updates, live temperature monitoring, and diagnostic functions. CAN communication settings can be adjusted from a compatible smartphone, tablet, or computer.
Fitment
Universal Application
The CANchecked TCC08 is designed for a wide range of vehicle and motorsport applications, including:
- Turbocharged and naturally aspirated performance vehicles
- Race and track vehicles
- Endurance racing applications
- Custom vehicle builds
- Motorsport data acquisition systems
- Vehicles equipped with compatible aftermarket ECUs
- CANchecked displays and CAN bus devices
The eight thermocouple channels can be used for applications such as exhaust gas temperature, coolant temperature, oil temperature, intercooler temperature, and cylinder head temperature monitoring.
Compatibility depends on the connected ECU, CAN bus system, communication protocol, and thermocouple configuration.
What's Included
- 1 × CANchecked TCC08 Type-K Thermocouple Converter Module
- 1 × Integrated DTM 4-Pin CAN Bus Connection
Key Features
- Eight Thermocouple Channels: Supports up to eight Type-K thermocouples simultaneously.
- Direct CAN Bus Communication: Transmits temperature data digitally over the CAN bus.
- 0–1250°C Measurement Range: Suitable for high-temperature automotive and motorsport applications.
- Cold-Junction Compensation: Provides compensated thermocouple temperature measurements.
- 14-Bit Measurement Resolution: Provides high-resolution temperature data acquisition.
- Integrated Wi-Fi: Allows wireless configuration, monitoring, firmware updates, and diagnostic functions.
- CAN 2.0A/B Compatible: Supports standard CAN bus communication.
- Configurable CAN Speeds: CAN communication speed can be configured from 125 kbps to 1 Mbps.
- Wide ECU Compatibility: Designed for integration with a broad range of aftermarket ECUs and CAN-enabled devices.
- Multiple Temperature Applications: Suitable for EGT, coolant, oil, intercooler, and cylinder head temperature monitoring.
- Compact Motorsport Design: Provides eight thermocouple channels in a compact module.
- DTM Connection: Uses an integrated 4-pin DTM-style CAN bus connection.
- Made in Germany: Manufactured in Germany using advanced engineering processes.
Specifications
- Brand: CANchecked
- Product: TCC08 Thermocouple CAN Converter
- Product Type: 8-Channel Thermocouple CAN Converter
- Application: Universal
- Thermocouple Type: Type-K
- Thermocouple Channels: Up to 8
- Temperature Range: 0°C to 1250°C / 32°F to 2282°F
- Measurement Resolution: 14-bit
- Cold-Junction Compensation: Yes
- CAN Standard: CAN 2.0A/B
- CAN Speed: 125 kbps to 1 Mbps
- Connectivity: CAN Bus / Wi-Fi
- CAN Connector: Integrated DTM 4-Pin
- Manufacturing Location: Germany
Thermocouple Temperature Monitoring
The TCC08 is designed to collect temperature data from up to eight Type-K thermocouples and transmit the measurements directly through the vehicle's CAN bus network.
The eight-channel configuration allows multiple temperature parameters to be monitored simultaneously. Depending on the vehicle and system configuration, the channels can be used for exhaust gas temperature (EGT), coolant, oil, intercooler, cylinder head, and other critical temperature measurements.
With a measurement range extending to 1250°C, the TCC08 is suitable for high-temperature applications commonly encountered in performance and motorsport environments.
CAN Bus Integration
The TCC08 communicates temperature measurements digitally through the CAN bus, eliminating the need to rely on conventional analog voltage outputs for thermocouple data.
The module supports CAN 2.0A/B and configurable CAN bus speeds from 125 kbps to 1 Mbps. This allows the TCC08 to integrate with compatible aftermarket ECUs, displays, data loggers, and other CAN-enabled equipment.
Supported platforms include systems from manufacturers such as Emtron, MaxxECU, MoTeC, Haltech, ECUMaster, and LinkECU, with compatibility dependent on the specific ECU and CAN configuration.
Wi-Fi Configuration
The integrated Wi-Fi interface provides convenient wireless access to the TCC08 configuration and monitoring functions.
Users can connect to the module from a compatible smartphone, tablet, or computer to configure CAN communication settings, adjust supported CAN modes, perform firmware updates, monitor live temperature data, and access diagnostic functions.
Installation
The CANchecked TCC08 is designed for integration into compatible CAN bus systems using its integrated 4-pin DTM CAN bus connection.
Connect the module to the vehicle's CAN bus network and connect the required Type-K thermocouples to the available measurement channels.
For best results, installation and CAN bus configuration should be performed by a qualified technician familiar with automotive CAN systems and thermocouple wiring.
