Description
The ACT Mod-Twin 225 HD Sprung Race Clutch Kit (T1RS-B01) is engineered for high-powered BMW AWD applications requiring exceptional torque capacity, aggressive engagement, and reliable performance under demanding racing conditions. This twin-disc clutch combines dual ceramic friction surfaces with an ultra-durable sprung Mono-Drive hub assembly to deliver high friction capacity while helping reduce driveline shock and extend input shaft life.
The Mod-Twin's diaphragm spring undergoes ACT's exclusive four-stage heat-treating process for consistent pedal effort. Its steel-backed, puck-style ceramic friction plates provide a high coefficient of friction, excellent heat capacity, and long service life. The sprung Mono-Drive hub transfers torque efficiently while helping absorb torsional vibration.

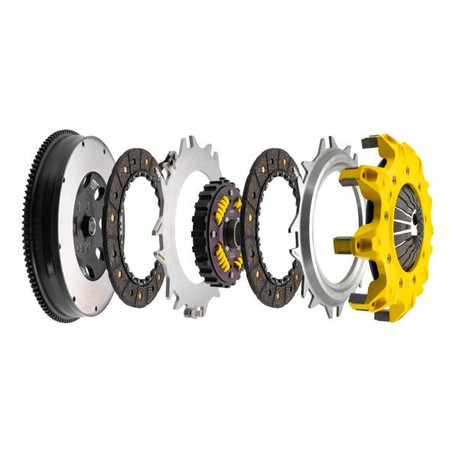

The kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool, and pilot bearing when required. Mod-Twin components are fully rebuildable, and most components can be purchased separately.
With a rated torque capacity of 1,060 ft-lbs., this ACT Heavy Duty twin-disc clutch provides a substantial upgrade over OE capacity and is designed for Drag, Road, and Rally Racing applications.
Features and Benefits
- 1,060 ft-lbs. torque capacity
- 246% torque capacity over OE
- Twin-disc 225 mm clutch design
- High-performance ceramic friction material
- Sprung Mono-Drive hub assembly
- Helps reduce driveline shock from torsional vibration
- High friction coefficient for aggressive performance
- Excellent heat capacity for demanding applications
- CNC-machined and dynamically balanced flywheel
- Exclusive four-stage heat-treated diaphragm spring
- Forged aluminum cover
- Hardened wear points for long service life
- Lightweight modular design
- Fully rebuildable clutch assembly
- Components can be ordered separately
- 100% clamp-load tested
- Dynamically balanced
- SFI certified
- Designed for high-powered AWD applications
Specifications
| Specification | Details |
|---|---|
| Brand | ACT |
| Product | Mod-Twin 225 HD Sprung Race Clutch Kit |
| Part Number | T1RS-B01 |
| Clutch Type | Twin Disc |
| Disc Diameter | 225 mm / 8.8 in |
| Disc Material | Ceramic |
| Hub Type | Sprung Mono-Drive |
| Pressure Plate Type | Heavy Duty |
| Torque Capacity | 1,060 ft-lbs. |
| Torque Capacity Over OE | 246% |
| Input Shaft Diameter | 1.375 in. |
| Product Weight | 33.1 lbs. |
| Recommended Use | Drag, Road, or Rally Racing |
| SFI Rating | 1.2 |
| Warranty | 12 Months |
| UPC | 00842385031015 |
Feel
Provides predictable, aggressive engagement with light pedal effort and quick shifting. Depending on the vehicle and transmission combination, some start-off judder and mild to moderate transmission gear noise may be present.
Life
The forged aluminum cover, durable Mono-Drive hub, specially treated diaphragm, premium friction materials, and hardened wear points are designed to provide long service life under demanding conditions.
Quality
ACT combines robust construction, carefully selected materials, strategic engineering features, and close manufacturing tolerances to provide high heat tolerance and dependable performance.
Recommended Use
Drag Racing, Road Racing, or Rally Racing
ACT Mod-Twin Difference
ACT's Mod-Twin design addresses common compromises associated with twin-disc clutch systems by combining high torque capacity with a durable, serviceable, modular construction. Each clutch is 100% clamp-load tested, balanced, and SFI certified.
Fitment
This clutch kit is listed for the following BMW applications equipped with the 3.0L inline-six turbocharged engine:
BMW 135i
- 2009-2013 BMW 135i Base
- 2009-2013 BMW 135i E82 [Euro]
- 2009-2013 BMW 135i E88 [Euro]
BMW 335i / 335xi
- 2007-2009 BMW 335i E90 [Euro]
- 2007-2009 BMW 335i E92 [Euro]
- 2007-2009 BMW 335i E93 [Euro]
- 2007-2009 BMW 335xi E90 [Euro]
- 2007-2009 BMW 335xi E92 [Euro]
- 2007-2013 BMW 335i Base
- 2007 BMW 335xi Base
- 2009-2013 BMW 335i xDrive Base
- 2011-2013 BMW 335is Base
- 2011-2013 BMW 335i E90 [Euro]
- 2011-2013 BMW 335i E92 [Euro]
- 2011-2013 BMW 335i E93 [Euro]
- 2011-2013 BMW 335xi E90 [Euro]
- 2011-2013 BMW 335xi E92 [Euro]
BMW 535i / 535xi
- 2008-2013 BMW 535i Base
- 2008 BMW 535xi Base
- 2009-2010 BMW 535i xDrive Base
- 2011-2013 BMW 535i Base
- 2008 BMW 535xi Base
- 2009-2010 BMW 535i xDrive Base
- 2011-2016 BMW 535i F10 [Euro]
BMW 435i / 435iX
- 2014-2016 BMW 435i Base
- 2014-2016 BMW 435i xDrive Base
- 2014-2016 BMW 435i F32 [Euro]
- 2014-2016 BMW 435iX F32 [Euro]
BMW 335i / 335iX F30
- 2012-2015 BMW 335i F30 [Euro]
- 2012-2015 BMW 335iX F30 [Euro]
BMW M235i
- 2014-2016 BMW M235i Base
- 2014-2016 BMW M235i F22 [Euro]
- 2014-2016 BMW M235i F23 [Euro]
BMW Z4 35i
- 2009-2016 BMW Z4 sDrive35i
- 2009-2016 BMW Z4 35i E89 [Euro]
Note: Fitment above is based on the supplied application data. Verify transmission, drivetrain, engine configuration, and original clutch/flywheel specifications before installation.
