Description
The ACT Mod-Twin 225 HD Rigid Race Clutch Kit is a high-performance twin-disc clutch system engineered for BMW 3.0L turbocharged N54 and N55 applications. Designed for demanding performance builds, this clutch tackles aggressive launches and rapid shifting by combining dual ceramic friction surfaces with a rigid Mono-Drive chrome-moly hub in a fully modular design.
The T1R-B05 Mod-Twin 225 HD Rigid Race Kit delivers a 1060 ft/lbs. torque capacity, representing a 246% increase over OE capacity. Its ceramic puck-style friction plates provide a high coefficient of friction, excellent heat capacity, and long service life under demanding racing conditions.
The rigid Mono-Drive hub is manufactured from chrome-moly material and heat treated for increased strength and durability. Its continuous spline design helps extend input shaft life, while the lightweight rigid construction promotes quicker shifting and consistent power transfer.
Each diaphragm spring undergoes ACT's exclusive four-stage heat-treating process to provide consistent clamp load and relatively light pedal effort for a race-oriented clutch. The system is designed to handle high-power applications while maintaining predictable aggressive engagement.

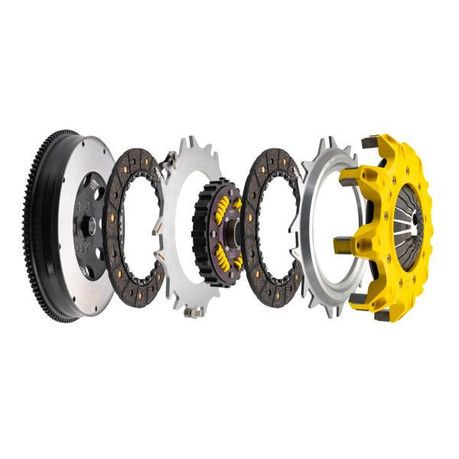

The kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool, and pilot bearing when required.
The Mod-Twin design is fully rebuildable, allowing most individual components to be ordered separately for long-term serviceability.
Features and Benefits
- Twin-disc 225 mm clutch design
- 1060 ft/lbs. torque capacity
- 246% greater torque capacity than OE
- Ceramic puck-style friction material
- Heavy Duty pressure plate
- Rigid Mono-Drive chrome-moly hub
- Heat-treated hub for strength and durability
- Continuous spline hub design
- Lightweight rigid construction for quicker shifting
- High heat capacity for demanding performance applications
- Four-stage heat-treated diaphragm spring
- Predictable aggressive engagement
- Light pedal effort for a race-oriented clutch
- CNC-machined and dynamically balanced flywheel
- Patented Monoloc Collar
- 100% clamp-load tested
- Dynamically balanced
- SFI certified
- Fully rebuildable and serviceable design
- Suitable for drag, road, and rally racing
Driving Feel
The ACT Mod-Twin 225 HD Rigid Race clutch provides predictable aggressive engagement, light pedal effort, and quick shifting. Due to the rigid hub and race-oriented ceramic friction material, some start-off judder and moderate to increased transmission gear noise may occur.
Durability
The forged aluminum cover, rigid Mono-Drive hub, specially treated diaphragm spring, premium ceramic friction materials, and hardened wear points are designed to provide long service life under demanding performance and racing conditions.
Recommended Use
- Drag Racing
- Road Racing
- Rally Racing
- High-Powered AWD Applications
- High-Performance BMW Builds
Specifications
| Specification | Details |
|---|---|
| Item Description | ACT Mod-Twin 225 Heavy Duty Rigid Race Clutch Kit |
| ACT Part Number | T1R-B05 |
| Product Weight | 33.1 lbs. |
| Torque Capacity | 1060 ft/lbs. |
| Torque Capacity Over OE | 246% |
| Disc Material | Ceramic |
| Clutch Disc Diameter | 8.8 inches |
| Clutch Disc Diameter | 225 mm |
| Input Shaft Diameter | 1.375 inches |
| Pressure Plate Type | Heavy Duty |
| Warranty | 12 Months |
| SFI | 1.2 |
| UPC | 00842385031152 |
Fitment
This ACT Mod-Twin 225 HD Rigid Race Clutch Kit fits the following BMW 3.0L turbocharged N54/N55 applications:
BMW N54 Applications
- 2007 BMW 335i E90 — 3.0L I6 Turbo
- 2007 BMW 335i E92 — 3.0L I6 Turbo
- 2007 BMW 335i E93 — 3.0L I6 Turbo
- 2007 BMW 335xi E90 — 3.0L I6 Turbo
- 2007 BMW 335xi E92 — 3.0L I6 Turbo
- 2008 BMW 135i E82 — 3.0L I6 Turbo
- 2008 BMW 135i E88 — 3.0L I6 Turbo
- 2008 BMW 335i E90 — 3.0L I6 Turbo
- 2008 BMW 335i E92 — 3.0L I6 Turbo
- 2008 BMW 335i E93 — 3.0L I6 Turbo
- 2008 BMW 335xi E90 — 3.0L I6 Turbo
- 2008 BMW 335xi E92 — 3.0L I6 Turbo
- 2008 BMW 535i — 3.0L I6 Turbo
- 2008 BMW 535xi — 3.0L I6 Turbo
- 2009 BMW 135i E82 — 3.0L I6 Turbo
- 2009 BMW 135i E88 — 3.0L I6 Turbo
- 2009 BMW 335i E90 — 3.0L I6 Turbo
- 2009 BMW 335i E92 — 3.0L I6 Turbo
- 2009 BMW 335i E93 — 3.0L I6 Turbo
- 2009 BMW 335xi E90 — 3.0L I6 Turbo
- 2009 BMW 335xi E92 — 3.0L I6 Turbo
BMW N55 Applications
- 2009–2013 BMW 135i — 3.0L I6 Turbo
- 2009–2013 BMW 335i — 3.0L I6 Turbo
- 2009–2013 BMW 335i xDrive — 3.0L I6 Turbo
- 2010–2013 BMW 535i — 3.0L I6 Turbo
- 2010–2013 BMW 535i xDrive — 3.0L I6 Turbo
- 2009–2016 BMW Z4 sDrive35i / 35i — 3.0L I6 Turbo
- 2011–2013 BMW 335is — 3.0L I6 Turbo
- 2014–2015 BMW 335i — 3.0L I6 Turbo
- 2014–2015 BMW 335i xDrive — 3.0L I6 Turbo
- 2014–2016 BMW 435i — 3.0L I6 Turbo
- 2014–2016 BMW 435i xDrive — 3.0L I6 Turbo
- 2014–2016 BMW M235i — 3.0L I6 Turbo
- 2014–2016 BMW 535i — 3.0L I6 Turbo
Important: Fitment should be verified against the vehicle's exact year, model, engine, transmission, and drivetrain before ordering.
