Description

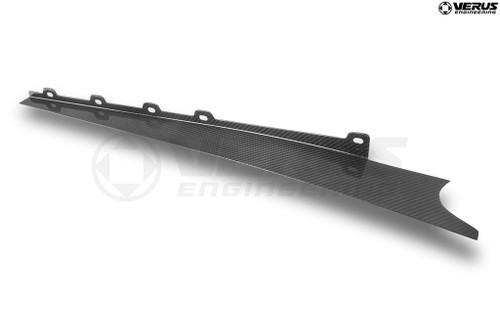

The Verus Engineering Rear Diffuser Strakes for the R35 Nissan GT-R are a functional aerodynamic upgrade designed to improve the performance of the factory rear diffuser while giving the rear of the GT-R a more aggressive motorsport-inspired appearance.
The R35 Nissan GT-R already features a substantial factory rear diffuser, but its aerodynamic potential can be further improved through the addition of strategically designed vertical fences, commonly known as diffuser strakes. The Verus Engineering strakes are engineered to control airflow exiting the rear diffuser, helping increase downforce, reduce lift, and improve overall aerodynamic efficiency.
Using advanced aerodynamic analysis during development, Verus Engineering optimized the strake design to extract additional performance from the OEM diffuser. The strakes help control the volume and direction of airflow passing through the diffuser while reducing the disruption caused by the horseshoe-shaped vortices generated around the rear wheels.
By helping prevent these vortices from interfering with diffuser airflow, the strakes allow the factory diffuser to operate more efficiently. The resulting aerodynamic improvements can increase rear-end grip and stability at speed while maintaining a favorable lift-to-drag ratio.
The aggressive strake design also gives the R35 GT-R a more purposeful rear appearance without requiring replacement of the factory diffuser. The components are manufactured entirely from 1.6mm pre-preg 2x2 twill carbon fiber, providing a lightweight and strong construction with a polished carbon finish and no gel coat.
Installation is designed to be simple and non-invasive. A supplied vinyl cut template helps accurately position the strakes, while the included stainless-steel hardware provides secure mounting to the factory diffuser.
Fitment
2008+ Nissan GT-R R35
Designed specifically for the R35-generation Nissan GT-R factory rear diffuser.
Key Features
- Improves the aerodynamic efficiency of the OEM rear diffuser
- Increases rear downforce
- Reduces rear lift
- Helps increase tire grip at speed
- Reduces aerodynamic drag
- Improves overall lift-to-drag ratio
- Controls airflow exiting the factory diffuser
- Helps prevent rear-wheel horseshoe vortices from disrupting diffuser airflow
- Enhances diffuser flow attachment
- Optimized through CFD analysis
- Aggressive motorsport-inspired strake design
- 100% carbon fiber construction
- Lightweight pre-preg carbon fiber construction
- Simple, non-invasive bolt-on installation
- Supplied installation template for accurate positioning
What's Included
- 1 Outside Strake, Left-Hand
- 1 Inside Strake, Left-Hand
- 1 Inside Strake, Right-Hand
- 1 Outside Strake, Right-Hand
- 1 Vinyl Drill/Cut Template
- 1 Hardware Kit with all necessary installation hardware
Specifications
- Construction: 100% carbon fiber
- Material: 1.6mm pre-preg 2x2 twill carbon fiber
- Finish: Polished carbon fiber with no gel coat
- Design: CFD optimized
- Mounting: Bolt-on installation
- Installation Aid: Vinyl cut template
- Hardware: Stainless steel
Aerodynamic Performance
The Verus Engineering Rear Diffuser Strakes are designed to improve the aerodynamic performance of the R35 GT-R's factory diffuser by controlling the airflow passing through the diffuser tunnels.
The strakes act as vertical aerodynamic fences that help isolate and organize airflow. They also help block the horseshoe vortices generated around the rear wheels from interfering with the diffuser's airflow. Controlling these vortices allows the diffuser to maintain cleaner and more effective airflow through its exit area.
The strakes also help control the volume of air flowing through the diffuser and promote important vortices that encourage attached diffuser flow. This improves the efficiency of the factory diffuser and allows it to generate more useful aerodynamic load.
The result is increased rear downforce, reduced lift, improved tire grip at speed, and improved aerodynamic efficiency without requiring a complete replacement of the OEM diffuser.
Design & Construction
Each Verus Engineering diffuser strake is manufactured from 1.6mm pre-preg 2x2 twill carbon fiber. The polished carbon finish provides a high-quality appearance while maintaining the lightweight construction expected from a functional motorsport aerodynamic component.
The aggressive geometry was developed to combine aerodynamic function with visual impact, giving the R35 GT-R a more distinctive and track-focused rear appearance.
Installation
The Rear Diffuser Strakes are designed for a straightforward, non-invasive bolt-on installation. A supplied vinyl cut template assists with accurately locating the mounting positions on the factory diffuser, while the included stainless hardware securely attaches the strakes.
Professional installation is recommended to ensure accurate positioning and proper hardware installation, particularly when the vehicle is used for high-speed or track driving.
