Description
The ACT T2SS-B01 Mod-Twin 225 XT Sprung Street Clutch Kit is engineered for high-powered AWD street cars requiring exceptional torque capacity, smooth street manners, durability, and consistent engagement. This Extreme-duty twin-disc clutch combines twice the organic friction surfaces with an ultra-durable spring-centered Mono-Drive hub in a completely modular design.
The sprung Mono-Drive hub helps reduce driveline shock caused by torsional vibration while extending input shaft life. Each diaphragm spring undergoes an exclusive four-stage heat-treating process to provide consistent, light pedal effort and dependable performance. Steel-backed friction plates with high-quality organic friction materials provide a stable friction coefficient, good heat capacity, and long clutch life.
The friction plates uniformly transfer torque to the Mono-Drive sprung hub assembly. The result is a high-capacity clutch system designed to deliver excellent pedal feel, engagement quality, durability, and performance for demanding street and street/strip applications.

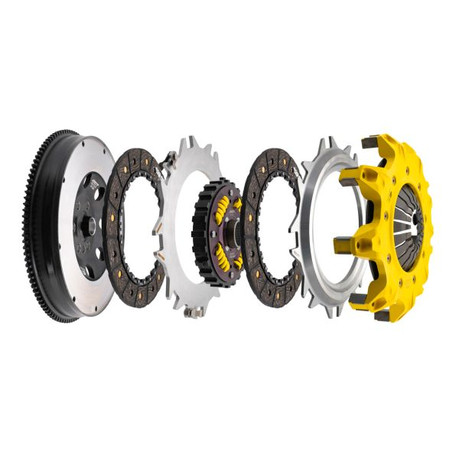

The ACT Mod-Twin 225 XT Sprung Street Kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool, and pilot bearing if needed.
Mod-Twin clutches are fully rebuildable, and most individual components can be ordered separately, providing long-term serviceability and making this clutch suitable for high-powered applications where rebuildability and component replacement are important.
Key Features
- 850 ft/lbs. torque capacity
- 177% torque capacity over OE
- 225 mm twin-disc clutch design
- Extreme-duty Xtreme pressure plate
- Organic friction material
- Sprung Mono-Drive hub assembly
- Twice the organic friction surfaces
- CNC-machined and dynamically balanced flywheel
- Steel-backed friction plates
- High-quality organic friction material
- Exclusive four-stage heat-treated diaphragm spring
- Excellent heat capacity and friction stability
- Reduced driveline shock from torsional vibration
- Extended input shaft life
- Soft, progressive engagement
- Light pedal effort
- Smooth shifting
- Moderate to mild transmission gear noise
- Designed for street and street/strip use
- Fully rebuildable modular design
- Customer-serviceable components
- 100% clamp-load tested
- Dynamically balanced
- SFI certified
Performance Characteristics
Feel: Soft progressive engagement, light pedal effort, smooth shifting with mild to moderate transmission gear noise.
Life: The forged aluminum cover, Mono-Drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions.
Quality: Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances.
Recommended Use: Street or Street/Strip.
ACT Difference: Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin-disc clutches, resulting in an ultra-durable, customer-serviceable, long-lasting clutch with very high torque capacity. All ACT Mod-Twin clutches are 100% clamp-load tested, balanced, and SFI certified.
Specifications
| Specification | Details |
|---|---|
| Item Description | ACT Mod-Twin 225 Extreme Sprung Street Clutch Kit |
| ACT Part Number | T2SS-B01 |
| Product Weight | 33.1 lbs. |
| Torque Capacity | 850 ft/lbs. |
| Torque Capacity Over OE | 177% |
| Disc Material | Organic |
| Clutch Disc Diameter | 8.8 inches |
| Clutch Disc Diameter | 225 mm |
| Input Shaft Diameter | 1.375 inches |
| Pressure Plate Type | Xtreme |
| Warranty | 12 Months |
| SFI | 1.2 |
| UPC | 00842385031008 |
Fitment
This ACT Mod-Twin 225 XT Sprung Street Clutch Kit fits the following BMW 3.0L turbocharged N54/N55 applications. Fitment includes the listed North American and European-market BMW models, including RWD, xDrive/AWD, and Euro-spec applications where specifically listed.
North American Fitment
- 2009 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 535i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 535i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 535i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW Z4 sDrive35i — 3.0 L6 GAS FI 2979cc | DOHC
- 2010 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2010 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2010 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2010 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2010 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2010 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2010 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2010 BMW 535i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2010 BMW 535i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2010 BMW 535i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2010 BMW 535i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2010 BMW Z4 sDrive35i — 3.0 L6 GAS FI 2979cc | DOHC
- 2011 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2011 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2011 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2011 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2011 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2011 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2011 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2011 BMW 335is Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2011 BMW 335is Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2011 BMW 535i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2011 BMW Z4 sDrive35i — 3.0 L6 GAS FI 2979cc | DOHC
- 2012 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2012 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2012 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2012 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2012 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2012 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2012 BMW 335is Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2012 BMW 335is Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2012 BMW 535i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2012 BMW Z4 sDrive35i — 3.0 L6 GAS FI 2979cc | DOHC
- 2013 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2013 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2013 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2013 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2013 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2013 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2013 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2013 BMW 335is Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2013 BMW 335is Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2013 BMW 535i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2013 BMW Z4 sDrive35i — 3.0 L6 GAS FI 2979cc | DOHC
- 2014 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2014 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2014 BMW 435i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2014 BMW 435i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2014 BMW 535i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2014 BMW M235i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2014 BMW Z4 sDrive35i — 3.0 L6 GAS FI 2979cc | DOHC
- 2015 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2015 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2015 BMW 435i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2015 BMW 435i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2015 BMW 535i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2015 BMW M235i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2015 BMW Z4 sDrive35i — 3.0 L6 GAS FI 2979cc | DOHC
- 2016 BMW 435i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2016 BMW 435i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2016 BMW 535i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2016 BMW M235i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2016 BMW Z4 sDrive35i — 3.0 L6 GAS FI 2979cc | DOHC
European Fitment
- 2009 BMW 135i E82 [Euro] — 3.0L I6 FI | T
- 2009 BMW 135i E88 [Euro] — 3.0L I6 FI | T
- 2010 BMW 135i E82 [Euro] — 3.0L I6 FI | T
- 2010 BMW 135i E88 [Euro] — 3.0L I6 FI | T
- 2011 BMW 135i E82 [Euro] — 3.0L I6 FI | T
- 2011 BMW 135i E88 [Euro] — 3.0L I6 FI | T
- 2012 BMW 135i E82 [Euro] — 3.0L I6 FI | T
- 2012 BMW 135i E88 [Euro] — 3.0L I6 FI | T
- 2013 BMW 135i E82 [Euro] — 3.0L I6 FI | T
- 2013 BMW 135i E88 [Euro] — 3.0L I6 FI | T
- 2009 BMW 335i E90 [Euro] — 3.0L I6 FI | T
- 2009 BMW 335i E92 [Euro] — 3.0L I6 FI | T
- 2009 BMW 335i E93 [Euro] — 3.0L I6 FI | T
- 2010 BMW 335i E90 [Euro] — 3.0L I6 FI | T
- 2010 BMW 335i E92 [Euro] — 3.0L I6 FI | T
- 2010 BMW 335i E93 [Euro] — 3.0L I6 FI | T
- 2009 BMW 335xi E90 [Euro] — 3.0L I6 FI | T
- 2009 BMW 335xi E92 [Euro] — 3.0L I6 FI | T
- 2010 BMW 335xi E90 [Euro] — 3.0L I6 FI | T
- 2010 BMW 335xi E92 [Euro] — 3.0L I6 FI | T
- 2011 BMW 335i E90 [Euro] — 3.0L I6 FI | T
- 2011 BMW 335i E92 [Euro] — 3.0L I6 FI | T
- 2011 BMW 335i E93 [Euro] — 3.0L I6 FI | T
- 2012 BMW 335i E92 [Euro] — 3.0L I6 FI | T
- 2012 BMW 335i E93 [Euro] — 3.0L I6 FI | T
- 2013 BMW 335i E92 [Euro] — 3.0L I6 FI | T
- 2013 BMW 335i E93 [Euro] — 3.0L I6 FI | T
- 2011 BMW 335xi E90 [Euro] — 3.0L I6 FI | T
- 2011 BMW 335xi E92 [Euro] — 3.0L I6 FI | T
- 2012 BMW 335xi E92 [Euro] — 3.0L I6 FI | T
- 2013 BMW 335xi E92 [Euro] — 3.0L I6 FI | T
- 2012 BMW 335i F30 [Euro] — 3.0L I6 FI | T
- 2013 BMW 335i F30 [Euro] — 3.0L I6 FI | T
- 2014 BMW 335i F30 [Euro] — 3.0L I6 FI | T
- 2015 BMW 335i F30 [Euro] — 3.0L I6 FI | T
- 2012 BMW 335iX F30 [Euro] — 3.0L I6 FI | T
- 2013 BMW 335iX F30 [Euro] — 3.0L I6 FI | T
- 2014 BMW 335iX F30 [Euro] — 3.0L I6 FI | T
- 2015 BMW 335iX F30 [Euro] — 3.0L I6 FI | T
- 2014 BMW 435i F32 [Euro] — 3.0L I6 FI | T
- 2015 BMW 435i F32 [Euro] — 3.0L I6 FI | T
- 2016 BMW 435i F32 [Euro] — 3.0L I6 FI | T
- 2014 BMW 435iX F32 [Euro] — 3.0L I6 FI | T
- 2015 BMW 435iX F32 [Euro] — 3.0L I6 FI | T
- 2016 BMW 435iX F32 [Euro] — 3.0L I6 FI | T
- 2011 BMW 535i F10 [Euro] — 3.0L I6 FI | T
- 2012 BMW 535i F10 [Euro] — 3.0L I6 FI | T
- 2013 BMW 535i F10 [Euro] — 3.0L I6 FI | T
- 2014 BMW 535i F10 [Euro] — 3.0L I6 FI | T
- 2015 BMW 535i F10 [Euro] — 3.0L I6 FI | T
- 2016 BMW 535i F10 [Euro] — 3.0L I6 FI | T
- 2014 BMW M235i F22 [Euro] — 3.0L I6 FI | T
- 2014 BMW M235i F23 [Euro] — 3.0L I6 FI | T
- 2015 BMW M235i F22 [Euro] — 3.0L I6 FI | T
- 2015 BMW M235i F23 [Euro] — 3.0L I6 FI | T
- 2016 BMW M235i F22 [Euro] — 3.0L I6 FI | T
- 2016 BMW M235i F23 [Euro] — 3.0L I6 FI | T
- 2009 BMW Z4 35i E89 [Euro] — 3.0L I6 FI | T
- 2010 BMW Z4 35i E89 [Euro] — 3.0L I6 FI | T
- 2011 BMW Z4 35i E89 [Euro] — 3.0L I6 FI | T
- 2012 BMW Z4 35i E89 [Euro] — 3.0L I6 FI | T
- 2013 BMW Z4 35i E89 [Euro] — 3.0L I6 FI | T
- 2014 BMW Z4 35i E89 [Euro] — 3.0L I6 FI | T
- 2015 BMW Z4 35i E89 [Euro] — 3.0L I6 FI | T
- 2016 BMW Z4 35i E89 [Euro] — 3.0L I6 FI | T
- 2007 BMW 335i E90 [Euro] — 3.0L I6 FI | T
- 2008 BMW 335i E90 [Euro] — 3.0L I6 FI | T
- 2009 BMW 335i E90 [Euro] — 3.0L I6 FI | T
- 2007 BMW 335i E92 [Euro] — 3.0L I6 FI | T
- 2008 BMW 335i E92 [Euro] — 3.0L I6 FI | T
- 2009 BMW 335i E92 [Euro] — 3.0L I6 FI | T
- 2007 BMW 335i E93 [Euro] — 3.0L I6 FI | T
- 2008 BMW 335i E93 [Euro] — 3.0L I6 FI | T
- 2009 BMW 335i E93 [Euro] — 3.0L I6 FI | T
- 2007 BMW 335xi E90 [Euro] — 3.0L I6 FI | T
- 2008 BMW 335xi E90 [Euro] — 3.0L I6 FI | T
- 2007 BMW 335xi E92 [Euro] — 3.0L I6 FI | T
- 2008 BMW 335xi E92 [Euro] — 3.0L I6 FI | T
ACT T2SS-B01 Mod-Twin 225 XT Sprung Street Clutch for BMW 3.0L N54/N55 turbo applications. 850 ft/lbs capacity, 225mm twin-disc design, organic friction.
