Description

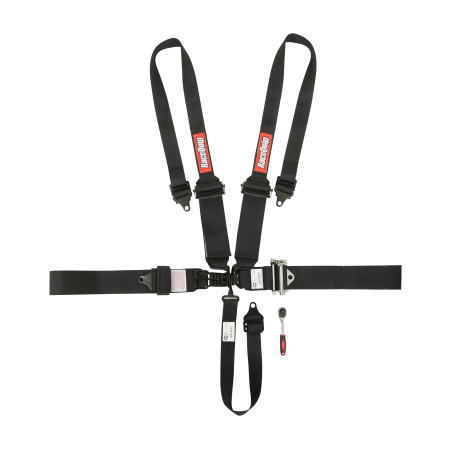

The RaceQuip Latch & Link 5-Point Ratchet HNR Racing Harness in Black is a professional-grade auto racing seat belt system engineered for Head & Neck Restraint (HNR/HANS) compatibility and maximum safety. Built with premium 3" polyester webbing and black oxide-coated drop-forged steel hardware, this harness exceeds the SFI 16.1 rating, making it ideal for competitive motorsports.
This 5-point configuration features a single 2" crotch strap and a ratchet-style lap belt adjuster, allowing precise tensioning for a snug and secure fit. The ratchet mechanism, located on the left side lap belt, is cranked by hand using the included 1/4" ratchet handle. The compact small-buckle design keeps the harness lightweight and unobtrusive, while both shoulder belts and the sub-belt hook over the link; the link is inserted into the latch on the lap belt, and the lever is brought down to securely lock all components in place.
Double-adjustable ends make installation straightforward, whether wrapping around a rollbar or bolting in place with the supplied ends (bolts not included). Snap hook ends and eyebolts are sold separately. Shoulders adjust from 28" to 62", and the lap belt adjusts from 40" to 78", accommodating a wide range of driver sizes.
Important: RaceQuip racing harnesses are designed for motorsports use only and are not D.O.T. / FMVSS certified for highway use.
FITMENT
- SFI 16.1 Rated Racing Harness (Tags Affixed)
- 5-Point Design with Single 2" Crotch Strap
- Ratchet-Style Lap Belt Adjuster, Lap Belt Adjusts 40" to 78"
- Shoulder Belts Adjust 28" to 62"
- Twin Individual HNR/HANS Shoulder Belts
- Compact Small-Buckle Latch Mechanism
- Wrap Around or Bolt-in Mounting
- Racing use only
Key Features
- Premium 3" Polyester Webbing
- 3" Lap, 3" to 2" HNR/HANS Shoulder, 2" Sub-Belt
- Twin Individual HNR/HANS Shoulder Belts
- Ratchet Style Lap Belt Adjuster for Precise Tensioning
- Drop-Forged Steel Hardware
- Black Epoxy Coated Hardware for Durability and Style
- Double Adjustable for Ease of Installation
- Compact Small Buckle Latch Design
