Description

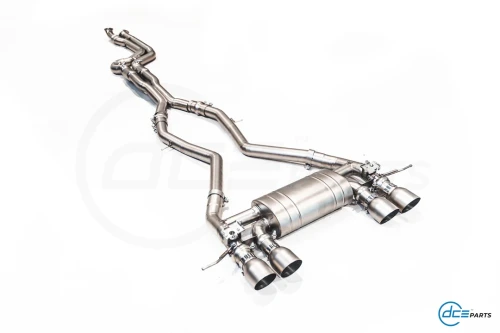

The DCE Parts BMW G87 M2 Equal Length & X-Pipe Midpipe Hybrid Titanium Catback Valved Exhaust is engineered specifically for the BMW G87 M2 platform and its high-performance S58 inline-six engine.
Constructed from high-grade titanium, this performance exhaust combines an equal-length midpipe, integrated resonators, and an X-pipe section to carefully tune exhaust pulse timing, sound frequency, and overall exhaust character.
The valved design provides the flexibility to enjoy a more refined and comfortable exhaust note with the valves closed, while opening the valves delivers a more aggressive and sportier sound for spirited driving.
What Is the Equal Length & X-Pipe Midpipe Hybrid?
The BMW S58 incorporates elements of an equal-length exhaust configuration from the factory, but the complex routing and bends in the exhaust system prevent it from functioning as a fully optimized equal-length setup.
The exhaust-pulse timing is influenced by the different path lengths created by the factory routing. When the exhaust gases eventually merge, the pulses may not reach the mixing point simultaneously, contributing to the distinctive split-cylinder sound associated with the S58.
Simply removing resonators or other exhaust components can increase volume, but it does not necessarily correct the underlying exhaust-pulse timing. In some configurations, this can result in an exhaust that is louder but also excessively raspy while retaining the characteristic split-cylinder sound.
The DCE Parts Equal Length & X-Pipe Hybrid addresses these characteristics by combining equal-length routing with an X-pipe configuration.
Equal Length Section
The equal-length principle is based on balancing the length of the two exhaust paths before the exhaust streams are brought together.
By more closely synchronizing the exhaust pulses, the system is designed to produce a higher-pitched and smoother exhaust note, giving the S58 a sound more reminiscent of a traditional straight-six engine.
X-Pipe Section
The X-pipe section allows the exhaust streams to interact and synchronize before splitting back into separate pipes toward the rear muffler.
This configuration is designed to complement the equal-length section by helping create a deeper and fuller exhaust tone at lower engine speeds, balancing the higher-pitched character produced by the equal-length design.
DCE Parts Equal Length & X-Pipe Hybrid Design
The DCE Parts Hybrid Midpipe combines multiple sound-tuning elements to create a more balanced S58 exhaust character.
The equal-length section is designed to create the desired higher-pitched tone, while the integrated resonators help control unwanted rasp and harsh frequencies. This allows the exhaust to retain its higher-pitched character without becoming excessively aggressive or unpleasant.
The X-pipe section then helps add depth and bass at lower RPM, creating a broader sound profile throughout the rev range.
The use of high-grade titanium further contributes to a warmer and distinctive exhaust tone while maintaining a lightweight, premium construction.
Together, these elements are designed to deliver a unique combination of:
- Higher-pitched straight-six-inspired sound
- Reduced unwanted rasp
- Deeper low-RPM exhaust tone
- Balanced sound throughout the rev range
- Warmer titanium exhaust acoustics
- Aggressive sound with the valves open
- Refined and comfortable sound with the valves closed
Valved Exhaust System
The DCE Parts exhaust system uses electronic or vacuum valve actuators, depending on the configuration, controlled through a separate valve-control system.
The high-quality valves are designed for reliable operation while giving the driver greater control over exhaust sound and drivability.
With the valves closed, the exhaust provides a more refined and comfortable sound profile suitable for everyday driving.
With the valves open, the system produces a more aggressive and sportier exhaust note, allowing the S58 engine's character to become more pronounced during acceleration and spirited driving.
On compatible BMW M models, the factory exhaust valves can be reused.
Key Features
- Equal-length exhaust design
- Integrated X-pipe midpipe section
- Hybrid equal-length and X-pipe configuration
- High-grade titanium construction
- Integrated resonators to help reduce excessive rasp
- Designed for a higher-pitched straight-six-inspired sound
- X-pipe section designed to add depth and bass at lower RPM
- Electronic or vacuum valve actuation depending on configuration
- Factory valve reuse on compatible M models
- High-grade electric valves
- Electric cables included
- Optional exhaust tips available
- Designed specifically for the BMW G87 M2 S58 platform
Fitment
The DCE Parts Equal Length & X-Pipe Midpipe Hybrid Valved Exhaust is designed for:
- BMW G87 M2 – S58
- BMW G87 M2 CS – S58
Specifications
- Material: High-Grade Titanium
- Product Type: Equal Length & X-Pipe Hybrid Catback Valved Exhaust
- Engine: BMW S58
- Valve Type: High-Grade Electric Valves
- Valve Actuation: Electronic or Vacuum, depending on configuration
- Electric Cables: Included
- Exhaust Tips: Optional
- Factory Valve Compatibility: Factory valves can be reused on compatible M models
Optional Exhaust Tips
The DCE Parts exhaust system can be fitted with optional exhaust tips, allowing you to customize the appearance of your G87 M2 or M2 CS to suit your preferred exterior styling.
Important Legal Disclaimer
Certain products, including exhaust components and tuning products, may alter or remove emissions-control systems. These products are intended for off-road, race, competition, or motorsport use only and may not be legal for use on public roads in your country or jurisdiction.
It is the buyer's responsibility to ensure compliance with all applicable local, state, and federal laws and regulations. Use these products at your own risk. Installation or use of these products on pollution-controlled vehicles may violate the U.S. Clean Air Act and could result in significant fines or penalties.
