Description
The CANchecked Jeep Wrangler Gladiator MFD15 Multi Function Display – 1.5" Gen2 is a compact digital display designed for monitoring engine and vehicle data in the 2020+ Jeep Wrangler Gladiator.
The MFD15 Gen2 combines CAN Bus communication, OBD2 data access, Wi-Fi connectivity, configurable display layouts, and expandable sensor inputs in a compact 1.5-inch OLED display. The OLED screen is designed to provide clear readability, including in direct sunlight.
This vehicle-specific kit includes a dedicated LHD/RHD bezel and connection cable, providing an integrated installation without requiring modifications to the vehicle.
The front-mounted LED can function as a shift light and/or warning indicator, while the configurable display allows users to create personalized layouts with different gauges, colors, graphics, and data parameters.
Fitment
2020–Present Jeep Wrangler Gladiator
Vehicle: Jeep Wrangler Gladiator
Model Years: 2020+
Steering Configuration: Left-Hand Drive (LHD) / Right-Hand Drive (RHD)
Installation: Vehicle-specific bezel and connection cable included
Verify compatibility and available vehicle data for your specific model year and configuration before purchase.

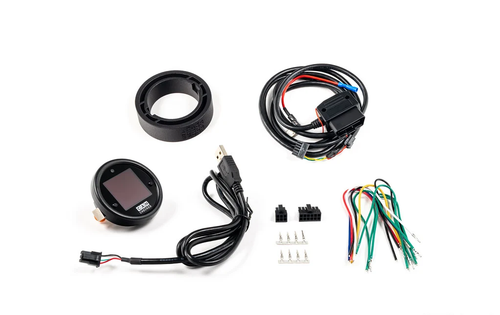

What's Included
- 1 × CANchecked MFD15 Gen2 Multi Function Display
- 1 × Vehicle-Specific Bezel for LHD/RHD Vehicles
- 1 × Vehicle-Specific Connection Cable
- 1 × Quickstart Guide
- 1 × Connector B – 6-Way Molex
- 1 × Connector C – 12-Way Molex
- 1 × Set of Pre-Assembled Connection Cables
- 1 × Set of Crimp Pins
Key Features
- 1.5" OLED Display: Compact OLED screen provides clear vehicle data visibility, including in direct sunlight.
- Compact Installation: Measures 52 mm in diameter and only 12.5 mm deep.
- CAN Bus Integration: Supports compatible CAN Bus ECUs and custom CAN streams.
- OBD2 Support: Provides access to OBD2 and deeper vehicle data on supported applications.
- Wi-Fi Connectivity: Connect to a smartphone or PC for configuration through the CANchecked Web App.
- Custom Display Layouts: Create personalized pages with configurable widgets, colors, graphics, and data displays.
- Six Analog Inputs: Supports connection of up to six analog sensors.
- Direct Ethanol Sensor Support: Compatible with an ethanol sensor for monitoring ethanol content and temperature on supported configurations.
- Shift Light & Warning LED: Front-mounted LED can be configured as a shift indicator and/or warning light.
- Preset Alarms: Predefined alarms can be activated and customized for parameters such as exhaust gas temperature.
- Custom Startup Graphics: Personalize the display with a custom startup logo and color scheme.
- Online Data Logging: Supported configurations can log vehicle data using a smartphone or PC for later analysis.
- Flex Fuel Support: Supported configurations can display ethanol content and temperature.
- CAN Switching: Supported configurations can use display controls for CAN switching and forward analog sensor readings to the CAN bus.
- Vehicle-Specific Integration: Includes a dedicated bezel and connection cable for the Jeep Wrangler Gladiator.
- LHD/RHD Compatibility: Vehicle-specific bezel is supplied for both left- and right-hand-drive configurations.
- Plug-and-Play Installation: Designed for installation without vehicle modification.
- German Manufacturing: Manufactured in Germany using CANchecked engineering and production processes.
Specifications
- Brand: CANchecked
- Product Type: Multi Function Digital Display
- Model: MFD15 Gen2
- Display Size: 1.5"
- Display Type: OLED
- Diameter: 52 mm
- Installation Depth: 12.5 mm
- Vehicle: Jeep Wrangler Gladiator
- Model Years: 2020+
- Steering Configuration: LHD / RHD
- Communication: CAN Bus / OBD2
- Wireless Connectivity: Wi-Fi
- Analog Inputs: Up to 6
- Ethanol Sensor Support: Yes, supported configurations
- LED: Front-Mounted Shift / Warning LED
- Display Customization: Yes
- Data Logging: Supported configurations
- CAN Switching: Supported configurations
- Mounting: Vehicle-Specific Bezel
- Manufacturing Location: Germany
Display & Customization
The MFD15 Gen2 allows users to configure the display according to their preferred vehicle data and visual layout.
Through the CANchecked Web App, the display can be configured using a smartphone or PC. Users can create personalized pages, select different display parameters, customize colors, and add their own startup logo.
The front LED can also be configured for shift-light or warning functions, while preset alarms can provide prominent warnings when monitored parameters exceed user-defined thresholds.
Sensor & Data Integration
The MFD15 Gen2 supports direct communication with compatible CAN Bus ECUs and OBD2 systems. It can also accept up to six analog sensor inputs, allowing additional vehicle parameters to be monitored beyond the information available through the vehicle's standard communication systems.
Supported configurations can also provide ethanol content and temperature monitoring, online data logging, CAN switching, and forwarding of analog sensor readings onto the CAN bus.
Available data and functions vary depending on the vehicle, ECU configuration, model year, and software support.
Vehicle Compatibility & Data Availability
CANchecked displays communicate directly with supported vehicles through the CAN Bus. CAN Bus became widely available in production vehicles from approximately 2008 onward, but the amount of accessible data varies significantly between manufacturers and vehicle configurations.
For the 2020+ Jeep Wrangler Gladiator, available parameters and functions depend on the vehicle's model year, installed control units, software version, and supported CAN communication protocols.
Not all displayed values are intended for diagnostic or safety-critical purposes. Displayed information should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.
Customers should verify compatibility and available data for their specific vehicle before purchase and installation.
Installation
The kit includes a vehicle-specific bezel and connection cable designed for the Jeep Wrangler Gladiator.
The MFD15 Gen2 connects through the supplied Molex connectors and pre-assembled wiring. The supplied wiring includes connections intended for power supply, CAN Bus, analog inputs, 5V supply, and sensor ground.
The system is designed for installation without modification to the vehicle.
Professional installation by a qualified technician is recommended.
