Description
The CANchecked Ford Fiesta MK5 / MK6 / MK7 MFD15 Multi Function Display - 1.5" Gen2 (LHD/RHD) is a compact, configurable digital display designed for enthusiasts and tuners who want to monitor critical engine and vehicle data.
The CANchecked MFD15 Gen2 provides CAN Bus and OBD2 data access, WiFi connectivity, expandable analog sensor inputs, customizable displays, configurable alarms, and advanced monitoring functions. The 1.5-inch OLED screen delivers excellent readability, even in direct sunlight.
With its compact 52 mm diameter and vehicle-specific installation components, the MFD15 Gen2 integrates cleanly into compatible Ford Fiesta applications while providing access to important vehicle information in an easy-to-read format.
Key Features
- Compact 52 mm diameter design
- Only 12.5 mm deep
- OLED display with excellent readability in direct sunlight
- Faceplate-mounted LED for use as a shift light and/or warning LED
- CAN Bus support for CAN Bus ECUs and custom CAN streams
- OBD2 and deep-value support for vehicles from 2008 onward
- WiFi connectivity for smartphone or PC configuration through the CANchecked Web App
- Support for up to 6 analog sensors
- Direct ethanol sensor connection capability
- Preset alarms that can be activated and customized
- Configurable warnings, including alerts when exhaust gas temperature exceeds 900 degrees
- Custom startup logo and color scheme
- Online data logging through a smartphone or PC
- Ability to save logged data to the device for later analysis
- Flex Fuel support for displaying ethanol content and temperature
- CAN Switching for switching CAN switches using the display buttons
- Ability to forward analog input readings to the CAN Bus
- Analog pointer functionality
- Double value display functionality
Specifications
- Brand: CANchecked
- Product: MFD15 Multi Function Display
- Generation: Gen2
- Display Size: 1.5 inches
- Display Type: OLED
- Diameter: 52 mm
- Depth: 12.5 mm
- Connectivity: CAN Bus, OBD2, WiFi
- Analog Inputs: Up to 6
- Vehicle Orientation: LHD and RHD
- Configuration: CANchecked Web App
- Data Logging: Supported
- Flex Fuel: Supported
- CAN Switching: Supported
- Display Functions: Analog Pointer, Double Value

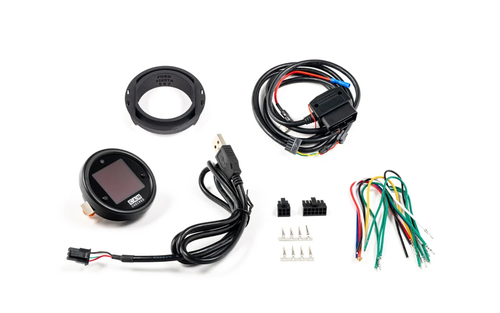

What's Included
- MFD15 Gen2 Datadisplay
- Vehicle-specific bezel for LHD and RHD vehicles
- Vehicle-specific connection cable
- Quickstart Guide
- Connector B, 6-way Molex
- Connector C, 12-way Molex
- Different colored pre-assembled connection cables, 20 cm length, intended for power supply, CAN Bus, analog inputs, 5V, and sensor ground
- Pins to crimp by yourself
Vehicle Fitment
- Ford Fiesta MK5: 2002-2008
- Ford Fiesta MK6: 2008-2017
- Ford Fiesta MK7: 2017-2023
Vehicle Compatibility & Data Availability
CANchecked products communicate directly with the vehicle through the CAN Bus. As a general guideline, CAN Bus became widely available in production vehicles from approximately 2008 onward. Compatibility and the amount of available data depend on the vehicle manufacturer, model, model year, installed control units, and software version.
Many modern vehicles provide only limited information through standard OBD diagnostics. For selected vehicles, CANchecked offers dedicated integrations that access additional vehicle data directly from internal vehicle communication networks. Available functions and parameters may vary between vehicles, including vehicles within the same model range.
Not all displayed values are intended for diagnostic or safety-critical purposes. While CANchecked strives to provide accurate information, displayed data should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.
Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
