Description
The CANchecked VW MK6 Golf MFD15 Multi Function Display - 1.5" Gen2 is a compact, configurable digital display designed for Volkswagen Golf enthusiasts, performance drivers, and tuners who want convenient access to important engine and vehicle data.
The CANchecked MFD15 Gen2 combines CAN Bus integration, OBD2 and expanded VAG vehicle data access, WiFi connectivity, customizable display functions, and expandable sensor inputs in a compact 52 mm housing. Its OLED display provides excellent readability, including in direct sunlight, while the vehicle-specific bezel and connection cable provide a clean installation for compatible Volkswagen Golf MK6 models.
The front-mounted LED can be configured as a shift light and/or warning indicator, while customizable alarms provide clear visual alerts for important vehicle parameters. The MFD15 Gen2 also supports additional analog sensors, Flex Fuel monitoring, online data logging, and CAN Switching for advanced vehicle monitoring and tuning applications.
Key Features
- Compact 52 mm diameter design with only 12.5 mm depth
- High-visibility OLED display for excellent readability in direct sunlight
- Front-mounted LED configurable as a shift light and/or warning indicator
- CAN Bus support for compatible CAN Bus ECUs and custom CAN streams
- OBD2 and expanded data support for compatible VAG vehicles
- WiFi connectivity for smartphone and PC configuration
- Web App for display setup and customization
- Supports up to 6 analog sensors
- Direct connection support for compatible ethanol sensors
- Preset alarms that can be activated and customized
- Large visual alerts for parameters such as high exhaust gas temperature
- Custom startup logo and color scheme
- Online data logging through smartphone or PC
- Save logged data to the device for later analysis
- Flex Fuel monitoring for ethanol content and temperature
- CAN Switching through the display buttons
- Ability to forward analog sensor readings to the CAN Bus
- Vehicle-specific bezel and connection hardware
- Designed specifically for LHD vehicles
Specifications
- Brand: CANchecked
- Product: MFD15 Gen2 Multi Function Display
- Display Size: 1.5"
- Housing Diameter: 52 mm
- Housing Depth: 12.5 mm
- Display Type: OLED
- Connectivity: CAN Bus, OBD2, WiFi
- Analog Inputs: Up to 6 sensors
- Vehicle Data: Compatible VAG CAN Bus and OBD2 data
- Configuration: Smartphone or PC via Web App
- Vehicle Configuration: Volkswagen Golf MK6
- Steering Configuration: LHD

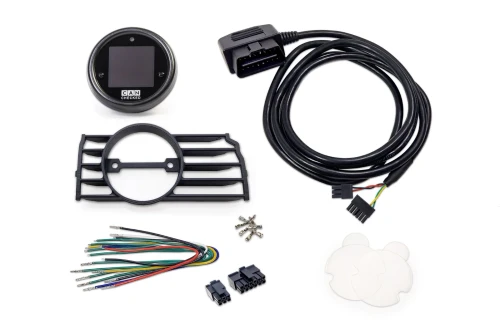

What's Included
- CANchecked MFD15 Gen2 Datadisplay
- Vehicle-specific bezel for LHD vehicles
- Vehicle-specific connection cable
- Quickstart Guide
- Connector B, 6-way Molex
- Connector C, 12-way Molex
- Pre-assembled 20 cm connection cables for power supply, CAN Bus, analog inputs, 5V, and sensor ground
- Crimp pins for custom wiring
Vehicle Fitment
Volkswagen Golf MK6
- Volkswagen Golf MK6
Vehicle Compatibility & Data Availability
CANchecked products communicate directly with compatible vehicles through the CAN Bus. CAN Bus technology became widely available in production vehicles from approximately 2008 onward; however, available data and functions depend on the vehicle manufacturer, model, model year, installed control units, and software version.
For compatible Volkswagen and VAG vehicles, CANchecked integrations can provide access to additional vehicle data through internal vehicle communication networks beyond what may be available through standard OBD diagnostics. Available functions and parameters can vary between individual vehicles and configurations, even within the same model range.
Not all displayed values are intended for diagnostic or safety-critical purposes. Displayed information should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.
Customers are responsible for verifying compatibility and available functions for their specific Volkswagen vehicle before purchase and installation.
