Description
The MFD15 Gen2 combines direct CAN Bus and OBD2 data access, wireless configuration, expandable sensor inputs, customizable display pages, and configurable alarms in a compact 1.5-inch OLED display.
Its OLED screen is designed for excellent readability, including in direct sunlight, while the integrated front-facing LED can be configured as a shift light and/or warning indicator.
This application-specific kit includes a vehicle-specific LHD bezel and connection kit designed for the 2009–2010 Dodge Charger LX Facelift.
Fitment
2009–2010 Dodge Charger LX Facelift
Chassis: LX Facelift
Drive Configuration: Left-Hand Drive (LHD)
Application: Dodge Charger LX Facelift
The vehicle-specific bezel and connection components are designed specifically for the 2009–2010 Dodge Charger LX Facelift with left-hand drive.
Verify your exact vehicle configuration and available CAN Bus/OBD2 data before purchase and installation.
What's Included

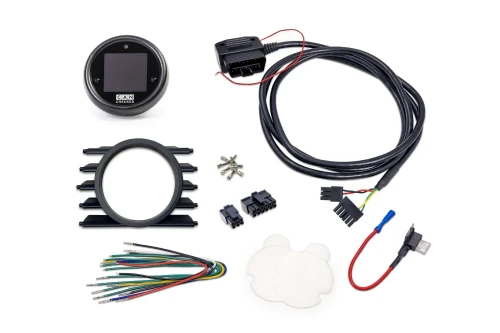

- 1 × CANchecked MFD15 Gen2 Data Display
- 1 × Vehicle-Specific LHD Bezel
- 1 × Vehicle-Specific OBD Connection Cable
- 1 × Quickstart Guide
- 1 × Connector B – 6-Way Molex
- 1 × Connector C – 12-Way Molex
- 1 × Set of Pre-Assembled Colored Connection Cables – 20cm
- 1 × Set of Crimp Pins
The pre-assembled cables are intended for power supply, CAN Bus, analog inputs, 5V supply, and sensor ground connections.
Key Features
- 1.5-Inch OLED Display: Compact OLED screen designed for excellent readability, including in direct sunlight.
- Compact Housing: Measures only 52mm in diameter and 12.5mm deep.
- CAN Bus Integration: Supports compatible CAN Bus ECUs and custom CAN streams.
- OBD2 Support: Provides OBD2 and deeper vehicle data access for compatible vehicles.
- Front-Facing LED: Configurable as a shift light and/or warning LED.
- WiFi Configuration: Connects to a smartphone or PC for configuration through the CANchecked Web App.
- Six Analog Inputs: Supports connection of up to six analog sensors.
- Ethanol Sensor Support: An ethanol sensor can be connected directly to the display.
- Configurable Alarms: Preset alarms can be activated and customized for specific vehicle parameters.
- Custom Startup Graphics: Supports custom startup logos and color schemes.
- Eight Display Pages: Allows up to eight configurable pages with different display layouts and views.
- Online Data Logging: Vehicle data can be logged using a smartphone or PC and saved for later analysis; may require a license.
- Flex Fuel Monitoring: Can display ethanol content and temperature when supported; may require a license.
- Vehicle-Specific Installation: Includes a dedicated LHD bezel and OBD connection cable for the specified Dodge Charger application.
Specifications
- Brand: CANchecked
- Product: MFD15 Multi Function Display Gen2
- Display Size: 1.5 inches
- Display Type: OLED
- Diameter: 52mm
- Depth: 12.5mm
- Vehicle: Dodge Charger LX Facelift
- Model Years: 2009–2010
- Drive Configuration: LHD
- Communication: CAN Bus / OBD2
- Wireless Connectivity: WiFi
- Analog Inputs: Up to 6
- Ethanol Sensor Input: Supported
- Display Pages: Up to 8
- Front LED: Shift Light / Warning LED
- Display Customization: Startup Logo / Color Scheme / Display Views
- Data Logging: Supported; may require license
- Flex Fuel: Supported; may require license
- Bezel: Vehicle-specific LHD
- OBD Connection: Vehicle-specific
- Connector B: 6-Way Molex
- Connector C: 12-Way Molex
- Pre-Assembled Cable Length: 20cm
Display & Customization
The MFD15 Gen2 provides up to eight configurable display pages, allowing users to select different views and arrange information according to their preferences.
Users can customize the display with their own startup logo and color scheme, creating a personalized monitoring interface suited to their vehicle.
The integrated front LED can also be configured to provide a visual indication for gear shifting or warning conditions.
CAN Bus & OBD2 Data
The MFD15 Gen2 supports communication with compatible CAN Bus ECUs, custom CAN streams, and OBD2 systems.
CAN Bus data availability generally depends on the vehicle's communication architecture, installed control units, model year, and software configuration. The system can access deeper vehicle data on selected applications where dedicated CAN integration is available.
OBD2 data availability likewise varies according to the vehicle and its control modules.
Additional Sensor Inputs
The MFD15 Gen2 provides up to six analog sensor inputs, allowing additional sensors to be connected directly to the display.
An ethanol sensor can also be connected directly to the display for flex-fuel monitoring. Flex-fuel functionality may require an applicable software license.
The supplied pre-assembled cables include connections intended for power supply, CAN Bus, analog inputs, 5V supply, and sensor ground.
Alarms & Data Logging
The display supports configurable preset alarms that can be activated and customized according to the user's requirements.
For example, an alarm can be configured to provide a prominent warning when a monitored parameter such as exhaust gas temperature exceeds a selected threshold.
The MFD15 Gen2 also supports online data logging through a smartphone or PC, allowing recorded data to be saved for later analysis. Data logging functionality may require a license.
Vehicle Compatibility & Data Availability
CANchecked products communicate directly with compatible vehicles through CAN Bus and/or OBD2 systems.
CAN Bus became widely available in production vehicles from approximately 2008 onward, but the actual availability of data depends on the vehicle manufacturer, model, model year, installed control units, and software version.
Some vehicles provide only limited information through standard OBD diagnostics. For selected applications, CANchecked offers dedicated integrations that can access additional information directly from internal vehicle communication networks.
Available parameters and functions may vary between individual vehicles, including vehicles within the same model range.
Displayed information should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-critical decisions.
Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
Installation
The MFD15 Gen2 kit includes a vehicle-specific LHD bezel and OBD connection cable for the 2009–2010 Dodge Charger LX Facelift.
The supplied 20cm pre-assembled cables are intended for connecting power, CAN Bus, analog inputs, 5V supply, and sensor ground. Additional pins are supplied for custom connections where required.
Installation should be performed according to the CANchecked documentation and the requirements of the specific vehicle.
