Description
The CANchecked VAG Diagnosis Gateway Cable for MFD15 Gen2 is a purpose-built wiring harness designed to connect the CANchecked MFD15 display to compatible VAG vehicle gateway systems.
Developed as an evolution of the CANchecked VAG OBD cable, this diagnosis gateway cable is designed to provide faster data acquisition while maintaining reliable power, signal, and CAN communication.
The harness is particularly useful for performance-focused VAG applications where a freely programmable ECU may be installed. It allows the MFD15 display to be integrated directly into the vehicle's gateway system through a dedicated Y-cable configuration.
Fitment
VAG Models – Universal Application
Product: CANchecked Diagnosis Gateway Cable
Compatible Display: CANchecked MFD15 Gen2
Application: VAG vehicle gateway integration
The cable is designed for use with compatible VAG vehicles equipped with a suitable gateway connection and the CANchecked MFD15 display.
Verify your specific vehicle, gateway configuration, and MFD15 installation requirements before ordering.
What's Included
- 1 × CANchecked VAG Diagnosis Gateway Cable for MFD15 Gen2
Key Features
- VAG Gateway Integration: Designed to integrate the MFD15 display with the vehicle's gateway system.
- MFD15 Gen2 Compatible: Purpose-built for the CANchecked MFD15 display.
- Faster Data Acquisition: Developed to provide faster vehicle data acquisition compared with the previous VAG OBD cable solution.
- Freely Programmable ECU Compatibility: Designed to support applications where a freely programmable ECU is installed.
- Dedicated Molex Connections: One end features dedicated 6-way and 12-way Molex connectors for the MFD15 display.
- Y-Cable Configuration: The opposite end uses a Y-cable design for seamless integration into the vehicle's gateway connection.
- Reliable CAN Communication: Provides the wiring required for CAN-based vehicle data communication.
- Clean Integration: Designed to provide a neat and purpose-built connection between the MFD15 and vehicle gateway.
- Motorsport & Performance Applications: Suitable for performance-focused VAG builds requiring reliable data integration.
Specifications
- Brand: CANchecked
- Product: Diagnosis Gateway Cable
- Application: VAG Models
- Compatible Display: MFD15 Gen2
- Cable Type: VAG Diagnosis Gateway Y-Cable
- Display Connectors: 6-Way Molex + 12-Way Molex
- Vehicle Connection: Gateway Y-Cable
- Communication: CAN
- Application: Universal VAG
- ECU Compatibility: Suitable for applications with freely programmable ECUs
Cable Design

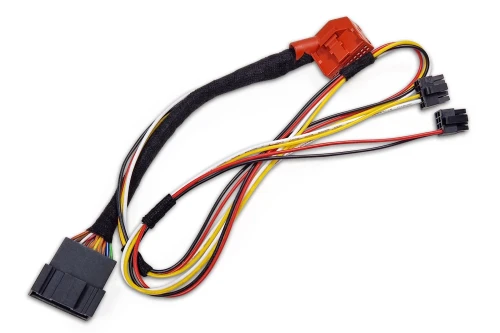

The CANchecked VAG Diagnosis Gateway Cable features 6-way and 12-way Molex connectors on one end for direct connection to the MFD15 display.
The opposite end uses a Y-cable configuration designed to integrate the display into the vehicle's gateway connection without requiring the standard VAG OBD cable arrangement.
This design provides a dedicated connection path for the MFD15 and is intended to support faster data acquisition from the vehicle.
MFD15 Integration
The cable is specifically designed for the CANchecked MFD15 Gen2 and provides the necessary gateway connection for compatible VAG applications.
It is particularly useful for performance vehicles using a freely programmable ECU, where the gateway cable can provide an alternative method of obtaining vehicle data for display and monitoring purposes.
Installation
The Diagnosis Gateway Cable is designed for direct integration between the MFD15 Gen2 display and the vehicle's gateway connection.
The Y-cable configuration allows the MFD15 to be integrated into the vehicle's existing gateway wiring. Installation should be performed according to the CANchecked MFD15 installation requirements and the specific VAG vehicle's gateway configuration.
Verify connector compatibility before installation.
