Description
The ACT T1SS-B05 Mod-Twin 225 HD Sprung Street Clutch Kit is designed for high-powered AWD street cars equipped with select BMW 3.0L turbocharged applications. This heavy-duty twin-disc clutch system combines high torque capacity, durability, refined engagement quality, and uncompromised pedal feel by utilizing twice the organic friction surface area with an ultra-durable spring-centered Mono-Drive hub in a completely modular design.
Each diaphragm spring undergoes an exclusive four-stage heat-treating process to provide consistent performance and light pedal effort. Steel-backed friction plates with high-quality organic friction materials deliver a stable friction coefficient, good heat capacity, and long clutch life. The friction plates uniformly transfer torque to the Mono-Drive sprung hub assembly, helping extend input shaft life and reduce driveline shock caused by torsional vibration.

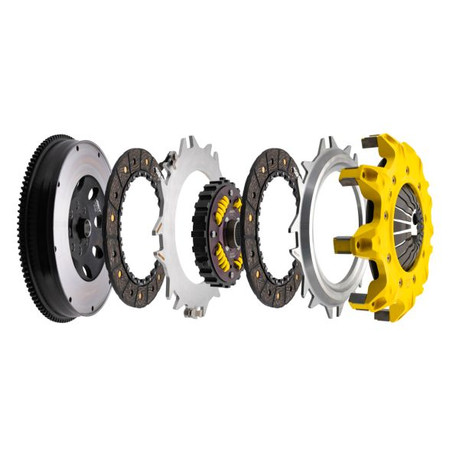

The kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool, and pilot bearing if needed. ACT Mod-Twin clutches are fully rebuildable, and most components can be ordered separately.
Features and Benefits
- Designed for high-powered AWD street cars
- Mod-Twin 225 HD Sprung Street configuration
- Twin-disc clutch design
- High torque capacity
- Organic friction material
- Steel-backed friction plates
- Ultra-durable spring-centered Mono-Drive hub
- Exclusive four-stage heat-treated diaphragm spring
- Consistent light pedal feel
- Good heat capacity
- Long clutch life
- Helps extend input shaft life
- Reduces driveline shock from torsional vibration
- CNC-machined and dynamically balanced flywheel
- Fully rebuildable modular construction
- Most components can be ordered separately
- 100% clamp-load tested
- Dynamically balanced
- SFI certified
Feel
The Mod-Twin 225 HD Sprung Street clutch provides soft, progressive engagement, light pedal effort, and smooth shifting, with mild to moderate transmission gear noise.
Life
The forged aluminum cover, Mono-Drive hub, exclusive diaphragm, premium friction materials, and hardened wear points are designed to provide long service life and allow this twin-disc clutch to perform and survive under demanding conditions.
Quality
The ACT Mod-Twin design delivers maximum performance and high heat tolerance by combining robust construction, strategic engineering features, carefully selected materials, and close manufacturing tolerances.
Recommended Use
Street or Street/Strip.
ACT Difference
By applying tactical engineering to the Mod-Twin design, ACT provides unique solutions to common tradeoffs found in twin-disc clutches. The result is an ultra-durable, customer-serviceable, long-lasting clutch with very high torque capacity. All ACT Mod-Twin clutches are 100% clamp-load tested, balanced, and SFI certified.
Specifications
- Item Description: ACT Mod-Twin 225 Heavy Duty Sprung Street Clutch Kit
- Product Weight: 33.1 lbs.
- Torque Capacity: 690 ft/lbs.
- Torque Capacity Over OE: 125%
- Disc Material: Organic
- Clutch Disc Diameter: 8.8 inches
- Clutch Disc Diameter: 225 mm
- Input Shaft Diameter: 1.375 inches
- Pressure Plate Type: Heavy Duty
- Warranty: 12 Months
- SFI: 1.2
- UPC: 00842385031176
Fitment
This ACT T1SS-B05 Mod-Twin 225 HD Sprung Street Clutch Kit has the following listed fitment applications:
2007 BMW
- 2007 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2007 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2007 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2007 BMW 335xi Base — 3.0 L6 GAS FI 2979cc | DOHC
2008 BMW
- 2008 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2008 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2008 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2008 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2008 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2008 BMW 335xi Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2008 BMW 335xi Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2008 BMW 535i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2008 BMW 535xi Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2008 BMW 535xi Base — 3.0 L6 GAS FI 2979cc | DOHC
2009 BMW
- 2009 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 135i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 335i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 335i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 535i Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 535i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
- 2009 BMW 535i xDrive Base — 3.0 L6 GAS FI 2979cc | DOHC
