Description
Maximize engine performance and efficiency with the WAGNER TUNING Competition High-Performance Intercooler Kit, engineered specifically for the Audi S4 B9 and S5 F5 3.0TFSI EU-spec models. Designed for demanding street and motorsport use, this intercooler delivers significantly improved cooling capacity while maintaining excellent airflow characteristics.
The Competition intercooler features a high-efficiency Tube Fin core with internal turbulators, ensuring maximum heat transfer and optimized charge air cooling. With a 134% larger inflow area and 105% more charge air volume compared to the factory intercooler, intake air temperatures are significantly reduced, allowing for more consistent power delivery and improved engine performance.
Despite its substantial increase in size and cooling capability, the intercooler weighs only 9.5 kg, minimizing added vehicle weight. The cast aluminum end tanks are CFD-optimized to reduce backpressure while maintaining excellent airflow. Each intercooler is finished with a high-quality anti-corrosion coating that also provides superior heat dissipation for long-term durability and performance stability.
This Competition Intercooler Kit is fully pressure-tested up to 6 bar and is suitable for high-performance and racing applications. Designed as a direct replacement for the factory intercooler, installation is straightforward with a true plug-and-play design and no complex modifications required.
Key Features & Advantages
-
Significantly improved cooling performance
-
134% larger inflow area compared to OEM intercooler
-
105% increase in charge air volume
-
Reduced backpressure for improved throttle response
-
High-quality Tube Fin core with internal turbulators
-
Lightweight design at only 9.5 kg
-
CFD-optimized cast aluminum end tanks
-
Anti-corrosion coating with excellent heat transfer properties
-
Pressure stable and tested up to 6 bar
-
Plug-and-play installation
-
Suitable for high-performance and racing applications
Intercooler Core Specifications
Original Intercooler
-
Core dimensions: 720 mm x 145 mm x 80 mm
-
Volume: 8.35 liters
-
Inflow area: 1044 cm²
WAGNER TUNING Competition Intercooler
-
Core dimensions: 550 mm x 445 mm x 70 mm
-
Volume: 17.13 liters
-
Inflow area: 2447 cm²
Vehicle Fitment (EU Models Only)
Audi S4 B9 3.0 TFSI 260 kW / 354 PS (2016+)
Audi S5 F5 3.0 TFSI 260 kW / 354 PS (2016+)
Note: Supplied mounting brackets are suitable for EU-spec models only.

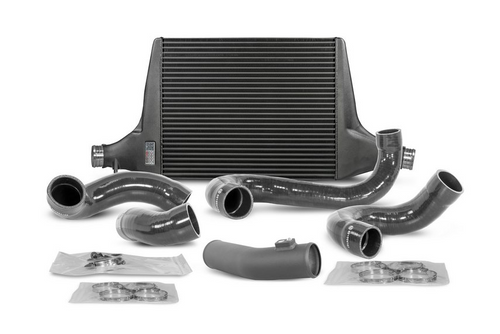

Kit Contents
-
1 Competition intercooler (black coated)
-
1 aluminum charge pipe, black coated (optional)
-
3 reinforced silicone hoses, black (optional)
-
1 complete mounting hardware set
-
1 installation instruction manual
An optional charge air piping upgrade is available, including reinforced silicone hoses and a black-coated aluminum charge pipe to further enhance airflow efficiency and overall system performance.
