Description

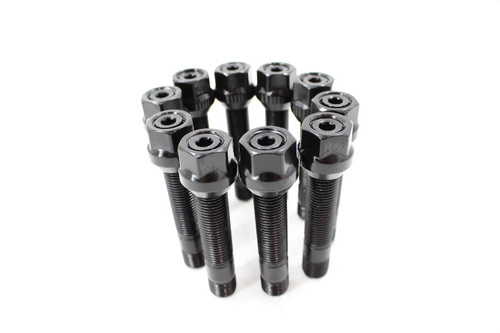

Upgrade your BMW or Toyota performance vehicle with the Vargas Turbo Technologies (VTT) M14x1.25 to M14x1.50 Wheel Stud Conversion Kit. Designed to replace factory wheel bolts with a durable stud and lug nut system, this conversion enhances wheel installation, improves serviceability, and provides a stronger, more convenient wheel mounting solution for both street and motorsport applications.
The VTT Wheel Stud Conversion Kit converts vehicles equipped with factory M14x1.25 wheel threads to the more common M14x1.50 thread pitch, making replacement lug nuts easier to source while improving wheel installation and removal. This setup is particularly beneficial for track enthusiasts, frequent wheel changes, aftermarket wheel installations, and spacer-equipped vehicles.
Each stud is forged from cold-rolled 10.9-class steel for exceptional strength and durability. A black oxide corrosion-resistant coating provides added protection against corrosion while maintaining a clean, performance-focused appearance. The studs are engineered with an optimized 85mm overall length, featuring a bull nose tip for easier lug nut engagement and a precision-machined shank for proper wheel alignment and load distribution.
Available in 10-piece and 20-piece configurations, each kit includes matching black open-ended lug nuts, delivering everything required for a complete wheel stud conversion.
Features
- Converts factory M14x1.25 wheel threads to M14x1.50 wheel studs
- Forged from cold-rolled 10.9-class steel
- Black oxide corrosion-resistant coating
- Designed for street and motorsport applications
- Improves wheel installation and removal
- Easier wheel alignment during installation
- Strong and durable wheel mounting solution
- Optimized stud design for enhanced functionality
- Includes matching black open-ended lug nuts
- Suitable for aftermarket wheel and spacer applications
- Available in 10-piece and 20-piece kit configurations
Stud Specifications
- 85mm overall stud length
- 75mm total threaded length
- 10mm bull nose tip for smooth lug nut engagement
- 12mm short-thread section (hub side)
- 12mm unthreaded shank
- 48mm long-thread section (lug nut side)
- Thread Conversion: M14x1.25 to M14x1.50
Kit Contents
10-Piece Kit
- 10 × M14x1.25 to M14x1.50 black wheel studs
- 10 × M14x1.50 19mm black open-ended lug nuts
20-Piece Kit
- 20 × M14x1.25 to M14x1.50 black wheel studs
- 20 × M14x1.50 19mm black open-ended lug nuts
Fitment
BMW Applications
- BMW F8X M-Series models equipped with M14x1.25 wheel threads
- BMW GX-Series models equipped with M14x1.25 wheel threads
- Other BMW vehicles utilizing factory M14x1.25 wheel bolt threads
Toyota Applications
- Toyota Supra models equipped with M14x1.25 wheel threads
Thread Compatibility
- Converts factory M14x1.25 wheel bolt applications to M14x1.50 wheel stud applications
Installation Notes
- Apply medium-strength thread locker (Loctite) to the short-thread hub side of each stud
- Torque studs to 10 ft-lb during installation
- Torque lug nuts according to OEM vehicle specifications
- Re-torque all studs and lug nuts after 25–50 miles of driving
- Professional installation is recommended
Important Notes
- Black oxide coating provides corrosion resistance but may develop minor surface rust when exposed to harsh environmental conditions
- Regular cleaning and a light coating of WD-40 can help maintain the finish and prevent surface corrosion
- Verify wheel and lug nut compatibility before installation
- Designed for performance street and motorsport use
