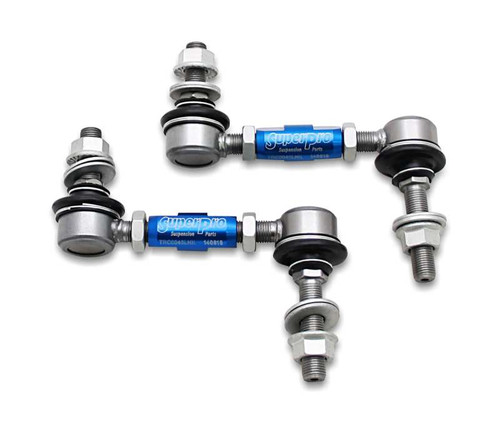

SuperPro 2006 Audi A3 Base Rear HD Adjustable End Link Set - sprTRC1045L

$152.99
SKU:
sprTRC1045L
Weight:
1.80 LBS
Shipping:
Calculated at Checkout
SuperPro 2006 Audi A3 Base Rear HD Adjustable End Link Set - sprTRC1045L

Description

Upgrade suspension performance and fine-tune sway bar positioning with the SuperPro Rear Heavy-Duty Adjustable End Link Set (Part Number: sprTRC1045L). Designed for select Audi, Volkswagen, and other compatible applications, these premium adjustable sway bar end links help reduce link flex, support neutral sway bar positioning, and maximize the effectiveness of adjustable sway bars.

The TRC1045L features an adjustable length of 100mm–120mm (4.0–4.8 inches) and 10mm ball joint studs. Each link set features one standard-length stud and one extended-length stud. Length is measured from the center of one ball joint stud to the center of the other. The adjustable design allows the links to accommodate certain raised or lowered vehicle setups and helps optimize sway bar positioning.

Constructed with 6060-T5 alloy link balls for low friction and long service life, these end links feature provisions for spanner adjustment while installed on the vehicle. They are designed to replace difficult-to-find original equipment links and help eliminate sway bar link flex, allowing drivers to make better use of the available positions on adjustable sway bars.

Installation note: SuperPro recommends reading the fitting instructions before installation. Adjustable end link requirements can vary with ride height and suspension modifications. Some aftermarket coilover systems relocate the end link mounting tab, which may require a shorter or longer link than the original equipment specification. Measure the required length and consult SuperPro technical support if needed.

Features and Benefits

  • Adjustable Length: Adjusts from 100mm to 120mm (4.0–4.8 inches).

  • 10mm Ball Joint Studs: Designed for compatible sway bar end link mounting points.

  • 6060-T5 Alloy Link Balls: Provide low friction and long service life.

  • On-Car Adjustment: Includes spanner provisions for convenient adjustment.

  • Reduced Link Flex: Helps minimize sway bar end link flex during suspension movement.

  • Neutral Sway Bar Positioning: Supports correct sway bar positioning and adjustment.

  • Optimized Adjustable Sway Bar Performance: Helps maximize the use of available sway bar adjustment positions.

  • Raised or Lowered Vehicle Compatibility: Adjustable length can accommodate certain suspension height changes when the required dimensions match.

  • Replacement Link Design: Provides an alternative to hard-to-find original equipment end links.

  • Kit Contents: Two adjustable end links.

Product Specifications

  • Brand: SuperPro

  • Part Number: sprTRC1045L

  • Product Type: Heavy-Duty Adjustable Sway Bar End Link Set

  • Position: Rear

  • Adjustable Length: 100mm–120mm (4.0–4.8 inches)

  • Ball Joint Stud Diameter: 10mm

  • Stud Configuration: One standard-length stud and one extended-length stud per link

  • Boot Material: High-temperature rubber

  • Dust Boots Included: Yes

  • Bolts Included: Yes

  • Hardware Included: Yes

  • Locking Nuts Included: Yes

  • Washers Included: Yes

  • Pre-Greased: Yes

  • Greaseable: No

  • Grease Fittings Included: No

  • Grade Type: Premium

  • Installation Difficulty: Moderate

  • Installation Time: 1 hour

  • Wheel Alignment Required: No

  • Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.

Vehicle Fitment

Audi A3

  • 2006–2013 Audi A3 Base — L4, 1984cc

  • 2010–2013 Audi A3 TDI — L4, 1968cc

  • 2009–2013 Audi A3 Quattro Base — L4, 1984cc

  • 2006–2009 Audi A3 Quattro Base — V6, 3189cc

Volkswagen CC

  • 2014 Volkswagen CC 4 Motion — V6, 3597cc

  • 2014–2015 Volkswagen CC Executive — L4, 1984cc

  • 2012 Volkswagen CC Executive — V6, 3597cc

  • 2015 Volkswagen CC Executive 4 Motion — V6, 3597cc

  • 2012–2013 Volkswagen CC Lux — L4, 1984cc

  • 2013 Volkswagen CC Lux — V6, 3597cc

  • 2012 Volkswagen CC Lux Limited — L4, 1984cc

  • 2012 Volkswagen CC Lux Plus — L4, 1984cc

  • 2009–2011 Volkswagen CC Luxury — L4, 1984cc

  • 2011–2016 Volkswagen CC R-Line — L4, 1984cc

  • 2016–2017 Volkswagen CC R-Line Executive — L4, 1984cc

  • 2009–2017 Volkswagen CC Sport — L4, 1984cc

  • 2013 Volkswagen CC Sport Plus — L4, 1984cc

  • 2016 Volkswagen CC Trend — L4, 1984cc

  • 2016 Volkswagen CC V6 Executive 4Motion — V6, 3597cc

  • 2009–2010 Volkswagen CC VR6 — V6, 3597cc

  • 2009–2011 Volkswagen CC VR6 4Motion — V6, 3597cc

  • 2013 Volkswagen CC VR6 4Motion Executive — V6, 3597cc

  • 2009–2010 Volkswagen CC VR6 Sport — V6, 3597cc

Volkswagen Eos

  • 2007 Volkswagen Eos 2.0T — L4, 1984cc

  • 2007 Volkswagen Eos 3.2 — V6, 3189cc

  • 2007 Volkswagen Eos Base — L4, 1984cc

  • 2012–2015 Volkswagen Eos Executive — L4, 1984cc

  • 2015 Volkswagen Eos Final Edition — L4, 1984cc

  • 2008–2016 Volkswagen Eos Komfort — L4, 1984cc

  • 2008–2013 Volkswagen Eos Lux — L4, 1984cc

  • 2013–2014 Volkswagen Eos Sport — L4, 1984cc

  • 2008 Volkswagen Eos Turbo — L4, 1984cc

  • 2008 Volkswagen Eos VR6 — V6, 3189cc

  • 2008 Volkswagen Eos VR6 — V6, 3197cc

Volkswagen Golf

  • 2010–2014 Volkswagen Golf Base — L5, 2480cc

  • 2010–2014 Volkswagen Golf TDI — L4, 1968cc

  • 2012–2013 Volkswagen Golf R Base — L4, 1984cc

Volkswagen GTI

  • 2006–2013 Volkswagen GTI Base — L4, 1984cc

  • 2014 Volkswagen GTI Driver's Edition — L4, 1984cc

  • 2007 Volkswagen GTI Fahrenheit — L4, 1984cc

  • 2014 Volkswagen GTI Wolfsburg Edition — L4, 1984cc

Volkswagen Jetta

  • 2006–2007 Volkswagen Jetta 2.0T — L4, 1984cc

  • 2006–2007 Volkswagen Jetta 2.5 — L5, 2480cc

  • 2006–2009 Volkswagen Jetta GLI — L4, 1984cc

  • 2008–2010 Volkswagen Jetta S — L5, 2480cc

  • 2008–2010 Volkswagen Jetta SE — L5, 2480cc

  • 2009 Volkswagen Jetta SEL — L4, 1984cc

  • 2008–2010 Volkswagen Jetta SEL — L5, 2480cc

  • 2006 Volkswagen Jetta TDI — L4, 1896cc

  • 2009–2010 Volkswagen Jetta TDI — L4, 1968cc

  • 2010 Volkswagen Jetta TDI Cup Edition — L4, 1968cc

  • 2006 Volkswagen Jetta Value Edition — L5, 2480cc

  • 2008–2010 Volkswagen Jetta Wolfsburg Edition — L4, 1984cc

  • 2007 Volkswagen Jetta Wolfsburg Edition — L5, 2480cc

Volkswagen Passat

  • 2006–2007 Volkswagen Passat 2.0T — L4, 1984cc

  • 2006–2007 Volkswagen Passat 3.6 — V6, 3597cc

  • 2008–2010 Volkswagen Passat Komfort — L4, 1984cc

  • 2008 Volkswagen Passat Lux — L4, 1984cc

  • 2008 Volkswagen Passat Turbo — L4, 1984cc

  • 2006–2007 Volkswagen Passat Value Edition — L4, 1984cc

  • 2008 Volkswagen Passat VR6 — V6, 3597cc

  • 2007 Volkswagen Passat Wolfsburg Edition — L4, 1984cc

Volkswagen R32

- 2008 Volkswagen R32 Base — V6, 3189cc

Volkswagen Rabbit

  • 2006–2007 Volkswagen Rabbit 2.5 — L5, 2480cc

  • 2008–2009 Volkswagen Rabbit S — L5, 2480cc

Volkswagen Tiguan

  • 2014–2016 Volkswagen Tiguan R-Line — L4, 1984cc

  • 2009–2016 Volkswagen Tiguan S — L4, 1984cc

  • 2009–2016 Volkswagen Tiguan SE — L4, 1984cc

  • 2009–2016 Volkswagen Tiguan SEL — L4, 1984cc

  • 2010 Volkswagen Tiguan Wolfsburg Edition — L4, 1984cc

  • 2017–2018 Volkswagen Tiguan Limited Base — L4, 1984cc

Fitment note: Confirm the required end link length against the vehicle's original equipment dimensions and current suspension setup, especially on lowered or raised vehicles and those fitted with aftermarket coilovers.
