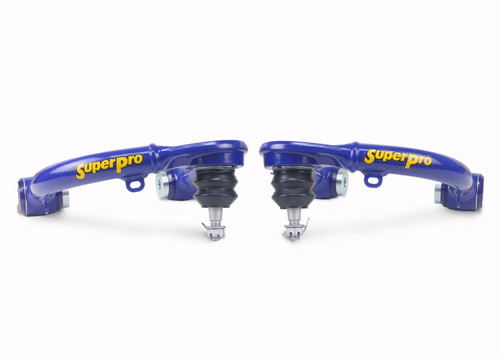

SuperPro 19-23 Ford Ranger Geometry Correction Front Upper Control Arm Set - sprTRC6565

Upgrade your lifted Ford Ranger’s suspension geometry with the SuperPro Geometry Correction Front Upper Control Arm Set (Part Number: sprTRC6565). Designed for 2019–2023 Ford Ranger models equipped with USDM alloy steering knuckles, these fixed-offset upper control arms incorporate camber and caster correction into their design to help restore proper suspension alignment on lifted trucks.

Engineered for vehicles with approximately 2–3 inches of lift, these performance suspension arms provide improved steering feel, greater straight-line stability, more precise turn-in, and predictable cornering behavior. Their optimized geometry helps improve on-road drivability while supporting enhanced suspension articulation and durability for off-road use.

The fixed-offset design eliminates the need for time-consuming adjustments or trial-and-error alignment corrections built into adjustable arms. By incorporating the intended camber and caster changes directly into the arm design, SuperPro provides a direct bolt-on suspension solution for lifted applications.

Constructed from durable tubular steel, these premium upper control arms feature heavy-duty, high-articulation ball joints and SuperPro bushings for dependable performance. The design also increases clearance between the spring and control arm during full articulation, helping accommodate the suspension geometry of lifted vehicles.

Based on a 50 mm lift, the SuperPro Fixed Offset Upper Control Arms provide an increase of approximately 2.5–3.5 degrees of caster and up to 1.5 degrees of negative camber change. Actual alignment results may vary depending on vehicle configuration, lift height, and suspension setup.

Key Features

• Fixed-offset geometry correction: Built-in camber and caster correction for lifted Ford Ranger applications.

• Lift compatibility: Designed for vehicles with approximately 50–75 mm (2–3 inches) of suspension lift.

• Improved steering performance: Helps enhance steering feel, accuracy, and straight-line stability.

• Predictable handling: Supports improved turn-in and cornering behavior.

• Increased suspension clearance: Provides additional clearance between the spring and control arm at full articulation.

• Heavy-duty ball joints: Includes durable, high-articulation ball joints for on-road and off-road use.

• SuperPro bushings: Includes performance suspension bushings for dependable operation.

• Tubular steel construction: Built for strength and durability.

• Greaseable design: Includes grease fittings for lubrication and maintenance.

• Fixed design: Non-adjustable arms with alignment correction incorporated into their geometry.

• Direct bolt-on solution: Designed for compatible lifted vehicles without requiring adjustable-arm geometry changes.

• Premium performance grade: Engineered for performance-oriented suspension applications.

Detailed Product Specifications

• Brand: SuperPro

• Part Number: sprTRC6565

• Product Type: Front Upper Control Arm Set

• Product Description: Fixed Offset Upper Control Arm Set for 2019–2023 Ford Ranger, USDM with Alloy Knuckles

• Installation Position: Front

• Kit Contents: 2 upper control arms

• Construction: Tubular

• Material: Steel

• Color: Blue

• Bushing Color: Blue

• Bushings Included: Yes

• Ball Joints Included: Yes

• Ball Joint Mounting Type: Press-in

• Ball Joint Stud Type: Threaded

• Grease Fittings Included: Yes

• Greaseable: Yes

• Adjustable: No

• Suspension Grade Type: Performance

• Product Grade Type: Premium

• Installation Difficulty: Moderate

• Estimated Installation Time: 3 hours

• Wheel Alignment Required: Yes

• Lift Compatibility: Approximately 50–75 mm (2–3 inches)

• Caster Change: Approximately 2.5–3.5 degrees

• Negative Camber Change: Up to 1.5 degrees

• Alignment Figures Reference: Based on a 50 mm lift

Vehicle Fitment

This SuperPro front upper control arm set is listed for the following vehicles:

• 2019–2023 Ford Ranger Lariat – 2.3L inline-four engine, 2300 cc (L4.2300cc).

• 2019–2023 Ford Ranger XL – 2.3L inline-four engine, 2300 cc (L4.2300cc).

• 2019–2023 Ford Ranger XLT – 2.3L inline-four engine, 2300 cc (L4.2300cc).

Fitment Requirements: This kit is specified for USDM Ford Ranger applications equipped with alloy steering knuckles. Confirm the vehicle's steering knuckle configuration and suspension setup before ordering. The arms are intended for lifted vehicles, approximately 2–3 inches, and a wheel alignment is required after installation.

Installation Information

• Installation Difficulty: Moderate

• Estimated Installation Time: 3 hours

• Wheel Alignment: Required after installation

• Installation Position: Front upper suspension

• Kit Contents: Two upper control arms

Professional installation is recommended to ensure correct fitment, suspension operation, and alignment.

California Proposition 65 Warning

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.

• Prop 65 Warning Applicable: Yes

Package Contents

• 2 SuperPro fixed-offset front upper control arms

The kit includes the upper control arms, ball joints, and bushings as specified. Verify all package contents upon receipt.
