Description

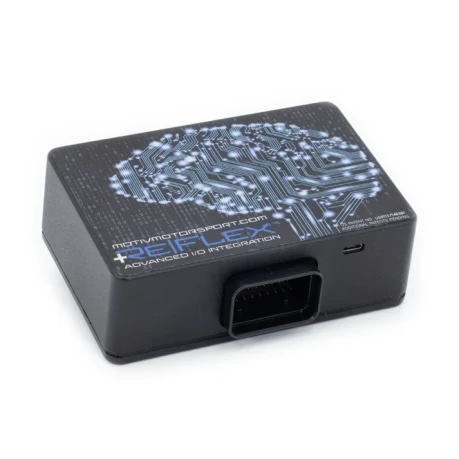

The MOTIV ReFlex+ Control Unit is an advanced engine integration and auxiliary I/O controller designed for high-performance tuning applications. More than a traditional auxiliary injector controller, the ReFlex+ combines sequential port injection control, CAN Bus integration, flex-fuel support, sensor monitoring, and auxiliary output control into a single programmable platform.
Engineered with multiple patented technologies, the ReFlex+ provides advanced control functionality typically associated with high-end engine management systems while offering the flexibility to operate in configurations ranging from standalone control to full CAN Bus integration.
This listing includes the ReFlex+ Control Unit only. Harnesses, wiring, installation kits, and other accessories are not included.
Advanced Control Strategies
The ReFlex+ supports multiple control configurations, allowing tuners to select the appropriate level of integration for their vehicle and tuning platform.
Standalone Mode allows the ReFlex+ to operate without CAN Bus communication, making it suitable for applications requiring independent auxiliary fuel and I/O control.
Integrated CAN Bus Mode allows the ReFlex+ to communicate with compatible tuning platforms, including MHD, EcuTek, MG Flasher, and bootmod3 (BM3), as well as other platforms capable of sending or receiving the required CAN Bus messages.
Advanced CAN Bus Mode provides deeper integration with supported platforms such as EcuTek and MHD+, allowing the ReFlex+ to become part of a more advanced engine management strategy.
True Sequential Port Injection Control
Originally developed to modernize auxiliary port fuel injection systems, the ReFlex+ goes beyond conventional batch-fire controllers by providing true sequential port injection control.
Sequential control allows the system to deliver fuel at the appropriate point in the engine cycle, providing tuners with greater control over auxiliary fueling. The ReFlex+ supports up to eight injectors and includes fault-sensing feedback for enhanced monitoring of the auxiliary fuel system.
This makes the ReFlex+ particularly suitable for high-output engines requiring additional fuel capacity beyond the factory fuel system.
Advanced I/O Control
The ReFlex+ functions as a comprehensive input/output control hub, allowing it to monitor sensors and control a variety of aftermarket performance components.
Its extensive I/O capabilities make it suitable for applications involving flex-fuel tuning, boost control, auxiliary fueling, sensor monitoring, methanol injection, nitrous systems, fuel pumps, and other electronically controlled components.
Inputs
The ReFlex+ provides multiple configurable inputs for monitoring engine and auxiliary system parameters.
- Sequential Port Injection: Supports up to 8 injectors with fault-sensing feedback
- 4 Analog Inputs: Compatible with 0–5V and 4–20mA sensors
- 2 Frequency Inputs: Supports frequency signals up to 10kHz and 20kHz
- Dedicated Flex Fuel Input: Reads ethanol content for real-time flex-fuel tuning
- MAP Sensor Input: Provides manifold pressure data for engine load and boost-related calculations
- Cam Sensor Input: Provides camshaft position information for advanced engine control
- Crank Sensor Input: Provides crankshaft position information for precise engine timing and control
Outputs
The ReFlex+ provides multiple auxiliary outputs for controlling performance components and accessories.
- 4 Low-Side Auxiliary Outputs: Configurable for PWM or digital ground triggering
- Supports control of methanol injection systems, nitrous systems, boost control devices, fuel pumps, solenoids, and other auxiliary components
- 12V Switched Outputs: Provides ignition-switched voltage for additional components
OEM-Level CAN Bus Integration
The ReFlex+ is designed to integrate with the factory ECU and compatible flash-tuning platforms through CAN Bus communication.
Supported tuning platforms include:
- MHD
- MHD+
- EcuTek
- MG Flasher
- bootmod3 (BM3)
CAN Bus functionality and available control features depend on the specific tuning platform, vehicle configuration, and supported integration capabilities.
This integration allows the factory ECU and ReFlex+ to work together, expanding the vehicle's available fuel-control and auxiliary I/O capabilities while maintaining a highly configurable tuning environment.
Flexible Programming and Configuration
The ReFlex+ is fully programmable through TunerPro RT, allowing tuners to configure the system according to the requirements of individual vehicles and performance applications.
The platform supports both universal and vehicle-specific configurations, providing flexibility for custom performance builds. Starter maps and setup documentation are available from MOTIV to assist with configuration and installation.
Designed for High-Performance Applications
The ReFlex+ is an ideal solution for performance builds that require more advanced control than a conventional auxiliary injector controller can provide.
Its combination of sequential port injection, CAN Bus communication, flex-fuel capability, sensor inputs, and auxiliary outputs allows one control unit to manage a wide range of performance-related functions.
Whether the application requires additional port-injection control, flex-fuel integration, boost management, sensor monitoring, or control of aftermarket components, the MOTIV ReFlex+ provides a flexible platform for advanced engine tuning.
Key Features
- Advanced performance I/O integration controller
- True sequential port injection control
- Supports up to 8 injectors
- Injector fault-sensing feedback
- Standalone operating mode
- Integrated CAN Bus functionality
- Advanced CAN Bus integration
- Compatible with MHD, MHD+, EcuTek, MG Flasher, and BM3 where supported
- 4 analog inputs
- Supports 0–5V and 4–20mA sensors
- 2 frequency inputs
- Supports frequency signals up to 10kHz and 20kHz
- Dedicated flex-fuel input
- MAP, cam, and crank sensor inputs
- 4 low-side auxiliary outputs
- PWM and digital ground output capability
- 12V switched outputs
- Supports methanol injection, nitrous, boost control, fuel pumps, and other auxiliary components
- Programmable through TunerPro RT
- Supports universal and vehicle-specific configurations
- Designed for advanced performance tuning applications
What's Included
- MOTIV ReFlex+ Control Unit
Important: This listing includes the control unit only. Harnesses, injector harnesses, installation harnesses, wiring, and installation kits are not included.
Fitment
The MOTIV ReFlex+ is a universal performance integration controller and is not limited to a single vehicle application. Vehicle-specific compatibility depends on the ECU, CAN Bus configuration, sensors, tuning platform, and installation requirements.
Compatible tuning platforms include MHD, EcuTek, MG Flasher, and bootmod3 (BM3) where supported.
