Description
Spool Performance proudly introduces a revolutionary top-mount turbo kit featuring a 5-axis machined billet exhaust manifold. This advanced machining process allows for a manifold design with ultra-short runners, maximizing heat energy retention up to the turbine while avoiding common issues such as cracking and excess weight found in cast manifolds. Additionally, the 5-axis process enables efficient flow by equalizing the wastegate port design, offering superb boost control with a single 45mm wastegate. The result is a fast-spooling, lightweight manifold that minimizes backpressure and ensures an easy installation process. The modular design of the manifold allows a wide variety of turbo options. The kit can be configured with a Spool IFX water-cooled ceramic ball bearing turbo or a Precision air-cooled turbo.
The Manifold
After extensive engineering, the manifold features a highly efficient twin-scroll flow channel with 5-axis machined wastegate ports. It’s milled from high-strength steel alloy billet blocks that offer minimal heat expansion. Short, smooth flow channels direct energy efficiently up to the turbine housing, reducing energy losses and retaining maximum heat for faster spooling and lower backpressure at higher engine speeds. This modular design can be adapted quickly for various turbocharger options.
Wastegate
The wastegate ports are designed using CFD optimization to ensure equalized flow between the turbine runners and wastegate ports, minimizing turbulence when the wastegate is closed. A single 45mm wastegate is used in the system, simplifying the kit.
Turbocharger Options
- PTE 6466 Gen2 Ball Bearing Air Cooled – 900HP – 1-year warranty
- PTE 6870 Gen2 Ball Bearing Air Cooled – 1100HP – 1-year warranty
- SPOOL IFX-900 Ball Bearing Water Cooled – 900HP – Lifetime warranty
- SPOOL IFX-1050 Ball Bearing Water Cooled – 1050HP – Lifetime warranty
- SPOOL IFX-1200 Ball Bearing Water Cooled – 1200HP – Lifetime warranty
- SPOOL IFX-1400 Ball Bearing Water Cooled – 1400HP – Lifetime warranty (available on special request)
The IFX-1400 requires a different riser on the manifold due to the larger wastegate and frame positioning.
Accessories

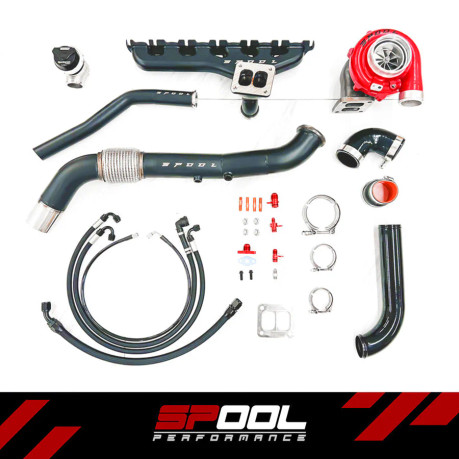

The kit is a true plug-and-play solution, including the following parts:
- Billet Exhaust Manifold
- 45mm Turbosmart wastegate with springs
- 304 Stainless steel mandrel bent downpipe with clamps
- 304 Stainless steel mandrel bent wastegate dump with clamps
- Aluminum mandrel bent lower charge pipe
- Plug-and-play water feed and drain or bypass
- Plug-and-play oil feed and drain
- T4 manifold studs and bolts
- Silicone coupler
- Lines and fittings for boost control (solenoid not included)
Optional Features
- Cerakote thermal coating for hot parts
- Custom color for compressor cover
- Upper charge pipe for stock charge pipe replacement
- High-side catch can
- Low-side PCV cap with intake port block-off
Note: 'New' merchandise may be returned for exchange or refund within 15 days from the date of shipment. 'New' merchandise must be unused and free from installation or mounting damage. Installation or modification of parts waives your right to returns, refunds, or exchanges.
