Description

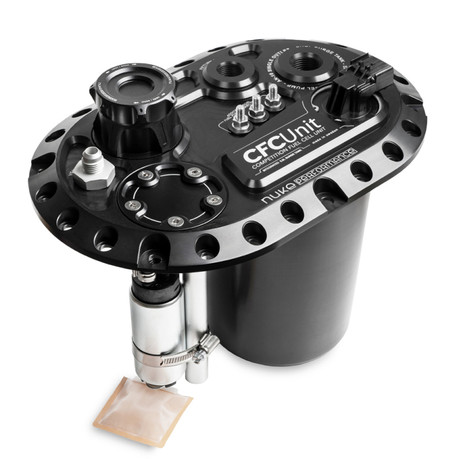

The Nuke Performance CFC Unit for Brushless Fuel Pumps is a cutting-edge, all-in-one fuel delivery solution engineered for high-performance and motorsports applications. Designed specifically to support modern brushless fuel pumps such as the Protec Cobra Compact and DeatschWerks DW440, this Competition Fuel Cell (CFC) Unit integrates a 2.0-liter surge tank and billet fuel pump hanger into a compact, lightweight assembly.
By eliminating the need for an external surge tank, this advanced system simplifies installation, reduces weight, and enhances reliability. The integrated surge tank ensures consistent fuel delivery under extreme driving conditions, effectively preventing fuel starvation during aggressive acceleration, cornering, or low fuel levels.
Advanced Engineering for Maximum Performance
Purpose-built for fuel-injected systems, the CFC Unit utilizes PWM-controlled brushless pump compatibility, minimizing heat generation while supporting multiple fuel pumps. Its innovative design also allows for venturi pickup integration, ensuring the surge tank remains filled even in demanding racing environments.
The unit is constructed from precision-machined billet aluminum, offering exceptional durability while maintaining a low-profile, space-saving footprint within the fuel cell.
Universal Fitment & Motorsport Compatibility
Designed as a direct replacement for standard fuel cell fill plates, the CFC Unit fits most FIA-homologated fuel cells using the industry-standard 6x10” 24-bolt pattern, including brands such as ATL, Fuel Safe, Radium, and more. This “drop-in surge tank” solution makes it ideal for professional racing builds and high-performance street applications.
Key Features & Benefits
- Integrated 2.0L surge tank eliminates external surge tank requirements
- Designed for brushless fuel pumps with optional venturi pickup system
- Supports 1–2 high-pressure brushless pumps and lift pump configuration
- Lightweight, compact billet aluminum construction
- Reduces fuel system complexity and potential leak points
- Compatible with gasoline, ethanol, methanol, and E85 fuels
- Single AN-10 ORB outlet for simplified plumbing
- Improved safety with fewer external components and connections
Technical Specifications
- Part Number: 150-05-204
- Minimum Mounting Depth: 197 mm (7.75”)
- Dimensions: 295 mm (L) × 194 mm (W)
- Weight: 2254 g (4.96 lb)
- Mounting Pattern: 6x10” (24-bolt standard)
- Internal Surge Tank Volume: ~2.0 liters (0.53 gallons)
- Outlet Port: AN-10 ORB
- Return Port: AN-8 ORB
- Vent Valve: AN-8 (3/4 UNF) with AN-6 adapter
- Fuel Compatibility: Gasoline, Ethanol, Methanol, E85
- Pump Capacity:
- 2 × brushless high-pressure pumps
- 1 × brushless lift pump (or 2 × brushed)
- Venturi Kit Compatibility: Yes (supports 1–2 kits)
What’s Included
- High-profile CFC Unit for brushless pumps
- Delphi 6-pin bulkhead connector with Viton seal
- Electrical connectors and fittings
- Dual billet pump bracket and adjustable mounts
- Viton gasket (ethanol-safe)
- Low-profile filler cap
- Vent safety valve and AN fittings
- Mounting hardware and accessories
