Upgrade Your Fueling System with the Most Reliable FSI HPFP on the Market

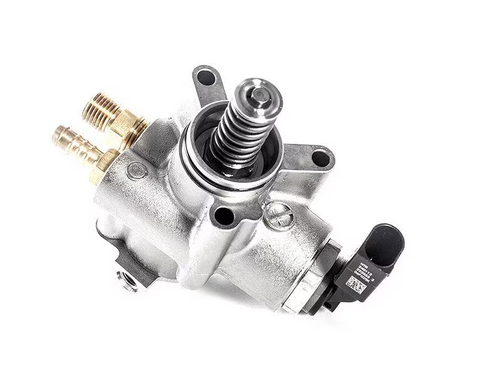

The Integrated Engineering (IE) High Pressure Fuel Pump (HPFP) Upgrade, fully assembled with a brand-new OE pump housing, delivers up to 50% more fuel displacement than stock—making it an essential upgrade for Stage 2 and big turbo builds on VW and Audi 2.0T FSI engines. Designed for up to 600HP at 7500 RPM, this bolt-on pump supports aggressive ECU tunes, larger turbos, and ethanol fuel blends with unmatched reliability.
IE’s proprietary internals feature a constant-diameter 9.8mm piston, nitrided tool steel construction, leak-free custom seal, and ultralight titanium retainer. Every unit is assembled in-house in a clean room and bench-tested on a purpose-built dyno to guarantee exceptional quality and performance.
Key Features
-
Fully assembled with new OEM housing – drop-in ready
-
Supports up to 600 HP & 7500 RPM
-
50% more displacement than the factory HPFP
-
Constant diameter 9.8mm piston for superior stability and longevity
-
Nitrided piston and cylinder – ultra-hard, wear-resistant surfaces
-
Custom spring-energized moly-disulfide seal – leak-free & friction-resistant
-
FEA-optimized titanium spring retainer – eliminates valve float
-
Retains OE spring to minimize cam follower wear
-
Assembled in a laminar flow clean room
-
Bench-tested and broken in on a fuel pump dyno
-
Engineered, manufactured, and assembled in the USA
Technical Overview
-
Displacement Increase: 50% over stock
-
Piston Size: Constant 9.8mm diameter
-
Pump Output: Supports ~600 HP at 7500 RPM
-
Materials: Proprietary tool steel alloy, nitrided surfaces, titanium retainer
-
Seal Design: Custom molybdenum disulphide spring-energized seal
-
QC Testing: Dyno-tested with fuel pressure and RPM monitoring
-
Assembly: Clean room (laminar flow hood) with strict contamination control
Reliability by Design
Why Constant-Diameter Matters:
Unlike stepped piston designs used in cheaper kits, the IE HPFP piston retains its full diameter throughout its stroke. This eliminates shaft instability, wear, and leakage. It also avoids pressure pulses that can lead to seal failure and fuel mixing with oil.
Nitrided Components for Extreme Durability:
IE adopts OEM nitriding methods for the piston and cylinder—fusing nitrogen into the outer atomic structure of the metal to achieve long-term durability without chipping or flaking like coated components. Every production batch is independently verified in a lab.
Custom-Engineered Seal:
Instead of reusing a weak OE seal, IE includes a custom-designed molybdenum disulphide-impregnated seal with spring energization for consistent pressure, reduced friction, and long life—critical for high-RPM operation.
Fitment Guide
-
VW MK5 GTI / GLI 2.0T FSI (EA113)
-
VW MK6 Golf R 2.0T TSI (EA113)
-
Audi A3 / S3 / A4 / TT / TTS 2.0T FSI (EA113)
-
Audi B7 RS4 4.2L V8 (2006–2008) — requires two pumps
-
Audi B8 S5 4.2L V8 (2008–2013) — requires two pumps
-
Mazdaspeed 3 (2007–2013)
-
Mazdaspeed 6 (2006–2007)
Fits EA113 engines only (timing belt driven). Will not fit EA888 TSI/TFSI engines.
Warranty
IE HPFP Limited Warranty
-
6 Months / Unlimited Miles – HPFP Internals
-
18 Months / Unlimited Miles – Complete New Pump Assemblies
This warranty reflects the confidence in IE's ultra-precise assembly practices, strict clean-room environment, and comprehensive dyno validation.
Installation Notes
-
Direct replacement for OE HPFP
-
No permanent modifications required
-
Requires clean, contamination-free environment during install
-
Basic tools and bench vise recommended
-
Install time: ~1–2 hours
