Description

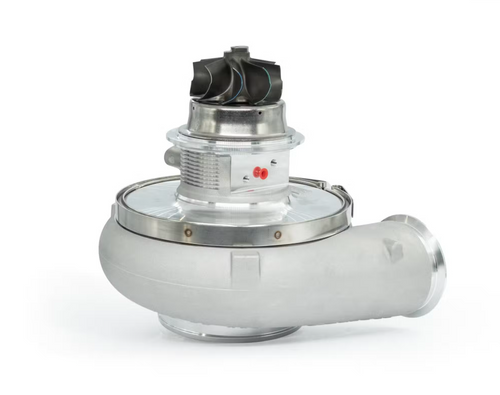

The Garrett G-XRace GXR47-76 76/109mm Ultra Street Super Core Turbocharger is built for extreme racing performance and high-horsepower drag applications. Designed with advanced XBoost technology, this universal performance turbocharger delivers exceptional airflow efficiency, allowing engines to produce massive power while maintaining reliability under high boost conditions.
Rated for up to 1700 horsepower, the GXR47-76 turbocharger is engineered for competitive motorsports, especially Ultra Street drag racing class builds requiring a 76.6mm compressor inducer. Its high-flow aerodynamic design improves efficiency at elevated flow rates, producing cooler and denser intake air to maximize combustion efficiency and overall engine output.
A lightweight aluminum backplate reduces turbocharger weight while maintaining strength and durability, helping improve spool characteristics and performance response. The integrated flange-style speed sensor port allows easy installation of a turbo speed sensor for accurate shaft speed monitoring, helping protect the turbocharger from overspeed and ensuring optimal performance and longevity.
This turbocharger features a patented design and is comparable in size to competitor frame size 7688, making it suitable for serious racing builds that require extreme airflow capability and high boost pressure.
Key Features
- G-XRace universal performance turbocharger
- 76.6mm turbine configuration
- Supports up to 1700 horsepower
- XBoost technology for increased power and efficiency
- High-flow efficiency provides cooler, denser intake air
- Lightweight aluminum backplate for reduced turbo weight
- Flange-style speed sensor port for turbo speed monitoring
- Compatible with external speed sensor installation (sold separately)
- Designed for Ultra Street drag racing class (76.6mm compressor inducer rule)
- Patented turbocharger design
- Competitor frame size equivalent: 7688 (76mm inducer / 88mm turbine exducer)
- Maximum turbo speed: 102,500 RPM
Important Notes
- Performance results depend on engine configuration, tuning, and supporting modifications
- Horsepower ratings are based on compressor map flow capability (potential flywheel horsepower)
- Operating above maximum turbo speed may cause damage or premature failure
- Professional installation and tuning are strongly recommended for racing applications
Fitment
- Universal turbocharger application
- Designed for custom high-performance and racing vehicles
- Intended for Ultra Street drag racing class vehicles with 76.6mm compressor inducer rule
- Suitable for high-horsepower engine builds requiring extreme airflow capacity
- Requires custom fabrication, custom turbo manifold, tuning, and supporting modifications
- Not vehicle-specific; compatibility depends on engine setup and performance build
Important Legal & Safety Information
Garrett performance turbochargers are designed for racing vehicles used on closed tracks only and are not legal for use on public roads or highways. Installation and use are at the owner's responsibility and risk.
Vehicle modifications may affect warranty, safety, and operating approval. Always ensure compliance with all local laws, racing regulations, and safety requirements. Proper installation, tuning, and maintenance are required for safe operation.
