Flatout Suspension 07-13 BMW X5 [GR Lite]

DISCLAIMER: This is a made to order item. The lead time for this product is 4-8 weeks.

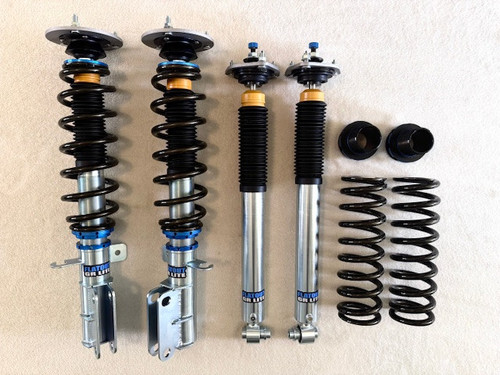

Flatout GR Lite Suspension System for 2007-2013 BMW X5

The Flatout GR Lite Suspension System is designed for BMW X5 drivers who primarily use their SUV on the street but want additional capability when road conditions deteriorate. Whether navigating rough pavement, gravel roads, or light trails, the GR Lite provides improved clearance, enhanced stability, and refined ride comfort in a complete lift suspension solution.

Optimized for a 2-inch lift (adjustable from 0–3”), this system replaces the factory shocks and springs with four fully assembled coilovers. Unlike spacer lifts or basic spring-and-shock combinations, the GR Lite features rebuildable uprights, adjustable damping, and customizable spring rates — allowing you to tailor the suspension to your specific build and driving needs.

For drivers seeking dependable performance without sacrificing daily comfort, the GR Lite delivers a true suspension upgrade rather than a simple height increase.

Why Choose the GR Lite?

Daily Driver Comfort + Extra Clearance
Maintains smooth on-road handling while increasing ground clearance for light off-road use.

Fine-Tuned for Your Build
Spring rates available up to 1200 lbs. help prevent sag when carrying added weight such as rooftop tents, gear, or cargo.

Improved Ride & Handling
Provides better alignment stability and ride quality compared to spacer lifts or entry-level suspension kits.

Complete Ready-to-Install Kit
Includes front and rear assemblies engineered for balanced comfort and durability.

Technical Specifications

• Designed for light-duty off-road use

• Lift Range: 0–3” (optimized at 2”)

• 2 Front Assemblies + 2 Rear Assemblies

• Increases suspension travel by 2” over OEM for improved droop and tire contact

• Linear Rate Springs (+5% over OEM rates)

• 20-Point Rebound Adjustable Shocks

• Rebuildable Monotube Design

• Stainless Steel Shims

• Lightweight Synthetic Shock Oil

• Highly Polished Electro-Plated Nickel Cartridges for corrosion resistance

• Rubber Bushing Upper Mounts for reduced NVH (OEM-like comfort)

• Radial Bearings in Front Assemblies for steering precision

• Brackets for sensor lines included

• Individual replacement parts available

FITMENT

2007–2013 BMW X5 – Compatible with factory suspension mounting locations
