Description
The Eventuri FK8 Civic Type-R Carbon Charge Pipe is a revolutionary addition to the performance landscape, introducing an all-carbon turbo inlet tube specifically designed for the FK8 model. With a focus on achieving optimal volume, flow quality, and temperature control, this charge pipe elevates your Civic Type-R's capabilities to new heights.
Performance Gains:
- For FK2 at Stage 2 Tune: Gain of 15-18 horsepower and 17-20 ft-lbs of torque.
- For FK8 with Stock Software: Peak gains of 5 horsepower and 5 ft-lbs, with under-4k RPM gains of 15 horsepower and 18 ft-lbs.
Key Features:
-
Volume:
- Larger Inlet Diameter: The Eventuri charge pipe features a diameter of 78mm compared to the stock 63mm, resulting in over a 53% increase in cross-sectional area along the intake flow path to the turbo. This enhanced volume facilitates unrestricted airflow, enabling the turbo to operate more efficiently and achieve peak boost levels faster while reducing turbine loading.
-
Flow Quality:
- Smooth Airflow Design: Constructed from high-temperature prepreg carbon fiber, the internal surface of the Eventuri charge pipe is exceptionally smooth. Unlike the stock cast aluminum pipe, which has a rough interior, the Eventuri design features a smooth curvature that minimizes turbulence, allowing for a more efficient flow path to the turbo.
-
Temperature Management:
- Heat Insulation Features: The stock inlet directly conducts heat from the turbo into the airflow, which can hinder performance. The Eventuri system incorporates a machined flange connected to the turbo, along with a silicone coupler featuring an integrated thermal spacer. This design prevents direct contact between the carbon elbow and the turbo, significantly reducing heat transfer and maintaining cooler intake temperatures.

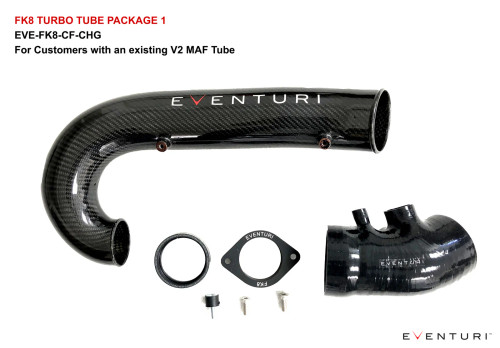

Package Includes:
- Carbon Fiber Turbo Tube
- Custom Silicone Joiner at Intake Side
- CNC Machined Turbo Flange
- Custom Silicone Coupler at Turbo Side
- Laser Cut Stainless Steel Brackets
- Anti-Vibration Mount
The Eventuri FK8 Civic Type-R Carbon Charge Pipe is designed for those who demand the best performance from their vehicles. With its innovative engineering and attention to detail, this charge pipe not only enhances power output but also improves overall engine efficiency.
Note: This item is not eligible for return.
