Description

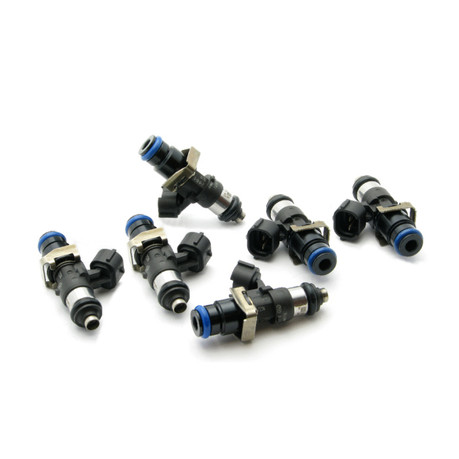

Take your high-performance 6-cylinder build to the next level with the DeatschWerks Bosch EV14 220lb/hr Fuel Injectors (Set of 6). Delivering a massive 220 lb/hr (≈2300cc/min) flow rate, these injectors are engineered for high-horsepower, forced-induction, or ethanol-fueled applications demanding consistent, high-volume fuel delivery.
Featuring a 48mm length and 14mm top o-ring, this EV14-based injector is a perfect fit for a wide range of engines. Each set is dynamically flow-tested and balanced to within ±2% across the full pulse width range, ensuring reliable performance under varying loads and RPMs.
DW injectors are fully compatible with gasoline and E85, and come characterized to SAE J1832 standards, giving tuners the critical data needed for precise engine calibration. Whether you're pushing boost on a turbocharged inline-6 or prepping for the track, these injectors are built to perform.
Key Features:
-
Flow Rate: 220 lb/hr (≈2300cc/min)
-
Injector Dimensions: 48mm length | 14mm top o-ring
-
Bosch EV14 High Impedance Core
-
Precision flow-matched within ±2%
-
Multi-point dynamic flow testing
-
E85 and gasoline compatible
-
SAE J1832 injector characterization
-
Tuning data available for easy calibration
-
Backed by a 3-Year Warranty
Applications:
Ideal for high-powered 6-cylinder engines running forced induction, E85, or needing maximum fueling capacity for race and track performance.
About DeatschWerks:
DeatschWerks stands at the forefront of performance fuel delivery systems. With one of the most diverse injector offerings in the industry, DW provides high-quality, flow-matched injectors with complete tuning support for EFI and GDI applications.
