Description
The DBA Front Level 5 Rotor & Pad Kit combines DBA 4000 Series T3 slotted front rotors with DBA XP650 Xtreme Performance front brake pads to deliver a significant performance upgrade for compatible Toyota 4Runner and FJ Cruiser applications.
The kit pairs DBA DB1482XP XP650 Front Brake Pads with DBA42736S 4000 Series T3 Front Slotted Rotors. The combination is designed to provide stronger braking performance, improved thermal management, consistent pad contact, and reliable stopping power during demanding street, SUV, 4x4, and performance driving.
The 4000 Series T3 rotors use DBA's high-carbon alloyed iron construction, Thermal Stability Profiling, patented Kangaroo Paw ventilation, and tri-symmetrical slotting. The XP650 pads use a high-performance friction formulation designed for strong initial bite, consistent braking, and high-temperature performance.
Fitment
2012 Toyota 4Runner – Front
2011–2012 Toyota FJ Cruiser – Front
Brake Position: Front
Kit Number: DBAKIT50032
Included Components:
- 1 × DBA DB1482XP Front XP650 Brake Pad Set
- 2 × DBA42736S Front 4000 Series T3 Slotted Rotors
The DBA42736S rotors are specifically listed for the 2012 Toyota 4Runner and 2011–2012 Toyota FJ Cruiser applications represented by the kit title. The DB1482XP pad itself has broader application coverage, including multiple Toyota and Lexus vehicles, so verify the exact vehicle and brake configuration before ordering.
What's Included
- 1 × DBA DB1482XP XP650 Xtreme Performance Front Brake Pad Set
- 2 × DBA42736S 4000 Series T3 Front Slotted Rotors
One complete kit services one front axle.
Key Features
- Level 5 Performance Kit: Combines DBA XP650 performance pads with DBA 4000 Series T3 slotted rotors.
- XP650 Xtreme Performance Pads: Designed for strong and consistent braking performance under demanding conditions.
- High-Temperature Performance: DB1482XP pads are designed to maintain consistent braking performance at temperatures up to approximately 550°C / 1022°F.
- Strong Initial Bite: High-performance friction material provides responsive braking characteristics.
- 4000 Series T3 Rotors: DBA's performance-oriented 4000 Series T3 rotors are engineered for upgraded braking applications.
- Tri-Symmetrical Slotting: T3 slot design provides additional exit points for brake gases and friction dust while supporting consistent pad contact.
- Kangaroo Paw Ventilation: Patented internal vane design helps improve heat dissipation.
- High-Carbon Alloyed Iron: Rotor construction is designed to withstand demanding thermal conditions.
- Thermal Stability Profiling: DBA's TSP process helps improve rotor thermal stability during repeated braking.
- Improved Brake Consistency: Slotted rotor and high-performance pad combination helps maintain braking performance during repeated stops.
- Direct Replacement Design: DBA42736S is designed as a direct-replacement front rotor for the specified applications.
- SUV & 4x4 Performance: Suitable for demanding street, SUV, 4x4, and performance driving applications.
Specifications
- Brand: DBA
- Kit Part Number: DBAKIT50032
- Product Type: Front Rotor & Pad Kit
- Kit Level: Level 5
- Application: Toyota 4Runner / Toyota FJ Cruiser
- Brake Position: Front
- Brake Pad: DB1482XP
- Brake Pad Series: XP650 Xtreme Performance
- Brake Rotor: DBA42736S
- Rotor Series: 4000 Series T3
- Rotor Design: Slotted
- Rotor Construction: High-Carbon Alloyed Iron
- Rotor Ventilation: Kangaroo Paw
- Rotor Technology: Thermal Stability Profiling
- Pad Material: High-Performance Friction Material
- Pad Quantity: 4
- Pad Width: 134.6 mm
- Pad Height: 77.1 mm
- Pad Thickness: 16.9 mm
- Rotor Quantity: 2

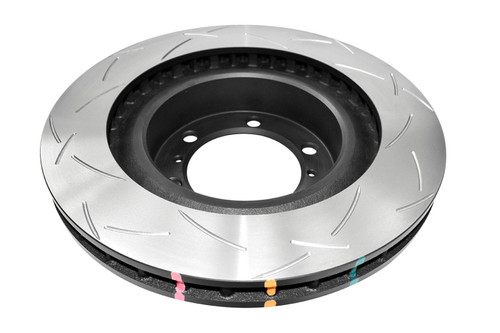

4000 Series T3 Rotor Technology
The DBA42736S is part of DBA's 4000 Series T3 performance rotor range. The rotor combines high-carbon alloyed iron with Thermal Stability Profiling and DBA's patented Kangaroo Paw internal ventilation system.
The T3 tri-symmetrical slot design adds precisely machined slots to improve the evacuation of friction gases and dust while maintaining consistent pad contact. The design is intended to provide a quieter, smoother, and more responsive pedal feel compared with traditional slot configurations.
DBA's 4000 Series T3 rotors are designed for upgraded performance applications including street driving, SUVs, 4x4 vehicles, track days, rally, and other demanding applications.
XP650 Xtreme Performance Brake Pads
The DBA DB1482XP XP650 front brake pads are designed for high-performance braking applications where strong initial response and consistent friction are important.
The pads use a performance-oriented friction formulation engineered for braking temperatures up to approximately 550°C / 1022°F. The application-specific pad dimensions are approximately 134.6 mm wide × 77.1 mm high × 16.9 mm thick.
Installation
The DBAKIT50032 is designed to replace the compatible factory front braking components with DBA performance rotors and pads.
Install the components according to the vehicle manufacturer's recommended procedures and complete the appropriate brake-pad bedding process after installation.
Always verify the exact vehicle, model year, trim, and front brake configuration before ordering.
