Description
The DBA 05-22 Toyota Tacoma Front Level 1 Rotor & Pad Kit combines DBA Street Series ceramic brake pads with En-Shield coated front brake rotors to provide a complete OE-style replacement solution for compatible Toyota Tacoma front brake applications.
The kit pairs DBA DB1482SS Street Series Front Brake Pads with DBA2716E Street Series En-Shield Standard Front Rotors. The DB1482SS pads use a ceramic, copper-free friction formulation designed for consistent everyday braking performance, while the DBA2716E rotors feature a plain friction surface, Kangaroo Paw ventilation, and DBA's En-Shield corrosion-resistant coating.
This combination is designed for daily-driven Tacoma applications where reliable braking performance, consistent pedal feel, and corrosion protection are important.
Fitment
2005–2022 Toyota Tacoma – Front
Brake Position: Front
Kit Part Number: DBAKIT10011
Included Components:
- 1 × DBA DB1482SS Street Series Front Brake Pad Set
- 2 × DBA2716E En-Shield Standard Front Brake Rotors
The kit is listed for 2005–2022 Toyota Tacoma applications. Exact compatibility can vary by model year, trim, lug configuration, and factory brake setup. Verify your Tacoma's exact brake configuration before ordering.
What's Included
- 1 × DBA DB1482SS Street Series Front Brake Pad Set
- 2 × DBA2716E Street Series En-Shield Standard Front Brake Rotors
One complete kit services one front axle.
Key Features
- Complete Front Brake Kit: Includes one front axle pad set and two front rotors.
- Street Series Brake Pads: Designed for reliable OE-level or better everyday braking performance.
- Ceramic Friction Material: Application-specific ceramic formulation provides consistent street braking characteristics.
- Copper-Free Construction: Friction material is designed without copper.
- Chamfered and Slotted Pads: Application-specific features help promote consistent braking and reduce noise and vibration.
- Premium Shims: Designed to help reduce brake noise.
- Bedding-In Stripe: Helps improve initial braking effectiveness and assist the bedding process.
- En-Shield Rotor Coating: Zinc/aluminum coating helps protect exposed rotor surfaces from corrosion.
- Plain Rotor Surface: Smooth friction surface provides consistent pad contact.
- Kangaroo Paw Ventilation: DBA's internal vane design helps improve heat dissipation.
- OE-Style Replacement: Designed for compatible factory Tacoma brake systems.
- Matched DBA Components: Street Series pads are designed to complement Street Series rotors for improved first-application effectiveness and reduced bed-in time.
Specifications
- Brand: DBA
- Kit Part Number: DBAKIT10011
- Product Type: Front Rotor & Pad Kit
- Kit Level: Level 1
- Application: Toyota Tacoma
- Model Years: 2005–2022
- Brake Position: Front
- Brake Pad: DB1482SS
- Brake Pad Series: Street Series
- Brake Pad Material: Ceramic
- Brake Pad Construction: Copper-Free
- Brake Rotor: DBA2716E
- Rotor Series: Street Series
- Rotor Variant: En-Shield
- Rotor Design: Plain
- Rotor Ventilation: Kangaroo Paw Vents
- Rotor Diameter: 319 mm
- Rotor Thickness: 28 mm
- Minimum Thickness: 26 mm
- Rotor Height: 67.5 mm
- Centering Diameter: 108 mm
- Lug Holes: 6
- Pitch Circle Diameter: 139.70 mm
- Rotor Quantity: 2
- Pad Quantity: 4
Street Series Brake Performance
DBA Street Series brake pads are developed for the OE replacement market with three primary objectives: OE-level or better performance, application-specific friction formulations, and compatibility with DBA Street Series disc rotors.
The DB1482SS uses a ceramic, copper-free friction formulation and incorporates application-specific features including chamfers, slots, shims, post-curing, and a bedding-in stripe.
DBA recommends pairing Street Series pads with Street Series rotors to improve first-application effectiveness and reduce bed-in time.

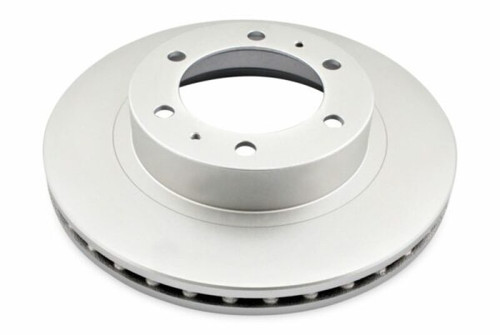

En-Shield Rotor Technology
The DBA2716E incorporates DBA's En-Shield corrosion-resistant coating.
The En-Shield process applies a zinc/aluminum water-based coating across the rotor surface before baking it onto the rotor. This provides corrosion protection for the exposed non-friction surfaces while maintaining a clean appearance throughout service life.
The rotor also uses DBA's Kangaroo Paw ventilation system, which is designed to improve heat dissipation compared with conventional straight-vane rotor designs.
Installation
The DBAKIT10011 is designed as a replacement front brake kit for compatible Toyota Tacoma applications.
Install the rotors and pads according to the vehicle manufacturer's recommended procedures and complete the appropriate brake bedding process after installation.
Always verify the exact Tacoma model year, trim, lug configuration, and factory front brake setup before ordering.
