Description
The DBA 05-07 Toyota Tacoma / 06+ Lexus GX470 Front Rotor & Pad Kit Level 5 is a performance-focused front brake upgrade combining DBA 4000 Series T3 slotted rotors with XP650 Xtreme Performance brake pads.
Designed for compatible 2005–2007 Toyota Tacoma models with 6-lug configurations and 2006–2009 Lexus GX470 applications, this Level 5 kit is engineered to provide stronger braking performance, improved heat management, and consistent braking response during demanding street and performance driving.
The kit pairs DBA42716S high-carbon 4000 Series T3 slotted rotors with DB1482XP XP650 Xtreme Performance front brake pads. Together, the components provide a performance-oriented braking package while retaining a direct-replacement configuration for the compatible factory brake system.
Fitment
2005–2007 Toyota Tacoma – Front
6-Lug Configuration
Compatible Tacoma applications include:
- 2005–2007 Tacoma Base
- 2005–2007 Tacoma PreRunner
- 2005–2007 Tacoma X-Runner
2006–2009 Lexus GX470 – Front
Lexus GX470 Base
Brake Position: Front
Rotor Size: 319 × 28 mm
Important: The Toyota Tacoma application is specifically for the 6-lug configuration. Verify the vehicle's exact brake and rotor configuration before ordering.
What's Included
- 2 × DBA42716S – 4000 Series T3 Front Slotted Brake Rotors
- 1 × DB1482XP – XP650 Xtreme Performance Front Brake Pad Set
The two rotors provide the complete front axle rotor replacement, while the pad set contains the pads required for one complete front axle.
Key Features
- Level 5 Performance Kit: Combines DBA 4000 Series performance rotors with XP650 Xtreme Performance brake pads.
- 4000 Series T3 Rotors: High-performance rotors designed for demanding street and performance applications.
- T3 Slotted Design: CNC-machined tri-symmetrical slots help maintain consistent pad contact and assist with the evacuation of friction gases and debris.
- Kangaroo Paw Ventilation: Internal vane technology increases cooling surface area and promotes improved heat dissipation.
- High-Carbon Construction: High-carbon alloyed iron is engineered to handle increased braking heat and repeated thermal cycles.
- Thermal Stability Profiling: DBA heat-treatment technology helps improve rotor stability and durability.
- XP650 Xtreme Performance Pads: Designed for high-performance street driving and demanding braking applications.
- Carbon-Fibre Friction Material: Semi-metallic carbon-fibre formulation provides strong and consistent friction response.
- High-Temperature Performance: Designed to maintain effective braking performance under elevated operating temperatures.
- Scorched Friction Surface: Pre-burnished friction material helps improve initial braking performance and reduce bedding time.
- Application-Specific Design: Components are engineered for the specific front brake configuration.
- Performance-Oriented Combination: Pairs DBA XP650 pads with 4000 Series T3 slotted rotors for an upgraded braking package.
Specifications
- Brand: DBA
- Kit Part Number: DBAKIT50011
- Product Type: Front Rotor & Pad Kit
- Application: Toyota Tacoma / Lexus GX470
- Brake Position: Front
- Tacoma Fitment: 2005–2007, 6-Lug
- GX470 Fitment: 2006–2009
- Rotor Part Number: DBA42716S
- Pad Part Number: DB1482XP
- Rotor Series: 4000 Series T3
- Rotor Design: Slotted
- Rotor Diameter: 319 mm
- Rotor Thickness: 28 mm
- Rotor Height: 67.5 mm
- Center Bore: 108 mm
- Lug Holes: 6
- PCD: 139.7 mm
- Rotor Vane Design: Kangaroo Paw
- Rotor Construction: High-Carbon Alloyed Iron
- Pad Series: XP650 Xtreme Performance
- Pad Material: Semi-Metallic Carbon Fibre
- Rotor Quantity: 2
- Pad Set Quantity: 1 Front Axle Set
4000 Series T3 Rotor Technology

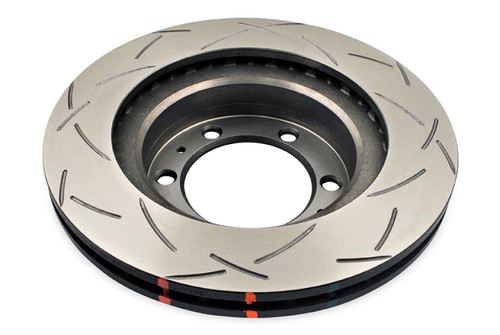

The DBA42716S is part of DBA's 4000 Series T3 range and features a tri-symmetrical slot design developed to maintain consistent braking performance while helping remove friction gases and debris from the braking surface.
The rotor uses DBA's Kangaroo Paw ventilation system, which increases the internal cooling surface area compared with conventional vane designs. Combined with high-carbon alloyed iron construction and Thermal Stability Profiling, the rotor is designed to withstand repeated heat cycles and demanding braking conditions.
XP650 Xtreme Performance Brake Pads
The included DB1482XP brake pads are part of DBA's XP650 Xtreme Performance range. The pads use a semi-metallic carbon-fibre friction formulation designed to provide strong initial bite, consistent friction characteristics, and reliable performance across a broad temperature range.
The friction material is designed for demanding applications where increased braking performance is desired, making the XP650 compound well suited to performance-oriented street driving and other high-load braking conditions.
Installation
The DBAKIT50011 is designed as a direct-replacement front brake upgrade for compatible Toyota Tacoma and Lexus GX470 applications.
Install the rotors and brake pads according to the vehicle manufacturer's recommended procedures and complete the appropriate brake bedding process after installation.
Always verify the 6-lug configuration on the Tacoma and the exact brake configuration on the vehicle before ordering.
