Description

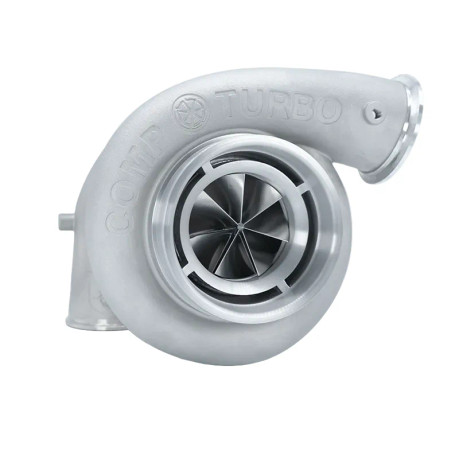

The Comp Turbo CT6RX-98106 is a cutting-edge 2600 horsepower Triplex Ceramic Ball Bearing Oil-Less Water-Cooled turbocharger, engineered for extreme performance, reliability, and versatility in high-output builds. By eliminating traditional oil lines, this advanced design reduces installation complexity while retaining efficient water cooling for superior thermal control under demanding conditions.
Built around Comp Turbo’s patented Triplex ceramic ball bearing system, the CT6RX-98106 delivers ultra-smooth operation, rapid spool characteristics, and exceptional durability. This turbocharger is suitable for high-performance street applications, competitive track use, and extreme racing environments, with compatibility for engine bay, mid-mount, and remote-mount turbo systems.
With a lightweight billet aluminum center section, high-flow compressor and turbine wheels, and fully rebuildable construction, the CT6RX-98106 is designed to support serious power levels while maintaining long-term serviceability and performance.
Key Features
• Patented Triplex ceramic ball bearing oil-less water-cooled system for faster spool and improved durability
• Designed for high-performance street and track applications
• Suitable for engine bay, mid-mount, and remote-mount turbo systems
• Lightweight billet aluminum center section
• CTRX ultra slim hub 7+7 blade compressor wheel, 98mm
• High-flow 9-blade turbine wheel, 106mm
• Standard rotation configuration
• Available with T6 or V-band inlet turbine housings
• Fully rebuildable and upgradeable design
• Water-cooled bearing housing with 3/8 NPT female inlet and outlet ports
• Maintenance grease fitting for simplified servicing
• Horizontal and vertical mounting capability
Power & Engine Specifications
• Minimum horsepower rating: 1000 HP
• Maximum horsepower rating: 2600 HP
• Minimum engine displacement: 3.0 liters
• Maximum engine displacement: 12.0 liters
Compressor Housing Specifications
• Compressor inlet diameter: 6.0 inches
• Compressor outlet diameter: 3.5 inches
• A/R ratio: 0.88
• Pressure port: 1/8 NPT
Compressor Wheel Specifications
• Compressor inducer diameter: 98 mm
• Compressor major diameter: 140 mm
Turbine Wheel Specifications
• Turbine inducer diameter: 112 mm
• Turbine exducer diameter: 106 mm
Fitment / Application
• Universal turbocharger for custom high-horsepower applications
• Compatible with a wide range of engines from 3.0L to 12.0L
• Designed for custom fabrication setups including street, track, drag racing, and extreme performance builds
• Vehicle-specific fitment is dependent on turbo system design and fabrication
Recommended Service Interval
• Normal street use: Apply 8 pumps of grease every 3,000 miles
• Extreme street use: Apply 8 pumps of grease every 1,500 miles
• Extreme drag race use: Apply 8 pumps of grease prior to each race event
Warranty Information
All Comp Turbo turbochargers are backed by a 2-Year Warranty, ensuring confidence in performance and craftsmanship.
Warranty Coverage
• Defects in materials and workmanship
• Repair or replacement during the warranty period at no additional cost
Warranty Terms
• Valid for two years from the original purchase date
• Applies only when used and maintained according to Comp Turbo guidelines
Comp Turbo stands behind every turbocharger it produces, delivering uncompromising quality, performance, and customer support for serious enthusiasts and professionals alike.
To ensure the highest quality, Comp Turbo kits are built to order. Most orders will take 3-5 weeks to ship but some kits can take longer. Once you place your order, the order will not be cancellable for any reason.
