Description

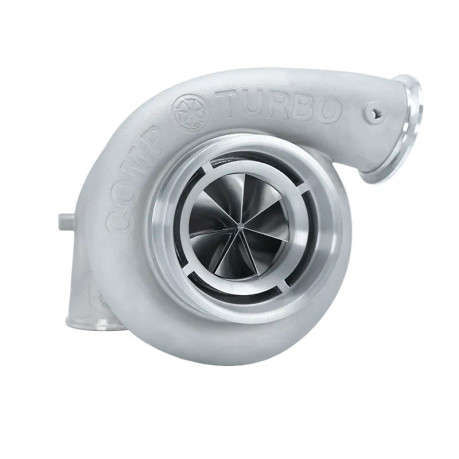

The Comp Turbo CT6RX-91106 is a high-performance 2300HP turbocharger engineered for extreme street, track, and drag racing applications. Utilizing Comp Turbo’s patented Triplex Ceramic Ball Bearing oil-less system, it removes traditional oil lines while maintaining water cooling for superior thermal management under high boost and RPM conditions.
Built with a lightweight billet aluminum center section, a 91mm CTRX Ultra Slim Hub 7+7 compressor wheel, and a 106mm high-flow 9-bladed turbine wheel, the CT6RX-91106 delivers maximum airflow, durability, and performance. Fully rebuildable and upgradeable, this turbo is suitable for engine bay, mid-mount, and remote-mount configurations.
Key Features
-
Patented Triplex Ceramic Ball Bearing oil-less water-cooled system
-
Eliminates traditional oil feed and return lines
-
Designed for extreme high-horsepower applications
-
Suitable for street, track, and drag racing use
-
Recommended for engine bay, mid-mount, and remote-mount turbo systems
-
Lightweight billet aluminum center section
-
CTRX Ultra Slim Hub 7+7 compressor wheel, 91mm
-
High-flow 9-bladed turbine wheel, 106mm
-
Standard rotation configuration
-
Available with T6 & V-Band inlet turbine housings
-
Fully rebuildable and upgradeable
-
Water-cooled bearing housing with 3/8 NPT female inlet and outlet ports
-
Maintenance grease fitting included
-
Supports horizontal and vertical installation
Performance Specifications
-
Minimum horsepower: 1000 HP
-
Maximum horsepower: 2300 HP
-
Minimum engine displacement: 3.0 liters
-
Maximum engine displacement: 12.0 liters
Compressor Housing Specifications
-
Compressor inlet: 6 inch
-
Compressor outlet: 3.5 inch
-
A/R ratio: 0.88
-
Pressure port: 1/8 NPT
Compressor Wheel Specifications
-
Compressor inducer diameter: 91 mm
-
Compressor major diameter: 140 mm
Turbine Wheel Specifications
-
Turbine inducer diameter: 112 mm
-
Turbine exducer diameter: 106 mm
Fitment & Application Information
-
High-performance universal turbocharger
-
Compatible with engines producing 1000–2300 HP
-
Compatible with engine displacements from 3.0L to 12.0L
-
Recommended for extreme street, track, and drag racing applications
-
Suitable for engine bay, mid-mount, and remote-mount turbo systems
-
T6 or V-Band inlet turbine housing options
-
Standard rotation configuration
-
Supports horizontal and vertical mounting
Recommended Service Interval
-
Normal street use: Apply 8 pumps of grease every 3,000 miles
-
Extreme street use: Apply 8 pumps of grease every 1,500 miles
-
Extreme drag racing: Apply 8 pumps of grease prior to each race event
Warranty Information
2-Year Comp Turbo Warranty
All Comp Turbo turbochargers are backed by a 2-year warranty, ensuring long-term reliability and performance.
Warranty Coverage
-
Defects in materials and workmanship
-
Repair or replacement of the turbocharger at no additional cost during the warranty period
Warranty Terms
-
Warranty valid for two years from the purchase date
-
Applies to turbochargers used according to proper maintenance and operational guidelines
Comp Turbo delivers high-performance engineering, premium build quality, and customer-focused support, making the CT6RX-91106 a top choice for extreme horsepower applications.
To ensure the highest quality, Comp Turbo kits are built to order. Most orders will take 3-5 weeks to ship but some kits can take longer. Once you place your order, the order will not be cancellable for any reason.
