Description

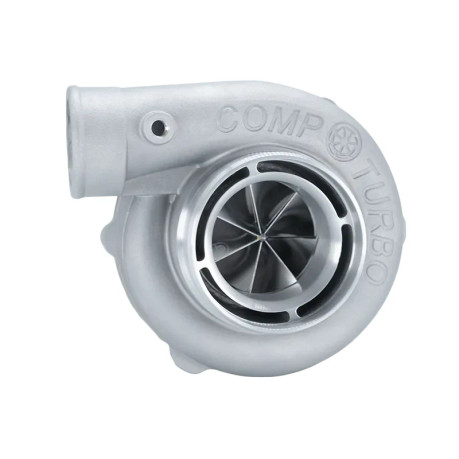

The Comp Turbo CT4RX-6875 Triplex Ceramic Ball Bearing Oil-Lubricated Reverse Rotation Turbocharger is engineered for extreme performance applications producing up to 1300 horsepower. Utilizing Comp Turbo’s patented triplex ceramic ball bearing system, this turbocharger delivers faster spool response, reduced friction, and increased durability compared to conventional journal bearing designs.
Designed for demanding street and track environments, the CT4RX-6875 features a lightweight billet aluminum center section, an advanced CTRX ultra slim hub compressor wheel, and a high-flow turbine wheel capable of supporting large displacement engines and high boost levels. This turbocharger is fully rebuildable and upgradeable, making it an ideal choice for enthusiasts seeking reliable, high-speed boost performance with minimal lag.
Features
• Patented triplex ceramic ball bearing system for smooth operation, faster spool, and improved durability
• Engineered for high-performance street and track applications
• Lightweight billet aluminum center section
• CTRX ultra slim hub compressor wheel, 68mm
• High-flow 9-blade turbine wheel, 75mm
• Standard rotation configuration
• Available with T4 and V-band inlet turbine housings
• Fully rebuildable and upgradeable design
Performance Specifications
• Minimum horsepower: 400 HP
• Maximum horsepower: 1300 HP
• Minimum engine displacement: 2.0L
• Maximum engine displacement: 5.0L
Compressor Housing Specifications
• Inlet size: 4.0 inches
• Outlet size: 2.5 inches
• A/R ratio: 0.70
Compressor Wheel Specifications
• Compressor inducer diameter: 68 mm
• Compressor major diameter: 93 mm
Bearing Housing Fitting Threads
• Oil feed fitting: 1/8 NPT female
• Oil drain fitting: 1/2 NPT female
Turbine Wheel Specifications
• Turbine inducer diameter: 82 mm
• Turbine exducer diameter: 75 mm
2-Year Warranty Coverage
Every Comp Turbo turbocharger includes a 2-year warranty, ensuring long-term reliability and peace of mind.
What’s Covered
• Defects in materials and workmanship
• Repair or replacement during the warranty period at no additional cost
Warranty Terms
• Warranty valid for two years from the purchase date
• Applies only to turbochargers used with proper maintenance and operating conditions
Comp Turbo stands behind its products with a customer-first approach, delivering proven performance, durability, and dependable support.
To ensure the highest quality, Comp Turbo kits are built to order. Most orders will take 3-5 weeks to ship but some kits can take longer. Once you place your order, the order will not be cancellable for any reason.
