Description

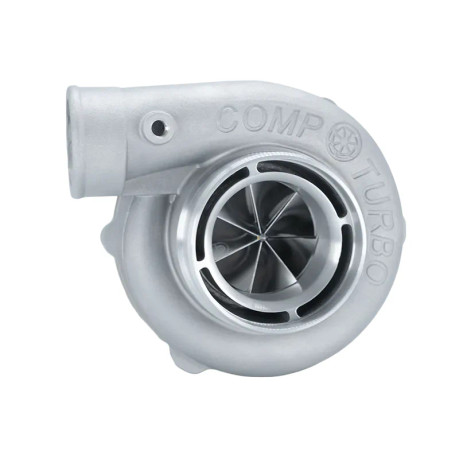

The Comp Turbo CT4RX-6467 Reverse Rotation is a 1100 horsepower Triplex Ceramic Ball Bearing oil-lubricated turbocharger designed for extreme performance applications requiring reverse rotation configuration. Built for maximum efficiency, durability, and responsiveness, this turbocharger delivers high boost capability with reduced friction and improved spool characteristics compared to traditional journal bearing designs.
At the core of the CT4RX-6467 is Comp Turbo’s patented triplex ceramic ball bearing system, engineered to maintain stability at high shaft speeds while extending service life under demanding conditions. The lightweight billet aluminum center section, combined with a high-flow compressor and turbine wheel package, ensures consistent airflow, fast response, and reliable power delivery for both street-driven and track-focused builds.
Fully rebuildable and upgradeable, the CT4RX-6467 is an excellent solution for high-horsepower engines requiring reverse rotation turbocharger configuration with minimal lag and maximum reliability.
Key Features
• Patented triplex ceramic ball bearing system for smoother operation and faster spool
• Oil-lubricated bearing system for enhanced durability
• Designed for high-performance street and track applications
• Lightweight billet aluminum center section
• CTRX ultra slim hub compressor wheel, 64mm
• High-flow 9-blade turbine wheel, 67mm
• Reverse rotation turbocharger configuration
• Available with T4 or V-band inlet turbine housings
• Fully rebuildable and upgradeable
Power & Engine Specifications
• Minimum horsepower rating: 500 HP
• Maximum horsepower rating: 1100 HP
• Minimum engine displacement: 2.0 liters
• Maximum engine displacement: 4.0 liters
Compressor Housing Specifications
• Compressor inlet diameter: 4.0 inches
• Compressor outlet diameter: 2.5 inches
• A/R ratio: 0.70
Compressor Wheel Specifications
• Compressor inducer diameter: 64 mm
• Compressor major diameter: 93 mm
Bearing Housing Fitting Threads
• Oil feed port: 1/8 NPT female
• Oil drain port: 1/2 NPT female
Turbine Wheel Specifications
• Turbine inducer diameter: 74 mm
• Turbine exducer diameter: 67 mm
Fitment / Application
• Universal reverse rotation turbocharger for custom performance applications
• Designed for engines ranging from 2.0L to 4.0L
• Suitable for high-horsepower street builds and competitive track use
• Vehicle-specific fitment depends on turbo system design and fabrication
Warranty Information
All Comp Turbo turbochargers are protected by a 2-Year Manufacturer Warranty, ensuring confidence in quality and long-term performance.
Warranty Coverage
• Defects in materials and workmanship
• Repair or replacement at no additional cost during the warranty period
Warranty Terms
• Warranty is valid for two years from the original purchase date
• Applies only to turbochargers operated and maintained according to Comp Turbo guidelines
The Comp Turbo CT4RX-6467 Reverse Rotation turbocharger delivers uncompromising power, fast response, and proven reliability for serious high-horsepower builds.
