Description

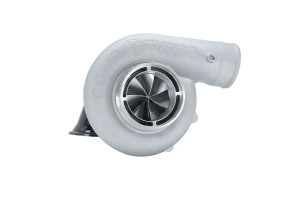

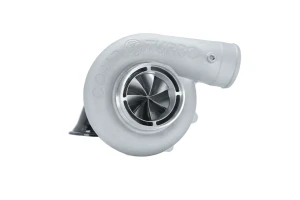

The Comp Turbo CT43RX-6875 Triplex Ceramic Ball Bearing Oil Lubricated Turbocharger is engineered for high-horsepower applications that demand efficiency, durability, and rapid boost response. Rated for up to 1300 horsepower, this turbocharger features Comp Turbo’s patented triplex ceramic ball bearing system, which significantly reduces friction, improves spool time, and extends service life compared to traditional journal bearing designs.
Designed for both street and track use, the CT43RX-6875 utilizes a lightweight billet aluminum center section combined with advanced compressor and turbine wheel technology to support aggressive boost levels while maintaining consistent performance. Fully rebuildable and upgradeable, this turbocharger is an excellent choice for enthusiasts seeking reliable, high-speed boost with minimal lag.
Features
• Patented triplex ceramic ball bearing system for ultra-smooth operation and faster spool
• Oil-lubricated bearing design for proven durability and longevity
• Engineered for high-performance street and track applications
• Lightweight billet aluminum center section
• CTRX ultra slim hub compressor wheel (68mm)
• High-flow 9-blade turbine wheel (75mm)
• Standard rotation configuration
• Available with T4 or V-band inlet turbine housings
• Fully rebuildable and upgradeable
Power & Engine Specifications
• Minimum horsepower: 500 HP
• Maximum horsepower: 1300 HP
• Minimum engine displacement: 2.0L
• Maximum engine displacement: 6.0L
Compressor Housing Specifications
• Inlet diameter: 4.0 inches
• Outlet diameter: 3.0 inches
• A/R ratio: 0.85
Compressor Wheel Specifications
• Compressor inducer diameter: 68 mm
• Compressor major diameter: 93 mm
Bearing Housing Fitting Threads
• Oil feed: 1/8 NPT female
• Oil drain: 1/2 NPT female
Turbine Wheel Specifications
• Turbine inducer diameter: 82 mm
• Turbine exducer diameter: 75 mm
Warranty Information
All Comp Turbo turbochargers are backed by a comprehensive 2-year warranty.
Warranty Coverage
• Defects in materials and workmanship
• Repair or replacement during the warranty period at no additional cost
Warranty Terms
• Warranty is valid for two years from the original purchase date
• Applies to turbochargers used and maintained according to proper operating guidelines
Comp Turbo stands behind the quality, performance, and reliability of every turbocharger, ensuring long-term confidence and performance for demanding builds.
To ensure the highest quality, Comp Turbo kits are built to order. Most orders will take 3-5 weeks to ship but some kits can take longer. Once you place your order, the order will not be cancellable for any reason.
