Description

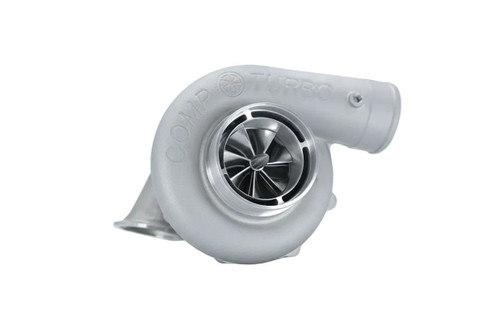

The Comp Turbo CT43R-7675 Dynamic 360° Journal Bearing Turbocharger is engineered for extreme horsepower applications requiring exceptional durability, airflow, and boost response. Designed to support up to 1250 horsepower, this turbo is an excellent choice for high-performance street, track, and drag racing builds.
Featuring a 360° journal bearing system, the CT43R-7675 delivers reliable, cost-effective performance while maintaining excellent spool characteristics. A CTR billet aluminum 7+7 extended tip compressor wheel and a high-flow Inconel 713C turbine wheel provide outstanding airflow efficiency and strong top-end power.
Built with premium materials and a fully rebuildable, upgradeable design, the CT43R-7675 is designed for long-term reliability in demanding high-boost applications. Every turbocharger is built to order by Comp Turbo and backed by a comprehensive 2-year warranty.
Key Features
-
360° journal bearing system for durable and cost-effective performance
-
Suitable for street, track, and drag racing use
-
CTR billet aluminum 7+7 extended tip compressor wheel
-
76mm compressor inducer
-
Inconel 713C high-flow 10-blade turbine wheel
-
75mm turbine exducer
-
Titanium bullet nose nut
-
Fully rebuildable and upgradeable design
Performance Specifications
-
Minimum horsepower: 445 HP
-
Maximum horsepower: 1250 HP
-
Minimum engine displacement: 2.0L
-
Maximum engine displacement: 7.0L
Compressor Housing Specifications
-
Inlet size: 4 inches
-
Outlet size: 3 inches
-
A/R ratio: 0.85
-
Pressure port: 1/8 NPT
Compressor Wheel Specifications
-
Compressor inducer: 76mm
-
Compressor major diameter: 102mm
Bearing Housing Specifications
-
Oil feed: 1/8 NPT female
-
Oil drain flange threads: 8mm x 1.25
Turbine Wheel Specifications
-
Turbine inducer: 82mm
-
Turbine exducer: 75mm
Fitment
-
Universal performance turbocharger
-
Compatible with gasoline engines from 2.0L to 7.0L
-
Designed for builds targeting 445–1250 horsepower
-
Suitable for street, track, and drag racing applications
-
Professional installation and custom tuning required
2-Year Warranty
All Comp Turbo turbochargers include a comprehensive 2-year warranty.
What’s Covered
-
Defects in materials and workmanship
-
Repair or replacement at no additional cost during the warranty period
Warranty Terms
-
Valid for two years from the purchase date
-
Applies to turbochargers operated with proper maintenance and installation
With the CT43R-7675, Comp Turbo delivers uncompromising performance, durability, and confidence for serious high-horsepower street, track, and drag racing builds.
To ensure the highest quality, Comp Turbo kits are built to order. Most orders will take 3-5 weeks to ship but some kits can take longer. Once you place your order, the order will not be cancellable for any reason.
