Description

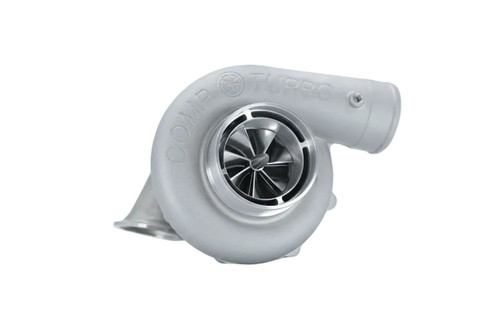

The Comp Turbo CT43R-6875 Dynamic 360° Journal Bearing Turbocharger is designed for high-performance street, track, and drag racing applications that demand exceptional boost response and durability. Rated to support up to 1150 horsepower, this turbo features a 360° journal bearing system that provides dependable, cost-effective performance in extreme conditions.
Equipped with a CTR billet aluminum 7+7 extended tip compressor wheel and a high-flow Inconel 713C turbine wheel, the CT43R-6875 delivers strong top-end power and efficient airflow while maintaining excellent spool characteristics. Its fully rebuildable and upgradeable design ensures long-term reliability and adaptability for future performance enhancements.
Each turbocharger is built to order by Comp Turbo and comes backed by a comprehensive 2-year warranty, giving confidence for high-performance builds.
Key Features
-
360° journal bearing system for durable, cost-effective performance
-
Suitable for street, track, and drag racing use
-
CTR billet aluminum 7+7 extended tip compressor wheel
-
68mm compressor inducer
-
Inconel 713C high-flow 10-blade turbine wheel
-
75mm turbine exducer
-
Titanium bullet nose nut
-
Fully rebuildable and upgradeable design
Performance Specifications
-
Minimum horsepower: 500 HP
-
Maximum horsepower: 1150 HP
-
Minimum engine displacement: 2.0L
-
Maximum engine displacement: 4.0L
Compressor Housing Specifications
-
Inlet size: 4 inches
-
Outlet size: 3 inches
-
A/R ratio: 0.85
-
Pressure port: 1/8 NPT
Compressor Wheel Specifications
-
Compressor inducer: 68mm
-
Compressor major diameter: 93mm
Bearing Housing Specifications
-
Oil feed: 1/8 NPT female
-
Oil drain flange threads: 8mm x 1.25
Turbine Wheel Specifications
-
Turbine inducer: 82mm
-
Turbine exducer: 75mm
Fitment
-
Universal performance turbocharger
-
Compatible with gasoline engines ranging from 2.0L to 4.0L
-
Designed for builds targeting 500–1150 HP
-
Suitable for street, track, and drag racing applications
-
Professional installation and proper tuning required
2-Year Warranty
All Comp Turbo turbochargers include a 2-year warranty.
What’s Covered
-
Defects in materials and workmanship
-
Repair or replacement during the warranty period at no additional cost
Warranty Terms
-
Valid for two years from the purchase date
-
Applies to turbochargers used with proper maintenance and operation
Comp Turbo ensures every turbo delivers reliable power, durability, and long-term performance for demanding street, track, and drag builds.
To ensure the highest quality, Comp Turbo kits are built to order. Most orders will take 3-5 weeks to ship but some kits can take longer. Once you place your order, the order will not be cancellable for any reason.
