Description

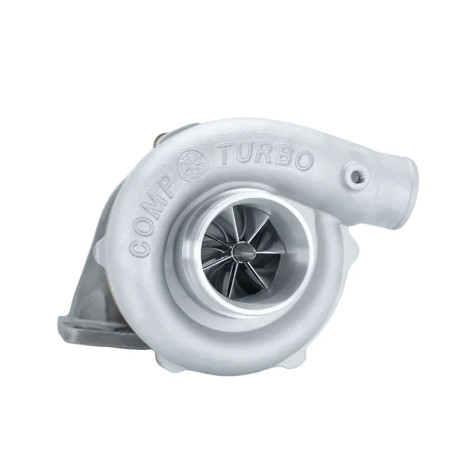

The Comp Turbo CT3R-5858 Dynamic 360° Journal Bearing Turbocharger is engineered to deliver reliable, responsive boost for street and track performance builds producing up to 700 horsepower. Featuring a durable and cost-effective 360° journal bearing system, this turbocharger offers excellent longevity, consistent oil control, and smooth operation under demanding conditions.
Designed for compact performance applications, the CT3R-5858 utilizes a CTR billet aluminum 7+7 extended tip compressor wheel paired with an Inconel 713C high-flow 10-blade turbine wheel. This combination provides efficient airflow, strong mid-range response, and dependable high-RPM performance.
Fully rebuildable and upgradeable, the CT3R-5858 is an ideal solution for enthusiasts seeking dependable boost performance with proven durability for daily driving, track use, or weekend racing.
Features
• Dynamic 360° journal bearing system for durable, cost-effective performance
• Designed for both street and track applications
• CTR billet aluminum 7+7 extended tip compressor wheel
• Inconel 713C high-flow 10-blade turbine wheel
• Titanium bullet nose nut
• Fully rebuildable and upgradeable
Power & Engine Specifications
• Minimum Horsepower: 445 HP
• Maximum Horsepower: 700 HP
• Minimum Engine Displacement: 2.0L
• Maximum Engine Displacement: 3.5L
Compressor Housing Specifications
• Inlet Diameter: 3.0 in
• Outlet Diameter: 2.0 in
• A/R Ratio: 0.60
• Pressure Port: 1/8 NPT
Compressor Wheel Specifications
• Compressor Inducer Diameter: 58 mm
• Compressor Major Diameter: 76 mm
Bearing Housing Fitting Threads
• Oil Feed Port: 1/8 NPT Female
• Oil Drain Flange Threads: 8 mm x 1.25
Turbine Wheel Specifications
• Turbine Inducer Diameter: 65 mm
• Turbine Exducer Diameter: 58 mm
2-Year Warranty
All Comp Turbo turbochargers include a 2-Year Warranty covering:
• Defects in materials and workmanship
• Repair or replacement at no additional cost during the warranty period
Warranty Terms
• Warranty coverage is valid for two years from the date of purchase
• Applies to turbochargers operated under proper installation, maintenance, and operating conditions
With this 2-Year Warranty, Comp Turbo delivers confidence, durability, and proven performance for street and track turbocharger applications.
To ensure the highest quality, Comp Turbo kits are built to order. Most orders will take 3-5 weeks to ship but some kits can take longer. Once you place your order, the order will not be cancellable for any reason.
