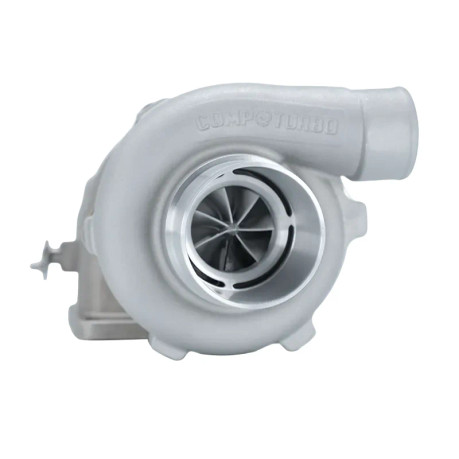

Comp Turbo CT2RX-4849 TRIPLEX CERAMIC BALL BEARING OIL-LESS WATER COOLED TURBOCHARGER (575 HP)

The Comp Turbo CT2RX-4849 Triplex Ceramic Ball Bearing Oil-Less Water-Cooled Turbocharger is a cutting-edge performance solution engineered to deliver up to 575 horsepower with exceptional reliability and versatility. This advanced turbocharger eliminates traditional oil feed and drain lines, reducing system complexity while retaining water cooling for effective thermal management under demanding operating conditions.

Utilizing Comp Turbo’s patented Triplex ceramic ball bearing system, the CT2RX-4849 delivers ultra-smooth operation, faster spool response, and increased durability compared to conventional bearing designs. Its oil-less configuration makes it especially well suited for engine bay, mid-mount, and remote-mount turbo systems, where oil routing can be challenging.

Constructed with a lightweight billet aluminum center section and high-flow compressor and turbine wheels, this turbocharger provides consistent airflow, rapid boost response, and long-term serviceability. Fully rebuildable and upgradeable, the CT2RX-4849 is designed to support both aggressive street builds and competitive motorsport applications.

Features

• Patented Triplex ceramic ball bearing oil-less water-cooled system for faster spool and enhanced durability

• Oil-less design eliminates traditional oil lines for simplified installation

• Engineered for high-performance street and track use

• Recommended for engine bay, mid-mount, and remote-mount turbo systems

• Lightweight billet aluminum center section

• CTRX billet aluminum ultra-slim hub 7+7 compressor wheel, 48 mm

• Inconel 713C high-flow 9-blade turbine wheel, 49 mm

• Standard rotation configuration

• Available with T2 and V-band inlet turbine housings

• Fully rebuildable and upgradeable design

• Water-cooled bearing housing with 3/8 NPT female inlet and outlet ports

• Integrated maintenance grease fitting

• Supports both horizontal and vertical installation

• Approximate weight: 10 lbs

Product Specifications

• Minimum Horsepower: 300 HP

• Maximum Horsepower: 575 HP

• Minimum Engine Displacement: 1.4 L

• Maximum Engine Displacement: 3.0 L

Compressor Housing Specifications

• Inlet Diameter: 3.0 inches

• Outlet Diameter: 2.0 inches

• A/R Ratio: 0.60

Compressor Wheel Specifications

• Inducer Diameter: 48 mm

• Major Diameter: 71 mm

Turbine Wheel Specifications

• Turbine Inducer Diameter: 54 mm

• Turbine Exducer Diameter: 49 mm

Fitment Information

• Universal oil-less turbocharger design

• Compatible with custom turbo systems within the following ranges:

• Engine displacement between 1.4 L and 3.0 L

• Power goals from 300 HP to 575 HP

• Suitable for engine bay, mid-mount, and remote-mount turbo configurations

• Final fitment depends on turbine housing selection, custom manifold, cooling system integration, and supporting modifications

Professional installation and proper engine tuning are strongly recommended.

Built-to-Order Notice

• All Comp Turbo turbochargers are built to order

• Typical production time is 2 to 3 weeks

• Rush orders may be requested during checkout

• Customer service will confirm production status and estimated ship date within 24 hours

Recommended Service Interval

• Normal street use: Apply 8 pumps of grease every 3,000 miles

• Extreme street use: Apply 8 pumps of grease every 1,500 miles

• Extreme drag racing use: Apply 8 pumps of grease prior to each race event

Warranty Information

All Comp Turbo turbochargers include a 2-Year Manufacturer Warranty.

Warranty Coverage

• Defects in materials and workmanship

• Repair or replacement of the turbocharger at no additional cost during the warranty period

Warranty Terms

• Warranty is valid for two years from the purchase date

• Applies only to turbochargers operated under proper maintenance and usage guidelines

Comp Turbo’s 2-year warranty reflects their commitment to quality, performance, and customer satisfaction.
