Description
The CANchecked Toyota A90/A91 GR Supra MFD32 Multi Function Display – 3.2" Gen2 is a vehicle-specific digital monitoring system designed for the Toyota GR Supra MK5. Manufactured in Germany, the MFD32 provides direct communication with the factory ECU through the vehicle's CAN Bus network, allowing real-time monitoring of engine, vehicle, and performance data.
The system features a high-resolution 3.2-inch TFT capacitive touchscreen integrated into a vehicle-specific bezel designed for the Supra's interior. The model-specific design provides a clean, OEM-style installation while giving drivers access to configurable digital gauges and performance information.
Using manufacturer-specific CAN protocols, the display can access a wide range of available vehicle data without requiring additional external modules for standard CAN Bus information. Depending on the vehicle configuration, the system can display temperatures, pressures, fueling parameters, driver inputs, engine data, and performance metrics.
The MFD32 supports up to 128 sensor values and allows up to 10 configurable display pages, with up to 64 widgets available per page. Using CANchecked's DSS (Display Setup Software), users can customize layouts, widgets, colors, graphics, warnings, and displayed vehicle information.
The system also includes four analog inputs for additional sensors, direct ethanol sensor compatibility, built-in Wi-Fi, data logging capabilities, and CAN switching functionality, making it suitable for street, performance, and track applications.
Fitment
Toyota A90 GR Supra MK5 – Left-Hand Drive (LHD)
Toyota A91 GR Supra MK5 – Left-Hand Drive (LHD)
Engine Compatibility:
- B58 6-Cylinder
- B48 4-Cylinder
Application: Toyota GR Supra MK5
Display: CANchecked MFD32 Gen2
Important: Compatibility and available data can vary depending on model year, installed control units, software version, and vehicle configuration. Verify compatibility with your specific Supra before ordering.

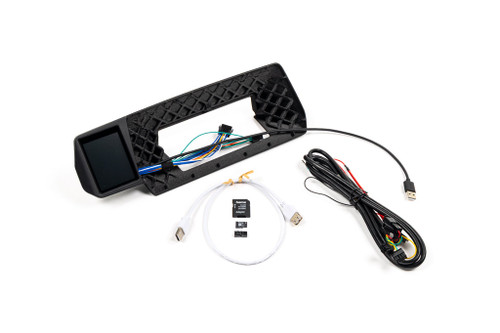

What's Included
- 1 × CANchecked MFD32 3.2" Gen2 Display
- 1 × Vehicle-Specific Toyota Supra MK5 Bezel
- 1 × Plug-and-Play Wiring Harness
- 1 × Pre-Configured TRI File for Sensor Data
- 1 × Mounting Hardware Kit
- 1 × Optional Anti-Reflective Film
Key Features
- 3.2-Inch TFT Touchscreen: High-resolution capacitive touchscreen provides an intuitive interface for monitoring vehicle data.
- Vehicle-Specific Design: Developed specifically for the Toyota A90/A91 GR Supra MK5.
- OEM-Style Integration: Includes a vehicle-specific bezel for a clean, integrated interior installation.
- Direct CAN Bus Communication: Communicates directly with the factory ECU using manufacturer-specific CAN protocols.
- Real-Time Data Monitoring: Provides access to available engine and vehicle data in real time.
- Up to 128 Sensor Values: Supports monitoring of up to 128 available sensor channels depending on vehicle configuration.
- Up to 10 Display Pages: Create multiple configurable pages for different driving and monitoring requirements.
- Up to 64 Widgets Per Page: Arrange multiple data displays on each configurable page.
- DSS Configuration: CANchecked DSS software allows customization of display layouts, widgets, colors, graphics, and settings.
- Four Analog Inputs: Supports additional analog sensors such as EGT and oil pressure sensors.
- Ethanol Sensor Compatibility: Provides direct compatibility with supported ethanol sensor inputs.
- Built-In Wi-Fi: Enables wireless configuration, logging, and supported updates.
- Diagnostic Trouble Code Functions: Can read and clear supported diagnostic trouble codes directly through the display.
- Performance Tracking: Built-in performance functions allow acceleration timing and vehicle performance monitoring.
- Custom Alerts: Configure warning thresholds and alerts for monitored parameters.
- External Shift Light Support: Compatible with supported external shift light modules.
- Plug-and-Play Installation: Supplied wiring harness simplifies installation.
- Made in Germany: Manufactured by CANchecked in Germany.
Specifications
- Brand: CANchecked
- Product: MFD32 Multi Function Display
- Generation: Gen2
- Display Size: 3.2 inches
- Display Type: TFT Capacitive Touchscreen
- Application: Toyota GR Supra MK5
- Chassis: A90 / A91
- Drive Configuration: LHD
- Communication: CAN Bus
- ECU Communication: Direct
- Sensor Capacity: Up to 128 values
- Display Pages: Up to 10
- Widgets: Up to 64 per page
- Analog Inputs: 4
- Ethanol Sensor Support: Yes
- Wi-Fi: Integrated
- Configuration Software: DSS Display Setup Software
- Data Logging: Supported
- CAN Switching: Supported
- Installation: Plug-and-Play
- Manufacturing Location: Germany
Display & Monitoring Functions
The MFD32 provides highly configurable digital displays for monitoring available vehicle and engine parameters.
Supported information can include:
- Engine temperatures
- Oil temperature
- Coolant temperature
- Intake air temperature
- Exhaust gas temperature
- Boost pressure
- Fuel pressure
- Rail pressure
- Fueling parameters
- Ethanol content
- RPM
- Vehicle speed
- Throttle position
- Steering angle
- Braking pressure
- Ignition timing
- Cylinder-related data
- Power and torque information
- Acceleration data
- Gear position
- Battery voltage
Available parameters depend on the vehicle's ECU, control units, software, and CAN data availability.
Custom Display Layouts
The MFD32 allows users to create personalized display layouts through CANchecked DSS Display Setup Software.
Users can configure up to 10 display pages, with up to 64 widgets per page. Pages can be customized with different gauge styles, widget sizes, colors, graphics, performance information, and warning functions.
Pre-configured layouts are included for quick setup, while advanced users can create custom displays for street driving, tuning, track use, or data monitoring.
CAN Bus Integration
The MFD32 communicates directly with the vehicle through the CAN Bus network using manufacturer-specific protocols.
This allows the display to access available ECU broadcast data and other vehicle parameters without relying solely on standard OBD diagnostic information. CANchecked's dedicated vehicle integration is designed to provide access to additional data where supported by the vehicle's internal communication networks.
The system also supports CAN switching and custom CAN messages for compatible applications.
Additional Sensor Inputs
Four integrated analog inputs allow the MFD32 to be expanded with additional sensors when the required vehicle data is not available through the factory CAN Bus.
Compatible sensor applications can include:
- EGT sensors
- Oil pressure sensors
- Additional temperature sensors
- Other supported analog sensors
The system also supports direct ethanol sensor integration for compatible applications.
Performance & Diagnostic Functions
The MFD32 includes built-in performance monitoring and diagnostic functions.
Performance tools can be used to measure acceleration times and monitor performance-related data. The display can also provide power, torque, RPM, speed, gear, and other available performance parameters.
Supported diagnostic functions allow users to read and clear diagnostic trouble codes directly from the display.
Installation
The CANchecked MFD32 is designed for a plug-and-play installation using the supplied vehicle-specific bezel and wiring harness.
The included bezel provides an integrated installation designed specifically for the Toyota GR Supra MK5 interior.
Installation and configuration should be completed according to CANchecked's vehicle-specific instructions. Verify the exact vehicle configuration and compatibility before installation.
Vehicle Compatibility & Data Availability
CANchecked products communicate directly with vehicles through the CAN Bus network. The amount of available information varies depending on the manufacturer, model, model year, installed control units, and software version.
Modern vehicles may provide limited information through standard OBD diagnostics, while dedicated CANchecked integrations can access additional parameters through internal vehicle communication networks.
Not every displayed value should be considered suitable for diagnostic or safety-critical purposes. Displayed information should not be used as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.
Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
