Description
The CANchecked FLP01 Pressure Sensor is a high-precision pressure monitoring solution designed for measuring oil pressure, fuel pressure, and water pressure in street, performance, and motorsport applications.
With a measurement range of 0–10 bar (0–145 psi), the FLP01 provides accurate pressure data for monitoring critical vehicle systems. Its production-grade sensing element is designed to deliver consistent measurement accuracy and stable output characteristics.
The sensor features an M10x1 external thread for straightforward installation and uses a simple three-wire electrical connection consisting of ground, signal, and 5V reference.
The FLP01 is designed for direct integration with CANchecked MFD15, MFD28, and MFD32 displays and can also be used with many compatible aftermarket ECUs and fuel-injection systems.
Fitment
Universal Application
The CANchecked FLP01 is a universal pressure sensor suitable for compatible automotive pressure-monitoring applications.
Compatible CANchecked Displays
- CANchecked MFD15
- CANchecked MFD28
- CANchecked MFD32
Typical Applications
- Engine Oil Pressure
- Fuel Pressure
- Water Pressure
- Performance Vehicle Monitoring
- Motorsport Applications
- Aftermarket ECU Systems
- Fuel Injection Systems
Verify electrical compatibility and sensor configuration with your specific display or ECU before installation.
Key Features
- 0–10 Bar Measurement Range: Measures pressure from 0 to 10 bar, equivalent to 0–145 psi.
- Oil Pressure Monitoring: Suitable for monitoring engine oil pressure.
- Fuel Pressure Monitoring: Suitable for compatible fuel-pressure applications.
- Water Pressure Monitoring: Can be used for compatible water-pressure monitoring.
- M10x1 External Thread: Provides a common threaded connection for automotive applications.
- High-Accuracy Sensor: Production-grade sensing element provides consistent pressure measurement.
- Three-Wire Connection: Uses ground, signal, and 5V reference connections.
- CANchecked Compatible: Designed for use with MFD15, MFD28, and MFD32 displays.
- Aftermarket ECU Compatible: Can be integrated with many compatible aftermarket ECUs and fuel-injection systems.
- Flexible Wiring: Included connector and pre-crimped wires simplify installation.
- Custom Wiring Support: Additional pins with sealing gaskets are included for custom crimping.
Specifications
- Brand: CANchecked
- Product: FLP01 Pressure Sensor
- Product Type: Oil / Fuel / Water Pressure Sensor
- Application: Universal
- Measurement Range: 0–10 bar
- Measurement Range: 0–145 psi
- Thread: M10x1 External
- Electrical Connection: 3-Pin
- Reference Voltage: 5V
- Calibration: 0V = -1.25 bar
- Calibration: 5V = 11.25 bar
- Compatible Displays: MFD15, MFD28, MFD32
- Application Type: Street / Performance / Motorsport
Pin Assignment
The FLP01 uses a three-pin electrical connection:
- Pin 1: Ground / GND
- Pin 2: Signal
- Pin 3: 5V Reference
The sensor should be wired according to the applicable CANchecked or ECU wiring configuration.
Calibration Curve
The FLP01 uses the following voltage-to-pressure calibration points:
- 0V: -1.25 bar
- 5V: 11.25 bar
The calibration curve allows the sensor signal to be interpreted by compatible CANchecked displays and aftermarket engine management systems.
CANchecked Integration
The FLP01 is designed for integration with CANchecked MFD15, MFD28, and MFD32 multifunction displays.
When properly configured, the sensor can provide real-time pressure information through the display's compatible analog sensor input.
The FLP01 can also be integrated with compatible aftermarket ECUs and fuel-injection systems when the required sensor calibration and electrical configuration are supported.

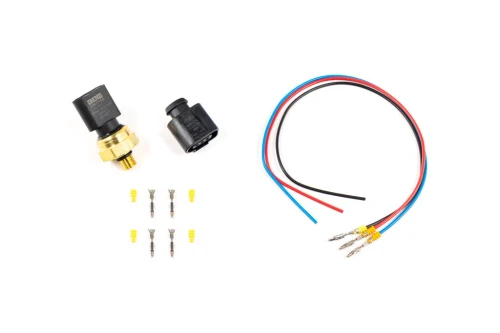

What's Included
- 1 × CANchecked FLP01 Pressure Sensor
- 1 × Connector Plug
- 3 × Pre-Crimped Connection Wires
- 4 × Pins with Sealing Gaskets for Custom Crimping
Installation
The FLP01 features an M10x1 external thread for installation into a compatible pressure-sensing location.
The included connector plug and pre-crimped wires simplify the electrical connection, while the additional pins and sealing gaskets allow custom wiring configurations where required.
Always verify thread compatibility, pressure-medium compatibility, electrical requirements, and sensor calibration before installation.
