Description
The CANchecked MFD32 Gen2 Multi Function Display is a vehicle-specific digital monitoring and diagnostic display designed for the Audi C7 (4G) A6/S6 and A7/S7 platforms. Manufactured in Germany, the MFD32 integrates directly into the factory air vent while providing access to extensive vehicle data, performance information, diagnostics, and customizable digital gauges.
The system features a high-resolution 3.2-inch touchscreen with intuitive swipe navigation, allowing drivers to move between multiple configurable display pages. The vehicle-specific vent assembly maintains usable airflow while integrating the display into the interior for a clean, OEM-style appearance.
Through direct CAN Bus communication and manufacturer-specific protocols, the MFD32 can access a wide range of available vehicle parameters from compatible control modules. This can include temperatures, pressures, fueling information, engine data, driver inputs, performance parameters, and other vehicle information.
The MFD32 is highly configurable through CANchecked's DSS Display Setup Software, allowing users to create custom display pages, adjust widget layouts, configure warnings, upload graphics and startup animations, and analyze logged vehicle data.
Additional functionality includes integrated data logging, performance timing, four analog inputs, ethanol content monitoring, CAN switching, custom CAN messages, and external shift light support, making the MFD32 suitable for daily-driven vehicles, modified street cars, and performance applications.
Fitment
Audi A6 C7 (4G)
Audi S6 C7 (4G)
Audi A7 C7 (4G)
Audi S7 C7 (4G)
Drive Configuration: Left-Hand Drive (LHD)
Application: Vehicle-specific MFD32 Gen2 display integrated into the factory air vent assembly.
Important: Verify your exact vehicle model, model year, control-unit configuration, and software version before ordering. Available vehicle data and functions may vary between applications.
What's Included

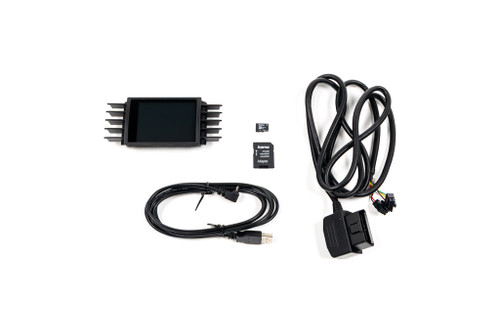

- 1 × CANchecked MFD32 Gen2 Display Integrated into Vehicle-Specific Vent Assembly
- 1 × Vehicle-Specific Connection Harness
- 1 × Quick Start Guide
- 1 × USB Data Cable
- 1 × Pre-Installed SD Card
- 1 × SD Card Adapter
- 1 × Anti-Reflection Display Film
Key Features
- 3.2-Inch Touchscreen Display: High-resolution touchscreen provides an intuitive interface for monitoring vehicle data.
- Vehicle-Specific Integration: Designed for compatible Audi C7 A6/S6 and A7/S7 applications.
- OEM-Style Air Vent Installation: Integrates into the factory air vent while maintaining usable airflow.
- Direct CAN Bus Communication: Accesses available vehicle data directly through the CAN Bus network.
- Manufacturer-Specific Protocols: Supports compatible diagnostic communication protocols.
- Custom Display Pages: Create personalized layouts for different driving and monitoring requirements.
- Up to 10 Display Pages: Configure multiple pages for different data views.
- Up to 64 Widgets Per Page: Arrange multiple data parameters within each display page.
- Performance Meter: Built-in acceleration timing functions for performance testing.
- Integrated Data Logging: Records supported vehicle data to the included SD card.
- Diagnostic Trouble Codes: Read and clear supported fault codes directly through the display.
- Automatic Dimming: Supports automatic display dimming with vehicle illumination on supported applications.
- Ethanol Monitoring: Supports direct ethanol content and temperature monitoring.
- Four Analog Inputs: Allows additional sensors to be connected for expanded monitoring.
- External Shift Light Support: Compatible with CANchecked external shift light modules.
- CAN Switching: Supports CAN Bus switching and custom CAN messages.
- DSS Configuration: Extensive customization through CANchecked Display Setup Software.
- Made in Germany: Designed and manufactured by CANchecked in Germany.
Specifications
- Brand: CANchecked
- Product: MFD32 Multi Function Display
- Generation: Gen2
- Display Size: 3.2 inches
- Display Type: High-Resolution Touchscreen
- Application: Audi C7 A6/S6/A7/S7
- Platform: C7 / 4G
- Drive Configuration: LHD
- Communication: CAN Bus
- Display Pages: Up to 10
- Widgets: Up to 64 per page
- Analog Inputs: 4
- Data Logging: Supported
- Storage: SD Card
- Ethanol Monitoring: Supported
- Diagnostic Functions: Read and clear supported fault codes
- Automatic Dimming: Supported on compatible applications
- CAN Switching: Supported
- Configuration Software: DSS Display Setup Software
- Installation: Vehicle-specific air vent assembly
- Manufacturing Location: Germany
Monitored Parameters
The MFD32 can provide real-time access to a wide range of available engine and vehicle parameters.
Supported parameters include:
- Oil temperature
- Coolant temperature
- Exhaust gas temperature
- Intake air temperature
- Boost pressure
- Fuel pressure
- Rail pressure actual and target
- Lambda values
- Fuel trims
- Engine RPM
- Vehicle speed
- Throttle position
- Ignition timing
- Cylinder correction values
- Torque output
- Gear position
- Battery voltage
Actual data availability depends on the vehicle's control modules, software version, CAN Bus configuration, and supported protocols.
Customization Features
The MFD32 provides extensive customization through the integrated touchscreen and CANchecked DSS Display Setup Software.
Users can:
- Create custom display pages
- Drag and drop widgets
- Adjust widget size and position
- Customize display colors
- Upload custom graphics
- Upload custom startup animations
- Configure alarms and warning notifications
- Use built-in CAN logging and data viewing
- Configure math channels and sensor calculations
- Use supported 2D and 3D mapping functions
This allows the display to be configured for street driving, performance monitoring, diagnostics, tuning, or track use.
CAN Bus & ECU Integration
The MFD32 communicates directly with the vehicle through the CAN Bus using manufacturer-specific protocols.
This allows the display to retrieve available information from compatible vehicle control modules and present it in real time. Dedicated CANchecked integrations can provide access to additional vehicle data beyond what may be available through standard OBD diagnostics.
Available parameters and functions vary depending on the vehicle manufacturer, model, model year, installed control units, and software version.
Performance & Data Logging
The integrated performance meter allows users to measure acceleration and monitor available performance parameters directly through the display.
The MFD32 also includes CAN logging and SD card data recording, allowing supported vehicle information to be captured and reviewed later through compatible CANchecked software tools.
Diagnostic Functions
The MFD32 supports reading and clearing diagnostic trouble codes on compatible protocols.
This provides convenient access to supported fault-code information directly from the integrated display without requiring a separate diagnostic display.
Diagnostic information should be considered supplemental and should not be relied upon as the sole source for vehicle maintenance, tuning, operation, or safety-related decisions.
Compatible CANchecked Accessories
The MFD32 is compatible with a range of CANchecked accessories, including:
- SLM08 External Shift Light Module
- ANC04 Analog Input Harness
- CBD08 CAN Distribution Hub
- NTC01 Temperature Sensor
- TCC01 Type-K Temperature Converter
- FLP01 Pressure Sensor
- BST10 Boost Pressure Sensor
These accessories can expand the display's sensor monitoring and functionality depending on the application.
Installation
The MFD32 is integrated into the vehicle-specific factory air vent assembly supplied with the product.
The included connection harness provides the required vehicle-specific connections for installation. The integrated vent design maintains usable airflow while providing a clean, factory-inspired appearance.
Installation should be performed according to CANchecked's vehicle-specific instructions, and compatibility should be verified before installation.
Vehicle Compatibility & Data Availability
CANchecked products communicate directly with vehicles through the CAN Bus network. As a general guideline, CAN Bus became widely available in production vehicles from approximately 2008 onward.
Compatibility and available data depend on the vehicle manufacturer, model, model year, installed control units, software version, and vehicle communication architecture.
Many modern vehicles provide limited information through standard OBD diagnostics. CANchecked's dedicated integrations can access additional vehicle information through internal vehicle communication networks where supported.
Not all displayed values are intended for diagnostic or safety-critical purposes. Displayed data should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.
Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
