Modern performance tuning increasingly depends on accurate data. Whether you're monitoring ethanol content in a flex-fuel MINI or looking for a cleaner way to connect a JB4PRO system to a G-Chassis BMW, Burger Tuning offers hardware designed to make these installations more straightforward and functional.
The BMS CANFlex Flex Fuel Ethanol Content Sensor and BMS JB4PRO Direct ECU CANbus Harness serve different purposes, but both are designed around the same principle: providing tuning systems with cleaner access to important vehicle data while simplifying installation.
BMS CANFlex Flex Fuel Ethanol Content Sensor for 2025+ Gen 3 B48 MINI
The Burger Tuning BMS CANFlex Flex Fuel Ethanol Content Sensor Kit is designed specifically for 2025+ Gen 3 B48-powered MINI models running E85, ethanol blends, or varying fuel mixtures.
Rather than relying on assumptions about the fuel being used, CANFlex provides real-time ethanol content monitoring through the CANFlex or JB4PRO app. The system uses a genuine Continental ethanol content sensor to measure the actual ethanol concentration in the fuel and communicates that information through CANbus and Bluetooth.
An integrated LCD display also provides a convenient way to access the sensor's information, while the included 5V output provides compatibility with legacy applications.
Real-Time Ethanol Content Monitoring
Ethanol content can vary considerably between fuel blends and even between different E85 fill-ups. For performance applications using ethanol-based fuel, knowing the actual fuel composition can be valuable when evaluating or adjusting a vehicle's tune.
The CANFlex system continuously measures ethanol concentration and makes the information available through compatible BMS applications. This eliminates much of the guesswork associated with estimating the ethanol content of a particular fuel mixture.
For MINI owners using a compatible JB4 tuning system, the CANFlex system can integrate the ethanol data into the tuning environment, providing additional information for ethanol-blend performance applications.
Continental Ethanol Sensor and CANbus Integration
At the heart of the CANFlex system is a genuine Continental ethanol content sensor. The sensor measures the fuel's ethanol concentration and communicates the information to the BMS CANFlex ECA.
The system supports multiple communication methods, including:
- CANbus
- Bluetooth
- Integrated LCD display
- 5V output for legacy applications
This combination provides flexibility in how ethanol-content information is monitored and accessed.

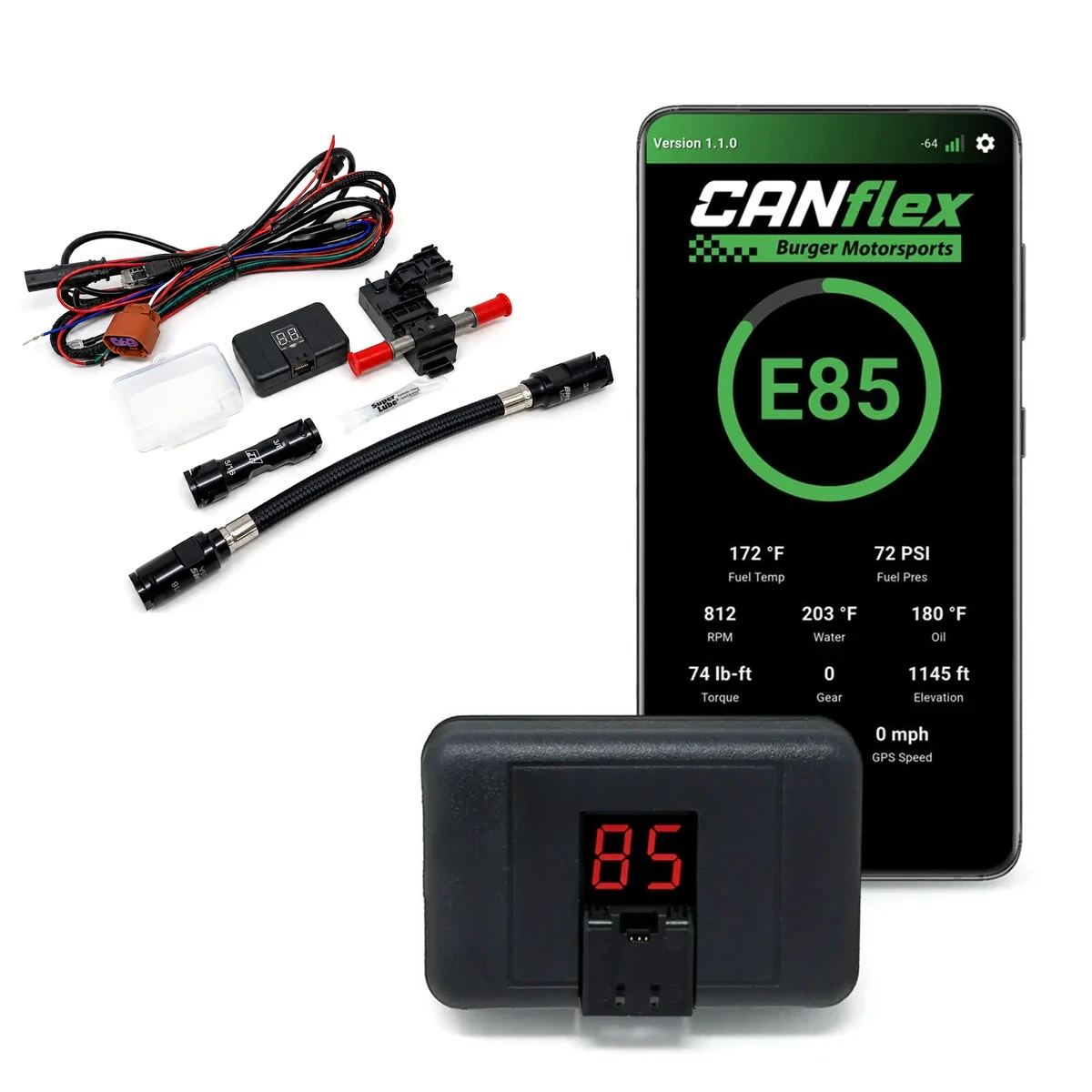

Complete Installation Kit
The CANFlex kit is supplied with the hardware required for a clean installation, including custom billet fuel fittings, steel-braided fuel line, an extension harness, and installation accessories.
The complete package includes:
- Genuine Continental ethanol content sensor
- BMS Bluetooth CANFlex ECA with LCD display
- Custom billet fuel fittings
- Steel-braided fuel line
- 5/16-inch to 3/8-inch billet fitting
- 4-foot custom extension harness
- BMS CANFlex Bluetooth app
- CAN LED silicone cover
- Super Lube®
Installation typically takes approximately 30 minutes, although actual installation time can vary depending on the vehicle and installation conditions.
2025+ Gen 3 B48 MINI Fitment
The CANFlex system is designed for the following 2025+ Gen 3 B48 MINI applications:
- MINI Cooper Hardtop 4-Door (F65)
- MINI Cooper S Hardtop 4-Door (F65)
- MINI Cooper Hardtop 2-Door (F66)
- MINI Cooper S Hardtop 2-Door (F66)
- MINI John Cooper Works Hardtop (F66)
- MINI Cooper Convertible (F67)
- MINI Cooper S Convertible (F67)
- MINI John Cooper Works Convertible (F67)
- MINI Countryman S ALL4 (U25)
- MINI John Cooper Works Countryman ALL4 (U25)
For JB4-equipped vehicles, the manufacturer specifies connecting the blue wire to position #16 on the JB4 25-pin harness and selecting WMI Ethanol Setup option 0. Always verify the latest installation instructions and wiring requirements before installation.
BMS JB4PRO Direct ECU CANbus Harness
The Burger Tuning BMS JB4PRO Direct ECU CANbus Harness takes a different approach to CANbus integration, providing compatible G-Chassis BMW applications with a direct connection between the JB4PRO system and the vehicle's ECU.
Instead of routing a CAN/OBDII cable through the firewall to the passenger compartment, this harness connects directly to the vehicle's CANbus at the ECU.
The result is a cleaner engine-bay installation with less wiring and easier access to the vehicle's OBDII port.
Direct ECU CANbus Connection
The primary advantage of the harness is its direct connection to the vehicle's PTCAN.
By connecting the JB4 directly at the ECU, the harness eliminates the need to route additional CAN/OBDII wiring through the firewall. This keeps the installation contained within the engine bay and reduces installation complexity.
The direct PTCAN connection also provides a higher CANbus sample rate, allowing the JB4 to access CAN data directly at the ECU.
For compatible applications, this can provide a cleaner and more efficient method of integrating the JB4PRO system with the vehicle's CANbus network.
Keep the OBDII Port Available
Another advantage of the Direct ECU CANbus Harness is that it leaves the vehicle's factory OBDII port available.
This can be particularly useful for vehicles where the OBDII connection is needed for diagnostic equipment, data logging, MHD, or compatible scan tools.
The harness also supports passive CANbus mode, allowing the JB4 to use read-only CAN channels for basic tuning functionality while another device occupies the OBDII port.
Passive CANbus mode does have limitations. Certain channels, including AFR and timing corrections, are not available when operating in passive mode.
Plug-and-Play Installation
The JB4PRO Direct ECU CANbus Harness is designed as a plug-and-play solution, eliminating the need for extensive wiring modifications or routing cables into the vehicle's cabin.
Key advantages include:
- Direct ECU CANbus connection
- Direct PTCAN access
- Plug-and-play installation
- No CAN/OBDII cable through the firewall
- Wiring remains in the engine bay
- Higher CANbus sample rate
- Factory OBDII port remains available
- Active and passive CANbus functionality
The result is a cleaner installation that can significantly reduce the time and complexity normally associated with connecting a JB4 system to the vehicle's CANbus network.
Firmware and Configuration Requirements
The Direct ECU CANbus Harness requires compatible JB4 or JB4PRO firmware and configuration settings.
For supported JB4PRO B58/S58 systems, the manufacturer specifies:
- Option 11 ON to enable the Direct ECU CANbus connection
- Option 12 ON to operate the JB4PRO in passive CANbus mode
Firmware and configuration requirements can vary by application, so compatibility should be verified before installation.
G-Chassis BMW Compatibility
The Direct ECU CANbus Harness is intended for compatible G-Chassis BMW models equipped with supported JB4 or JB4PRO systems.
It is specifically relevant to compatible B58 and S58 JB4PRO applications, provided the required firmware and configuration support are available.
Before ordering, verify the BMW chassis, engine, JB4 or JB4PRO version, firmware, and harness compatibility for the specific vehicle.
Product link: https://x-ph.com/burger-tuning-bms-jb4pro-direct-ecu-canbus-harness/?showHidden=true&ctk=81e90244-04c1-462f-9648-5b080b0f03bc
Burger Tuning Solutions for Modern Performance Builds
The CANFlex Flex Fuel Ethanol Content Sensor and JB4PRO Direct ECU CANbus Harness address two different tuning requirements.
For 2025+ Gen 3 B48 MINI owners, CANFlex provides real-time ethanol-content information using a genuine Continental sensor, Bluetooth connectivity, CANbus communication, and JB4 integration.
For compatible G-Chassis BMW JB4PRO applications, the Direct ECU CANbus Harness provides a cleaner ECU-level CANbus connection while keeping the factory OBDII port accessible for diagnostics and logging.
Both solutions are designed to make modern performance tuning more connected, data-driven, and easier to integrate.
