Description

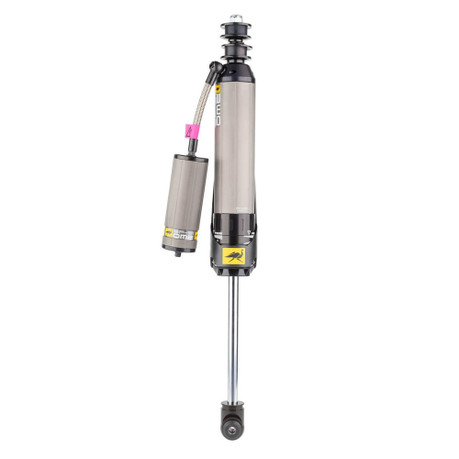

The ARB BP-51 Right Rear Bypass Shock Absorber (arbBP5160020R) is engineered for superior ride quality and control across any terrain for 2007–2021 Toyota Tundra models. Designed and tested in Australia's toughest environments, these internal bypass, position-sensitive shocks feature 51mm bores and remote reservoirs to deliver high-end off-road capability and plush on-road comfort.
Easily adjust compression and rebound settings on the vehicle to fine-tune your ride for load, terrain, and personal preference. The shock's aluminum body and anodized finish offer unmatched heat dissipation and corrosion resistance. Manufactured entirely in-house by ARB, the BP-51 series guarantees precise fitment and top-tier performance.
Key Features & Benefits:
- Designed specifically for Toyota Tundra (2007–2021)
- Internal bypass and position-sensitive damping
- On-vehicle adjustable compression and rebound for custom tuning
- 51mm bore for maximum oil volume and damping control
- Remote reservoir improves cooling and shock performance under load
- Bolt-on installation—no modifications required
- Constructed from 6061-T6 aluminum, hard anodized for durability
- Polyethylene shaft guard and rubber bushings for added protection
- Designed, tested, and manufactured in-house by ARB's Old Man Emu team
- Backed by a 3-Year Warranty
Technical Specifications:
- Position: Rear Right
- Color: Grey
- Material: 6061-T6 Aluminum
- Open Length: 651mm
- Closed Length: 405mm
- Bore Diameter: 51mm
- Design: BP-51 Internal Bypass with Remote Reservoir
- Construction: Polyethylene Shaft Guard, Rubber Bushings
- CA Prop 65 Warning: No
- Warranty: 3 Years
Vehicle Fitment:
Compatible with the following Toyota Tundra models from 2007–2021, including:
- Base / SR / SR5 / Limited / Platinum / 1794 Edition / Nightshade / Trail
- TRD Off-Road / TRD Off-Road Premium / TRD Pro / TRD Sport / TRD Sport Premium
- Engines: 4.0L V6, 4.6L V8, 4.7L V8, 5.7L V8 (Gasoline & Flex Fuel)
- 2-door and 4-door configurations
Note: This is the passenger-side (right) rear shock. For the driver-side, see part number arbBP5160020L.
