Description
The ARB Air Locker Differential (arbRD217) is the ultimate traction solution for Land Rover LR3 and LR4 owners looking to conquer the toughest terrains. With the flick of a switch, the Air Locker provides instant full axle lock, delivering 100% traction precisely when you need it—without compromising on-road drivability.
The pneumatically activated system locks the front axle’s differential gears, forcing both wheels to rotate at the same speed. This gives you maximum traction to tackle rocks, mud, and challenging off-road conditions. When disengaged, the Air Locker operates like a standard open differential, allowing smooth and safe everyday driving.
Engineered for extreme durability, the ARB Air Locker features a patented timed locking mechanism, ultra-reliable seals designed to withstand the harshest climates, and minimal moving parts for maximum longevity.

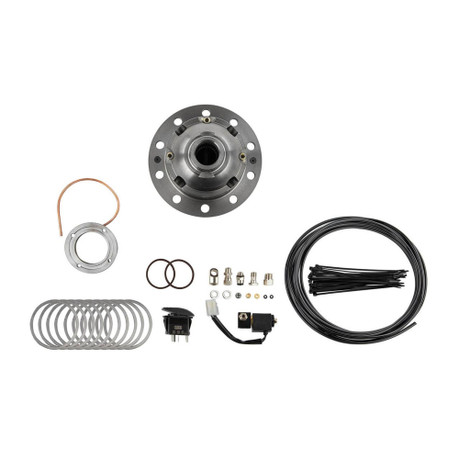

This kit includes the Air Locker differential, activation switch, solenoid valve, air line, and bulkhead fitting. An air compressor is required for operation and is sold separately.
Note: Not compatible with vehicles equipped with OE locking differentials.
Features & Benefits
- Provides 100% traction on demand without affecting drivability or causing drivetrain wear
- Instantly activated via dash-mounted switch—no need to exit the vehicle
- Ultra-durable, two-piece design with minimal moving parts for maximum reliability
- Patented timed locking mechanism for fast engagement and disengagement
- Steel-reinforced, elastomer bonded annular seal for extreme temperature resistance
- Pneumatically operated for precise control
- Reduces the need for aggressive driving, minimizing vehicle and environmental damage
- Includes Air Locker differential, activation switch, solenoid valve, air line, and bulkhead fitting
- Air compressor required (sold separately)
- 5-year ARB limited warranty
Specifications
- Color: Silver
- Material: Steel
- Axle: Land Rover
- Position: Front
- Type: Clamshell-type, Independent Front Suspension (IFS)
- Shaft Diameter: 1.24 in
- Spline Count: 29
- Gear Ratio: All
- Prop 65: No
- Warranty: 5 Years
Vehicle Fitment
Compatible with the following Land Rover models:
- 2005-2009 Land Rover LR3 HSE 4.4L V8
- 2005-2009 Land Rover LR3 SE 4.0L V6
- 2005-2009 Land Rover LR3 SE 4.4L V8
- 2006 Land Rover LR3 Base 4.0L V6
- 2009 Land Rover LR3 HSE Lux 4.4L V8
- 2010-2013 Land Rover LR4 HSE 5.0L V8
- 2010-2013 Land Rover LR4 SE 5.0L V8
- 2011-2013 Land Rover LR4 Base 5.0L V8
- 2012-2013 Land Rover LR4 HSE Lux 5.0L V8
- 2010 Land Rover LR4 V8 5.0L V8
- 2014 Land Rover LR4 Base 3.0L V6
- 2014 Land Rover LR4 HSE 3.0L V6
- 2014 Land Rover LR4 HSE Lux 3.0L V6
