Description
The AEM Water/Methanol Injection System Advantage
Water/methanol injection for forced induction (turbocharged or supercharged) gas-powered race engines is a proven means for effectively reducing engine inlet air temperatures and suppressing harmful detonation. This allows racers to reliably increase boost and advance ignition timing—without using high-octane racing fuel—for power gains of up to 20%. AEM’s Water/Methanol Injection Systems utilize the most robust hardware combined with more advanced features than any other comparably priced water/methanol system.AEM offers a few different water/methanol controller designs for gas vehicles:
- One is boost dependent for forced induction vehicles up to 35 PSI of boost (kit PN 30-3300). The Boost Dependent controller has an on-board manifold absolute pressure (MAP) sensor with a molded-in nipple for a boost hose pickup.
- The second controller (Kit PN 30-3350) features a multiple input design that enables users to install AEM’s Water/Methanol Injection Kit on ultra-high boost vehicles (above 35 PSI) using a 0-5v voltage-based external MAP sensor.
- The last is a Multi-Input controller and is dependent on an external 0-5v voltage-based external MAP sensor, a frequency based input for Injector Duty Cycle (IDC), frequency-based mass airflow (MAF), or a 0-5v voltage-based MAF.
Key Features :
- Multi-Input (0-5v/frequency) progressive controller design features large adjustment knobs, integrated plug for harness connection, integrated fuse, covered status light and test button for enhanced splash resistance and mounting tabs.
- Wiring harness is terminated with a positive-lock connector on one end with color-coded wires to ease installation, integrated pump ground circuit and additional wire for optional on/off fluid solenoid.
- “Boost Safe” failsafe output included (for complete failsafe under all conditions, see our Water/Methanol Failsafe Device)
- Heavy-duty high-pressure injection pump features integral fittings, a Santoprene diaphragm and EPDM seals to resist corrosion. Our pump maximizes line pressure for optimum atomization and its quiet, smooth operation is almost undetectable
- Precision-machined billet-aluminum injector with integral check valve
- Three interchangeable injector nozzles to cover a wide variety of HP levels (250cc/min, 500 cc/min & 1,000cc/min)
- 1.15 gallon tank with anti-starvation reservoir, integral conductive low-fluid sensor and positive lock connector (tank-less systems available)
- 20 feet of injection tubing included
- LED dash light for system status and low fluid warning

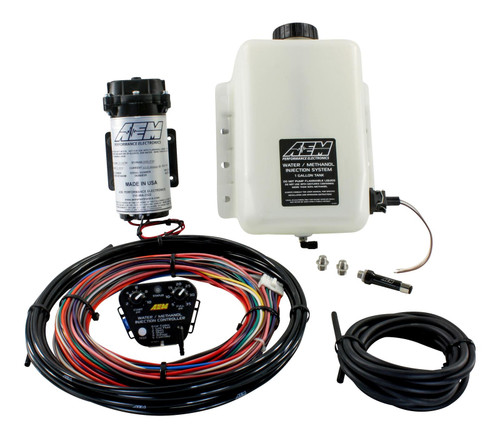

This is for the controller that operates depending on MAF/P Signal, comes with a 1-Gallon tank, and has a fluid level sensor.
This kit can also be used on NA vehicles
Note from AEM : For optimum results, all Water/Methanol Injection Systems and gauges should be run with an AEM inline filter (AEM part # 30-3003)
