Description

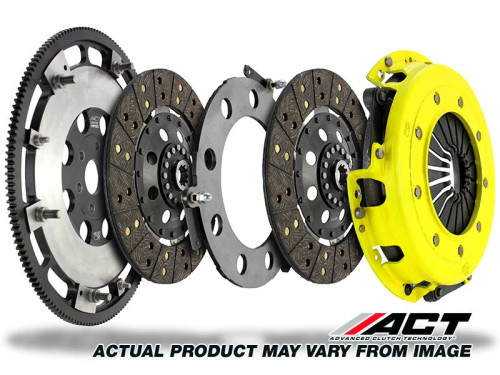

ACT Race Twin Disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. Exclusive four-stage, heat treating process performed on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. ACTs 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and trouble-free service. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT Twin Disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may included a pilot bearing/bushing and release bearing.
Details:
Use: Recommended for race use only
Feel: A stiff to very stiff pedal feel; aggressive engagement with stock to low to moderate gear rattle
Life: Offers twice the number of disc surfaces for better wear, heat capacity and longer life
Quality: Premium ceramic friction materials provide low wear rates and high heat tolerance. Pressure plate and Flywheel are dynamically computer balanced for trouble-free installation and smooth operation at high RPM
Specifications:
Part Number: T3R-F02
Torque Capacity: 1515 ft/lbs
Clamp Load Increase: 206%
Spline Count: 10
Spline Size: 1 1/16"
Disc Diameter: 266 mm
Disc Diameter: 10. inches
Weight: 45.7 lbs
Warranty: 90 days
