Description
We are excited to introduce our state-of-the-art display for Toyota GR Yaris models. This groundbreaking display provides comprehensive access to all crucial vehicle data, reading directly through the Can-Bus protocol and presenting it on our reliable MFD32 display. The Toyota GR Yaris Display seamlessly integrates into your vehicle's design and comes with a custom-made bezel that perfectly complements the aesthetics.
Key Highlights:
- Seamless Integration: Fits perfectly into the vehicle design.
- Extensive Sensor Data: Reads data from up to 128 sensors.
- Customizable Display Modes: 10 individual display modes via our DSS - Display Setup Software.
- Pre-Installed Modes: Ready to use with pre-configured display modes.
- Easy Installation: Plug-and-play with our included cable kit.
- Additional Inputs: 4 extra analog inputs for monitoring exhaust temperature, oil pressure, and more.
- Ethanol Sensor Compatibility: Integrated option for connecting an ethanol sensor.
- Optimal Readability: Optional glare protection for clear visibility.
- Diagnostics-Friendly: Easy sensor querying at eye level.
- Data Logging: Continuous or on-demand data logging capabilities.
Additional Features:
- Performance Tracker: Measure acceleration times with our performance widget (0-100, 100-200, 0-200).
- Data Logging: Log all data on the internal SD card, either on request or continuously. All data from your last drive is stored.
- Customizable Alerts: Activate and customize alerts, such as exceeding an exhaust temperature of 900 degrees.
- Analog Inputs: Connect additional sensors for advanced monitoring functions.
- Error Reading/Deletion: Read and clear engine control unit errors promptly.
- Personalization: Customize the startup screen and choose from various widgets.
- Compatibility: Fits all Toyota GR Yaris models with left-hand drive (LHD). A right-hand drive (RHD) version is also in development.
Comprehensive Vehicle Data Access:
We provide a pre-configured TRI file for your display, listing all queryable sensors, including:
- Temperatures: Engine coolant, intake air, exhaust, transmission, rear differential, and tire temperatures.
- Pressures: Boost, ambient, oil, and tire pressures.
- Lambda/Fuel Mixture: Lambda target/actual values, short-term/long-term lambda adaptation, MAF, engine load, and torque.
- Driver Dynamics: Brake pressure, vehicle speed, throttle angle/pedal position.
- Other Metrics: RPM, total ignition timing, gear, and battery voltage.
Analog Inputs:
Add additional sensors like oil temperature, fuel pressure, oil pressure, exhaust temperature, and an ethanol sensor for flex-fuel applications.
Compatibility with Toyota GR Yaris Models:
The display frame fits all Toyota GR Yaris models. A version for RHD is also available. We also support Syvecs and Motec engine control units for more detailed data.
Package Contents:
Each delivery includes:

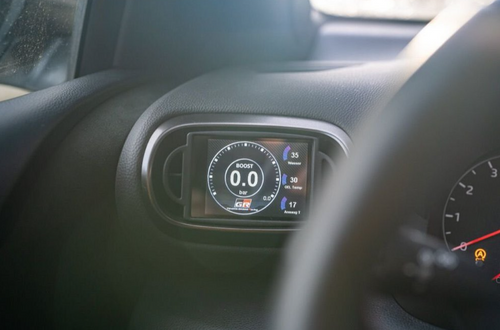

- Integrated MFD32 Gen2 data display in the ventilation grille
- Vehicle-specific connection cable
- Quickstart guide
- USB data cable
- SD card (pre-installed in the display)
- SD card adapter
- Display screen protector (to prevent reflections)
Connection and Expansion:
You can connect various sensors via the four analog inputs, supporting both linear 0-5V and NTC sensors. Our in-house Wagner Tuning Display sensors are pre-integrated into the TRI/TRX files, requiring only connection:
- AIN1: Temperature sensor
- AIN2: Exhaust temperature probe Type K
- AIN3: Pressure sensor 0-10 bar
- AIN4: Boost pressure sensor 0-5.5 bar absolute
Connect our external flash module with 8 LEDs directly to the display, indicating RPM limits in configurable colors. The ethanol sensor connects directly to the display with a required 10K pull-up resistor between 5V and signal.
Advanced Features:
Utilize Math Channels to link sensor data and User Tables to create additional sensors with 2D or 3D maps.
Optional Accessories:
- WT24000 SLM08: External flash module
- WT22100 CBD08: Eight-channel CAN distributor
- WT22902 NTC01: Temperature sensor for liquids 1/8 NPT
- WT22903 TCC01: Type K converter 0-1250°C
- WT22901 FLP01: Pressure sensor 0-10 bar (145psi) M10x1
- WT22900 BST01: Pressure sensor 0-5.5 bar absolute (80psi)
Installation Guide:
An illustrated installation guide is provided for a seamless installation process.
Unlock the Full Potential of Your Toyota GR Yaris:
Experience the ultimate in performance monitoring and customization with our advanced display. If you have any questions or need further information, we are here to assist you.
