Description
Lift your 2023+ Ford F-250 or F-350 4WD from 3.5" to 5.5" with the premium S&B Lift Kit. Designed for Tremor and standard models, this kit includes everything needed to improve ride quality, towing performance, and off-road capability. Optional Torxz Traction Control Bars can be added for ultimate towing stability.

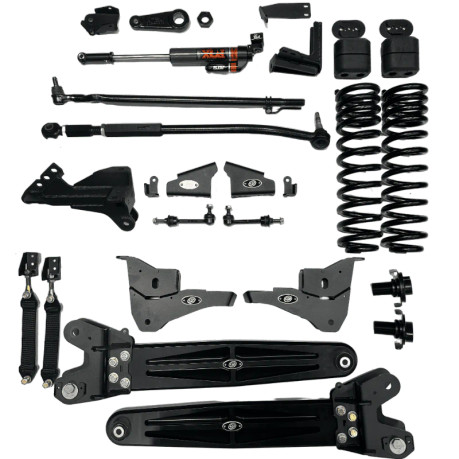

Kit Includes:
-
Track Rod Relocation Bracket (105017)
-
Adjustable Track Rod (105068)
-
Sway Bar Relocation Kit (105029)
-
Steady Track System (105101)
-
Drag Link (KI1225-00)
-
ATS Adjustable Stabilizer (KI9010-00)
-
Upgraded Bump Stops (105053)
-
Adjustable Coil Levelers (105020)
-
2.5/3.5" Lift Coil Springs (105082)
-
Radius Arm Drops (105131)
-
Billet Radius Arms (105112)
-
Limit Strap Kit (105048)
-
Brake Line Relocation (601086)
Optional Add-Ons:
-
Weight Scale Relocation Kit (105118)
-
Torxz Traction Control Bars (102101/102102)
-
Lift Blocks (101144/101145/101146)
-
U-Bolts (260315/270317/270319/270321)
-
Shock Packages (106701/106703)
-
Dual Steering Stabilizer Kit (101532 + KI9011-00 x2)
Key Components and Benefits:
Track Rod Bracket & Adjustable Track Rod:
-
Corrects frame side mounting for 3.5-5.5" lifts
-
3/8” steel bracket, powder-coated for corrosion resistance
-
Adjustable track rods with OEM ball joint and bushing for durability and easy alignment
Radius Arm Drops:
-
Strongest design on the market with 4 points of attachment
-
Corrects radius arm mounting for lifted trucks
Billet Radius Arms:
-
CNC-machined 6061 aluminum for strength and tire clearance
-
Adjustable caster cam bolts for alignment control
-
Mounting tab for S&B Limit Strap Kit
Weight Scale Relocation Kit (Optional):
-
Required for trucks with factory weight scale system
-
Fully adjustable rod system for lift height
-
Brackets for manual adjustment or weight scale deletion
S&B Limit Strap Kit:
-
Prevents spring loosening on extended shocks
-
Includes frame and radius arm brackets, tab bolts, and pull-through installation
Sway Bar Relocation:
-
Required for front lifts over 2.5"
-
Maintains sway bar performance while allowing increased tire clearance
Steady Track System:
-
Eliminates bump steer and improves handling
-
Includes FOX ATS Adjustable Stabilizer, drag link, and pitman arm replacement
-
Fully adjustable for ride tuning
Coil Springs & Adjustable Levelers:
-
Adjustable Levelers provide up to 2.5" lift
-
Coil Springs provide 3.5" lift for non-Tremor, 2.5" for Tremor models
-
Adjustable front lift height between 3.5" and 5.5"
Upgraded Bump Stops:
-
Adapter plate mounts larger oval bump stops
-
Maintains suspension travel and performance
Torxz Traction Control Bars (Optional):
-
Controls axle wrap for improved acceleration and braking
-
Uses urethane bushings without limiting travel or shock loading
Lift Blocks:
-
Available in 4", 5", and 6"
-
Includes bump stop and air bag pads
U-Bolts:
-
Select proper length based on block height
-
3/4" thread for longer U-Bolts; drilling required
Shock Packages:
-
Steady Valve 2.5" FOX HTO or FOX 2.5" Performance Elite adjustable shocks
-
Reservoir mounting bracket included for Performance Elite package
Dual Steering Stabilizer Kit:
-
Heavy-duty 5/8" U-bolts and 1/4" steel construction
-
Compatible with Fox IFP Stabilizers
-
Recommended for trucks running 37"+ tires
Vehicle Fitment:
-
2023-2026 Ford F-250 – 6.7L Diesel
-
2023-2026 Ford F-350 – 6.7L Diesel
-
2023-2026 Ford F-250 – 7.3L Gas
-
2023-2026 Ford F-350 – 7.3L Gas
With the S&B 3.5-5.5” Lift Kit, your 2023+ Ford F-250 or F-350 4WD gains unmatched lift, superior ride quality, and enhanced towing and off-road performance, making it the ultimate upgrade for any Super Duty owner.
