Description
Raise the front of your 2023+ Ford F-450 up to 2.5" while leaving the rear height unchanged with the S&B 2.5" Standard Lift Kit. This kit improves ride quality and suspension performance while maintaining proper alignment and handling. Optional Torxz Traction Control Bars and Dual Steering Stabilizer kits are available for enhanced towing and off-road capability.

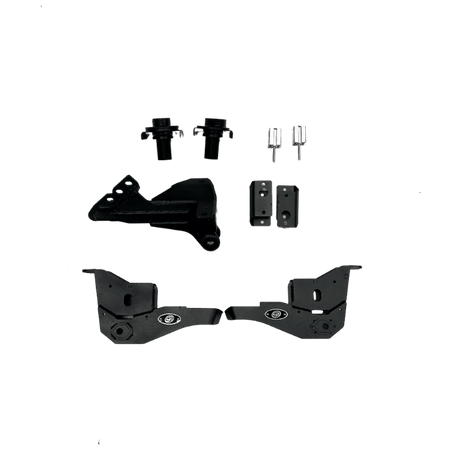

Kit Includes:
-
Track Rod Relocation Bracket (105084)
-
Sway Bar Relocation Kit (105106)
-
2" Bump Stop Drops (101365)
-
Adjustable Coil Levelers (105020)
-
Radius Arm Drops (105129)
-
Brake Line Drop Bracket Kit (601086)
Optional Add-Ons:
-
Weight Scale Relocation Kit (105118)
-
Torxz Traction Control Bars (102102)
-
Shock Packages (105074/106700/FOX Performance Elite)
-
Dual Steering Stabilizer Kit (101534 + KI9016-00 x2)
-
Coil Springs (105082)
Key Components and Benefits:
Track Rod Bracket (105084):
-
Corrects frame side mounting for 2-3" front lifts
-
Retains factory track rod
-
3/8” steel, powder-coated for strength and corrosion resistance
Radius Arm Drops (105129):
-
Corrects radius arm mounting for 2.5" lifts
-
Metal insert allows axle installation in neutral or 0.5" forward position for extra tire clearance
-
Four-point frame attachment for maximum strength
Adjustable Coil Levelers (105020):
-
Provides up to 2.5" front lift
-
Works with factory and aftermarket coils
-
Allows precise leveling or lift adjustment
Bump Stop Drops (101365):
-
Lowers OEM bump stops by 2" for increased suspension travel
Sway Bar Relocation Kit (105106):
-
Relocates sway bar 1-3/4" for improved travel
-
Maintains sway bar performance at lifted height
Weight Scale Relocation Kit (105118, Optional):
-
Required for trucks with factory weight scale system
-
Adjustable system for lift height and headlight alignment
Shock Packages (Optional):
-
OEM shocks with extensions (105074)
-
Steady Valve 2.5” FOX IFP shocks custom valved
-
FOX 2.5” Performance Elite fully adjustable with reservoir
Torxz Traction Control Bars (102102, Optional):
-
Eliminates axle wrap for better braking and acceleration
-
Urethane bushings prevent travel restriction or frame shock loading
Dual Steering Stabilizer Kit (101534, Optional):
-
Adds two 11.1" travel stabilizers
-
Recommended for trucks with 35"+ tires
-
Compatible with Fox IFP stabilizers
Coil Springs (105082, Optional):
-
Provides ~3" front lift with softer than stock spring rate
-
Can be combined with adjustable levelers for more lift without upgrading to a 3.5"-5.5" kit
Vehicle Fitment:
-
2023-2026 Ford F-450 4WD – All Models
The S&B 2.5" Standard Lift Kit for 2023+ F-450 delivers precise leveling, improved ride quality, and enhanced towing and off-road capability, making your truck more capable, comfortable, and ready for any adventure.
